Overview
- Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
- Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
- Resists cracking and provides excellent impact resistance
- Lighter-weight than fiberglass
- Recyclable
- Easy, dustless in-field modifications using standard tools
- Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
- Removable snap-hinge cover allows for easy access to cover and body for modifications
- Molded layout grid on inside of body and solid covers assists with component mounting
- Molded-in embosses for rear panel mounting
Specifications
Aluminum Panel | A10P10AL |
Application | Controls and Drives;Corrosive Environments |
Color | Gray |
Color | Light Gray |
Color Code | RAL 7035 |
Cover Style | Solid |
Depth | 162 mm |
Depth | 6.38 in |
Finish | Smooth Matte |
Height | 10.04 in |
Height | 44 IN |
Ip Rating | IP66/IP67 |
IP Rating | IP66 |
Material | Polyester |
Modification Services | Yes |
Mounting Type | Wall Mount |
Nema Rating | Type 4X |
NEMA Rating | 4X |
NEMA Rating | 4X;corrosion-resistant |
Panel Size | 8.75 x 8.88 in |
Panel Size | 72.00 x 72.00 in |
Product Family | PolyPro |
Protection Rating | NEMA Type 12 |
Series | PolyPro |
Size | 10.04" H x 10.04" W x 6.38" D |
Size | 10.04x10.04x6.38 inches |
Size | 10.04x10.04x6.38 |
Size | 10.05x10.05x6.38 in |
Steel Panel | A10P10 |
Thickness | 0.15 in |
Thickness | 51.40mm (2.024") |
Type | Fiberglass and Thermoplastic Wall Mounted Industrial Enclosures |
Type Number | Type 13 |
Weight | 4.6 lb |
Width | 10.04 in |
Width | 23 IN |
Package Dimensions (L x W x H) | 12.1 IN x 11.5 IN x 8.1 IN |
Package Dimensions (L x W x H) | 30.734 cm x 29.21 cm x 20.574 cm |
Package Weight (Imperial) | 4.600 L |
Package Weight (Metric) | 2.087 kg |

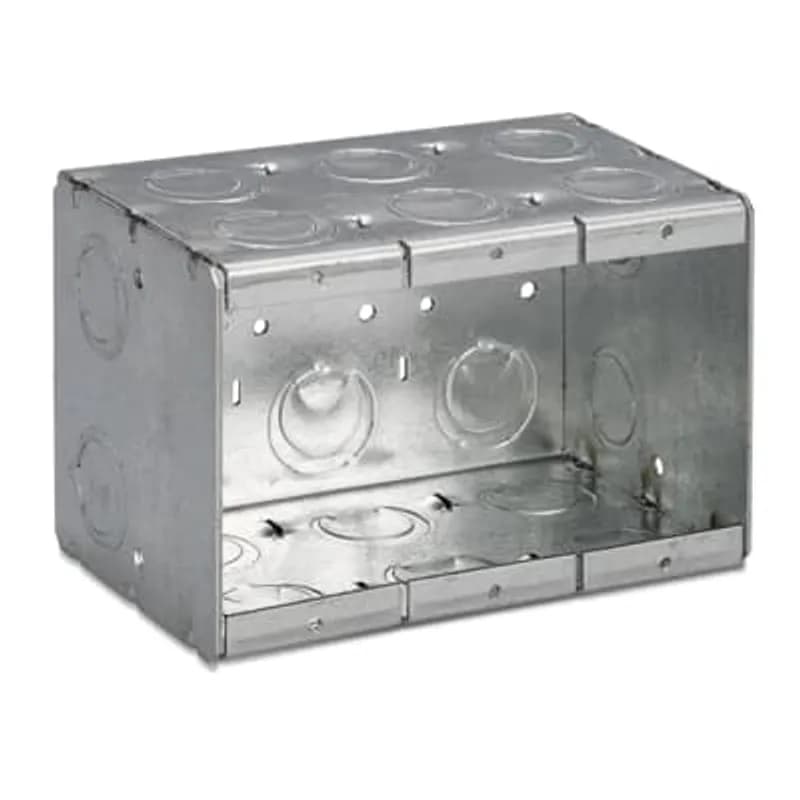

3MB-P
Three Gang Masonry Box, 71.0 Cubic Inches, 3-3/4 Inches Long x 5-1/2 Inches Wide x 3-1/2 Inches Deep, 1/2 Inch and 3/4 Inch Concentric Knockouts, Galvanized Steel, Welded Construction, with #12 AWG Solid Ground Wire Pigtail, For use with Conduit
How to Install the A10106PHC Controller
This guide provides step-by-step instructions for installing and configuring the A10106PHC Controller, ensuring proper grounding and connections.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the controller
Secure the A10106PHC Controller to the DIN rail using the integrated clips. Ensure the controller is level and firmly attached.
- Ground the equipment
Connect the grounding wire to the grounding bushing inside the enclosure. Ensure all metallic portions of the controller are properly grounded according to the National Electrical Code.
- Connect the conduit
Attach the conduit hubs to the conduit before connecting them to the enclosure. Ensure that all connections are secure and that the grounding continuity is maintained.
