Woodhead CA3006-39 Quick-Change® Field Attachable 4 Pole
Alternate Item Number: 1300700022
UPC: 786788046026
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 4-pole configuration
- 32.0A current rating
- 600V AC/DC operating voltage
- Accommodates 14-8 AWG wire sizes
- Cable diameters from .43 to .82 inches
Specifications
Amperage Rating | 30 A |
Brand Name | Woodhead |
Conductor Range | None |
Conductor Range, Maximum | None |
Conductor Range, Minimum | None |
Connection | External Thread |
Connection Type | Field Attachable |
Environmental Conditions | IP67 |
Poles | 4 Pole |
Poles | 4 |
Series | Quick-Change® |
Sub Brand | Quick-Change |
Temperature Rating | None |
Temperature Rating, Maximum | None |
Temperature Rating, Minimum | None |
Type | Field Attachable Connector |
Voltage Rating | 600V AC |
Voltage Rating | 600V AC/DC |
B202000N2
Brad® mPm® DIN Valve Connector, Type A, 2 Pole, Terminal No Tails, Black, Nitrile Gasket with IP67 Screw
PMINHW-34MFF-T-2M-C011
MIN Power Distribution Series , 3 Pole, Male to Female "T" with 7/8" Female drop cable, 2m, 14awg, 30A/18A, Black, TPE, TC-ER, FT4
T4112002041-000

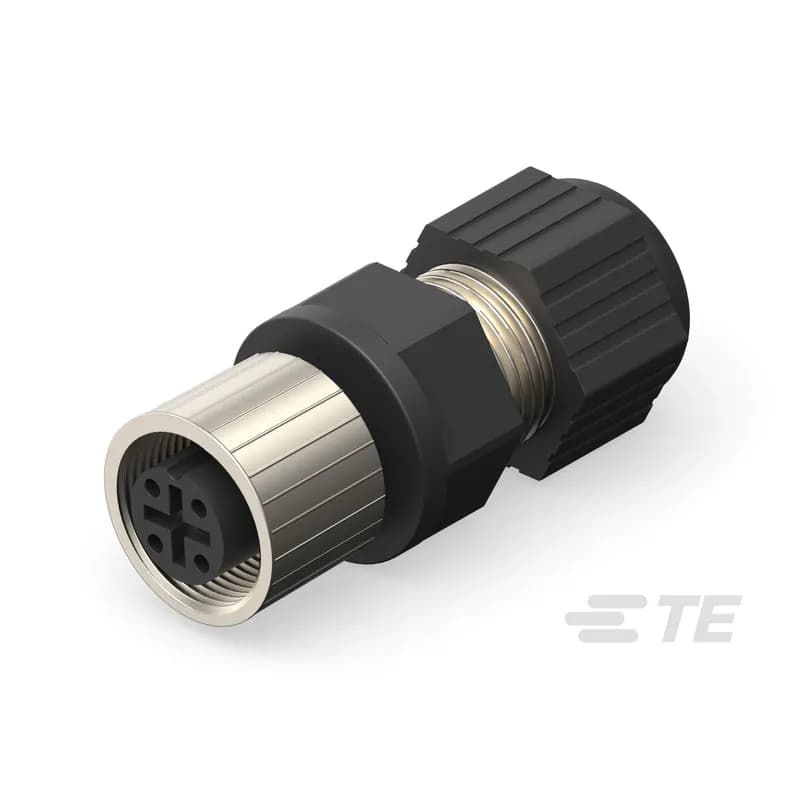

4 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, Unplated, M12 Connector
W08006H08M020
Ultra-Lock® (M12) Single-Ended Cordset, 8 Poles, Male (Straight) to Pigtail, 24 AWG, PUR Cable, 2.0m (6.56') LengthFrequently Asked Questions
What is the maximum voltage this connector can handle?
The connector has a maximum voltage rating of 600V AC.
What is the maximum current per contact for this connector?
Each contact on this connector can handle a maximum current of 30.0A.
What is the IP rating for the Brad Quick-Change connector?
This connector has an IP67 rating.
What materials are the contacts and coupling nut made of?
The contact material is Brass, and the coupling nut is Nickel-plated Brass.
What is the connector body and mating plating material?
The connector body is made of Nylon, and the mating plating is Silver.
