Woodhead C28300N0S - mPm® DIN Valve Connector, Type A, 3 Pole, Terminal No Tails, Black Silicone Gasket
Woodhead

C28300N0S

Alternate Item Number: 1212010030

UPC: 884982017405

Documents & Media
Technical DrawingSpecification Sheet

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The Woodhead mPm® DIN Valve Connector (SKU: C28300N0S) is a Type A, 3-pole field-wireable connector designed for reliable valve actuation and control circuits in industrial environments. This connector eliminates pre-attached wires with its 'Terminal No Tails' design, enabling direct termination and reducing installation time by up to 40% compared to traditional connectors. The polyamide body and copper alloy contacts with silver plating ensure durability against mechanical stress and corrosion, while the black silicone gasket delivers IP65 ingress protection against dust and moisture when properly installed. With a maximum voltage rating of 250V AC/DC and an operating temperature range of -25°C to 90°C (-13°F to 194°F), this connector meets EN 175301-803 standards for solenoid valve applications. Ideal for hydraulic/pneumatic systems, automation, and process control, the C28300N0S provides a cost-effective, UL-recognized solution for secure electrical connections in demanding industrial settings.
  • Type A, 3-pole field-wireable connector with no pre-attached wires (Terminal No Tails)
  • IP65 ingress protection with black silicone gasket for dust/moisture resistance
  • Polyamide body with copper alloy/silver-plated contacts for corrosion resistance
  • Operating range: -25°C to 90°C (-13°F to 194°F), 250V AC/DC max
  • UL-recognized, conforms to EN 175301-803 for solenoid valve applications

Specifications

Amperage Rating
16 A
Brand Name
Woodhead
Color
Black
Conductor Range
None
Conductor Range, Maximum
None
Conductor Range, Minimum
None
Connection
External Thread
Connection Type
Terminal No Tails
Environmental Conditions
IP65,IP67
IP Rating
IP65
Material
Polyamide, Copper Alloy with Silver Plating
Poles
3
Series
mPm®
Sub Brand
mPm
Temperature Rating
-40°C to +125°C
Temperature Rating, Maximum
257 F
Temperature Rating, Maximum
125 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 °C
Temperature Rating, Minimum
-40 C
Type
Field Attachable Connector
Voltage Rating
250 V AC/DC
mPm® DIN Valve Connector, Form A, PG11 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket and Screw, Bulk Pack Mounted

C18311N21

mPm® DIN Valve Connector, Form A, PG11 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket and Screw, Bulk Pack Mounted
mPm® DIN Valve Connector, Form A, PG9 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket and Screw, Bulk Pack Mounted

C18309N21

mPm® DIN Valve Connector, Form A, PG9 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket and Screw, Bulk Pack Mounted
mPm® DIN Valve Connector, Form C, PG7 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket, Bulk Pack Mounted

C05307N62

mPm® DIN Valve Connector, Form C, PG7 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket, Bulk Pack Mounted
mPm® DIN Base, Form A, B28 Base, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket with Screw

B283000N2

mPm® DIN Base, Form A, B28 Base, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket with Screw

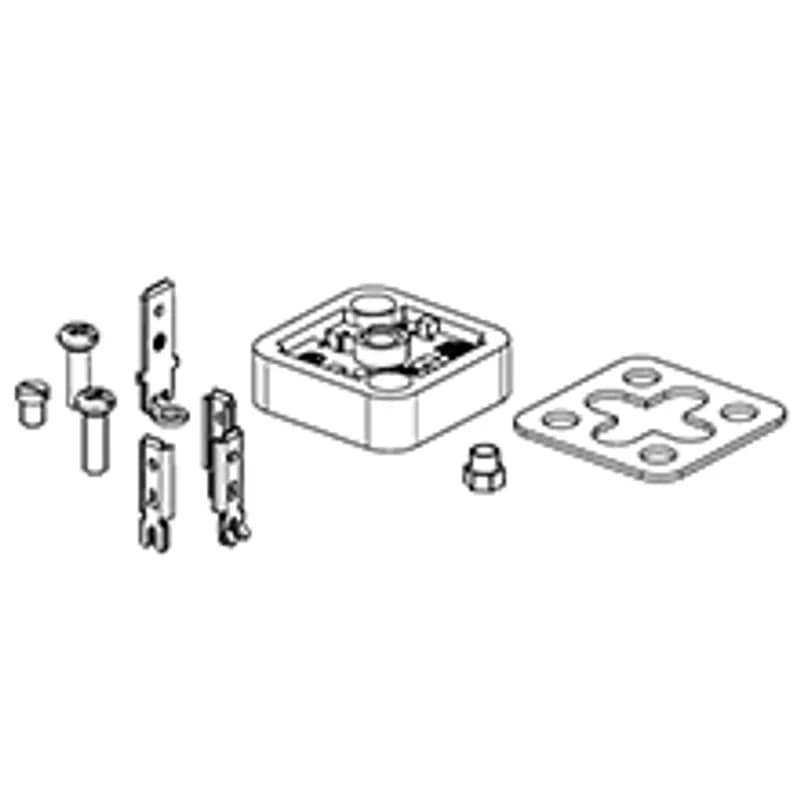

mPm® DIN Base, Form A, B20 Base, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket with Screw

B203000N2

mPm® DIN Base, Form A, B20 Base, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket with Screw
Brad® mPm® DIN Valve Connector, Type A, 2 Pole, Terminal No Tails, Black, Nitrile Gasket with IP67 Screw

B202000N2

Brad® mPm® DIN Valve Connector, Type A, 2 Pole, Terminal No Tails, Black, Nitrile Gasket with IP67 Screw
mPm® DIN Valve Connector, Form A, PG11 Internal Threads, 2 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket and Screw, Bulk Pack Mounted

C18211N21

mPm® DIN Valve Connector, Form A, PG11 Internal Threads, 2 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket and Screw, Bulk Pack Mounted
mPm® DIN Valve Connector, Black, Form A, PG9 Internal Threads, 2 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket and Screw, Bulk Pack Mounted

C18209N22

mPm® DIN Valve Connector, Black, Form A, PG9 Internal Threads, 2 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket and Screw, Bulk Pack Mounted
mPm® DIN Valve Connector, Form C, PG7 Internal Threads, 2 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Flat Gasket, Bulk Pack Mounted

C05207N62

mPm® DIN Valve Connector, Form C, PG7 Internal Threads, 2 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Flat Gasket, Bulk Pack Mounted

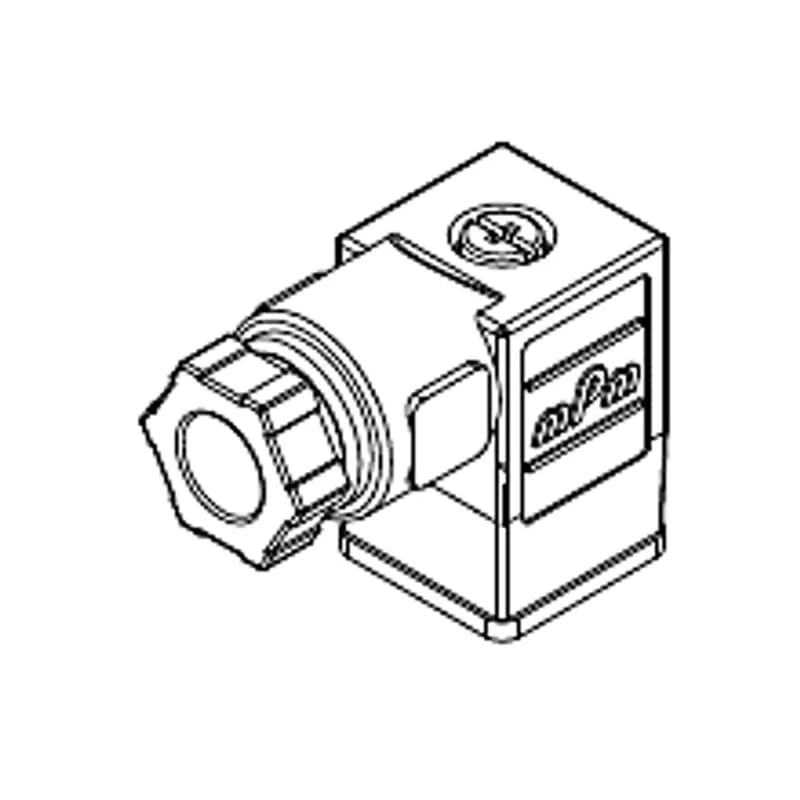

mPm® DIN Valve Connector, Form C - Industrial, PG7 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Flat Gasket and Screw, Bulk Pack Mounted

C19307N62

mPm® DIN Valve Connector, Form C - Industrial, PG7 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Flat Gasket and Screw, Bulk Pack Mounted

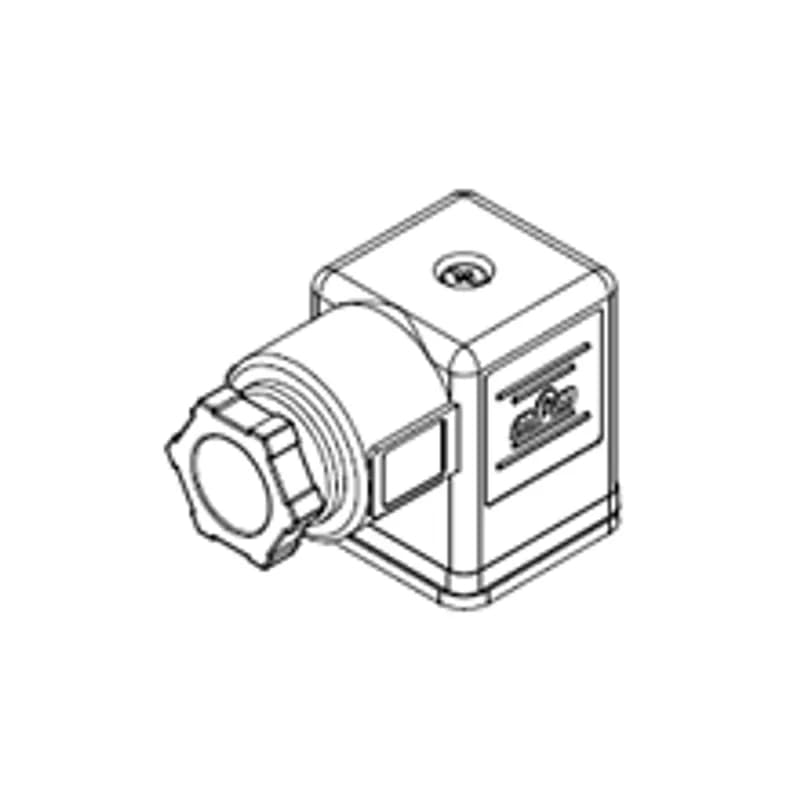

mPm® DIN Valve Connector, Form A, PG9 Internal Threads, 3 Pole Plus Ground, Black Nitrile Gasket, Bulk Pack Mounted
