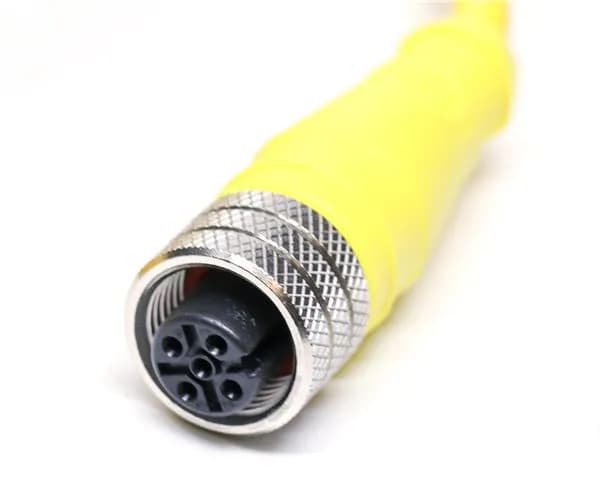

Woodhead 803000D01M050 - MIC 3P FP 5M #22AWG BRD PVC
Woodhead

803000D01M050

Alternate Item Number: 1200650176

UPC: 78678875952

Contact for Pricing

Overview

The Woodhead MIC 3P FP 5M #22AWG BRD PVC cordset (SKU: 803000D01M050) is a 3-pole female straight connector designed for industrial signaling applications. This cordset features a durable PVC jacket and a 5-meter cable length, providing flexibility and durability in demanding environments. The connector includes a die-cast zinc coupling nut and gold over palladium/nickel-plated copper alloy contacts for reliable signal transmission. A nylon plug face and nitrile rubber O-ring ensure environmental sealing against moisture and dust. The #22 AWG wire gauge is optimized for low-power industrial signaling, making it ideal for automation, control systems, and machinery interfaces. Compatible with Woodhead Mini-Change series connectors, this cordset meets rigorous industrial standards for signal integrity and mechanical durability.
  • 3-pole female straight connector for industrial signaling
  • 5-meter PVC-jacketed cable with #22 AWG wire gauge
  • Die-cast zinc coupling nut and gold-plated contacts for reliable transmission
  • Nylon plug face and nitrile rubber O-ring for environmental sealing
  • Compatible with Woodhead Mini-Change series connectors

Specifications

Connection Type
Female Connector
Material
PVC
Poles
3P
Series
MINI-CHANGE
Size
5 m
