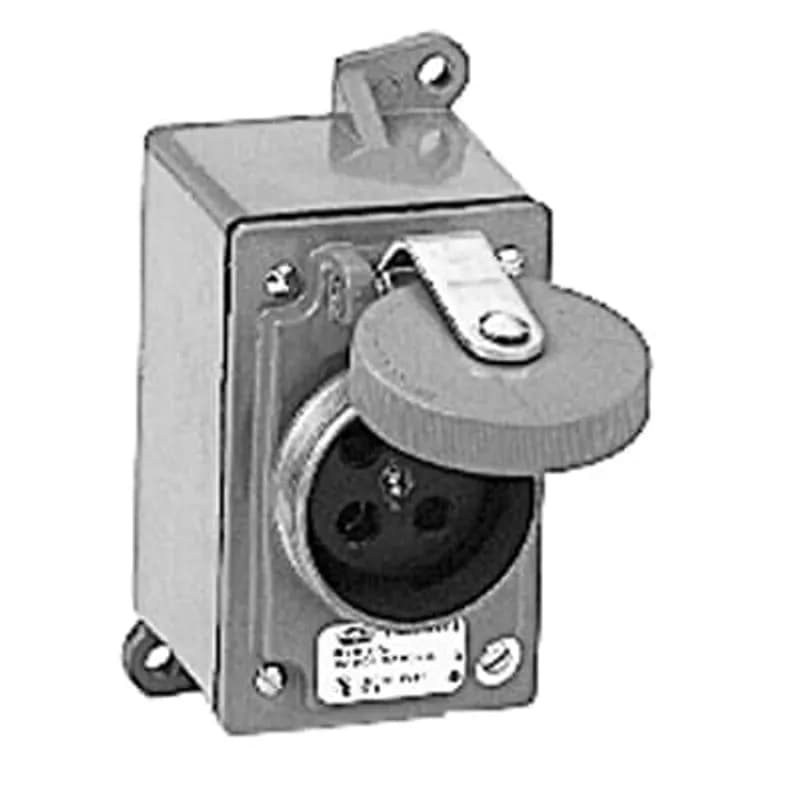

Woodhead 69W48 Watertite® Receptacle with Locking Blade, Single Flip Coverplate, 2 Pole/3 Wire, NEMA…
Alternate Item Number: 1301470169
UPC: 786788715755
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- NEMA L6-30 configuration rated for 250V and 30A current
- 2-pole/3-wire design with ground wire for safety compliance
- Locking blade mechanism prevents accidental disconnections
- Single flip coverplate provides dust and moisture protection (IP67 rated)
- Screw terminal connection for secure and stable electrical contact
Specifications
Amperage Rating | 30 A |
Brand Name | Woodhead |
Current Rating | 30 A |
Environmental Conditions | IP67 |
Nema Rating | L6-30 |
Number Of Poles | 2-pole/3-wire |
Number of Poles | 2;3-wire |
Poles | 2P+G |
Series | Watertite |
Sub Brand | Watertite |
Type | Receptacle |
Voltage Rating | 250 V |
Package Weight (Imperial) | 1.000 L |
Package Weight (Metric) | 0.454 kg |
SP279
Wall Plate Screw, #6-32 size, Oval head, 1 in. length, White head color, Slotted drive type, Steel, Zinc Plated finish, 100 per pack
B118A
One-Gang Nail-On New Work Outlet Box, Volume 18 Cubic Inches, Length 3-3/4 Inches, Width 2-1/4 Inches, Depth 2-7/8 Inches, Color Blue, Material PVC, Mounting Means Captive Nails
A414
One-Gang Box Cover, Volume 8.1 Cubic Inches, 4 Inches Square, Raised 1-1/4 Inch, Color Blue, Material Non-Metallic
SC100RR
One-Gang Low-Voltage Old Work Bracket, Length 4.32 Inches, Width 2.52 Inches, Depth 1.66 Inches, Color Orange, Material Non-Metallic
A410R-CAR
One-Gang Box Cover, Volume 3.5 Cubic Inches, 4 Inches Square, Raised 1/2 Inch, Color Blue, Material Non-Metallic
B232ACP
Two-Gang Nail-On New Work Outlet Box, Volume 32 Cubic Inches, Length 3-3/4 Inches, Width 4 Inches, Depth 3 Inches, Color Blue, Material PVC, Mounting Means Captive Nails
IPLMD350-6
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
Frequently Asked Questions
What is the NEMA configuration for this receptacle?
The NEMA configuration for this receptacle is NEMA L6-30.
What is the maximum voltage this receptacle can handle?
The maximum voltage this receptacle can handle is 250V.
What is the maximum current per contact for this device?
The maximum current per contact for this device is 30.0A.
What is the IP rating of this Watertite receptacle?
The IP rating of this Watertite receptacle is IP67.
Does this receptacle have a GFCI feature?
No, this receptacle does not have a GFCI feature.
What type of coverplate does this receptacle have?
This receptacle has a single flip coverplate.
How many poles and wires does this receptacle have?
This receptacle has a 2-pole/3-wire configuration.
Is this a locking blade receptacle?
Yes, this receptacle features a locking blade.
What is the gender of this receptacle?
The gender of this receptacle is female.
What agency certifications does this product have?
This product has CSA LR6837 and UL E68122 agency certifications.
