Overview

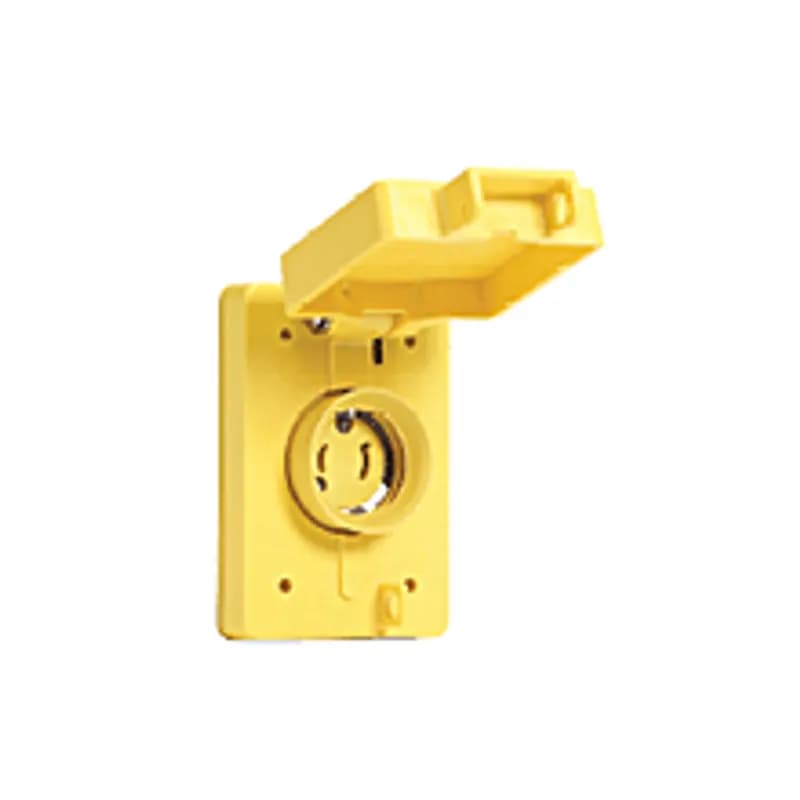

- NEMA-L2-20 locking receptacle rated 250V, 20A, 2-pole/2-wire
- Flip coverplate protects contacts from moisture, dust, and debris
- F2 body size (½" cord grip) with tri-drive terminal screws for easy wiring
- Nickel-plated brass contacts and stainless steel screws for corrosion resistance
- Meets NEMA 1/3/4/4X/5/6/6P/12 and IP55–IP67 ingress protection standards
- UL E68122, CSA LR6837, and NSF/ANSI/3-A 14159-1 certified for food & beverage and industrial use
Specifications
Amperage Rating | 20.0A |
Amperage Rating | 20 A |
Brand Name | Woodhead |
Environmental Conditions | IP67 |
Nema Rating | NEMA-L2-20 |
Number Of Poles | 2-pole/2-wire |
Number of Poles | 2;2-wire |
Poles | 2P/2W |
Series | Watertite |
Sub Brand | Watertite |
Type | Inlet |
Voltage Rating | 250V |
Voltage Rating | 250 V |
Package Weight (Imperial) | 1.000 L |
Package Weight (Metric) | 0.454 kg |
