Overview
- NEMA L22-30, 3-Phase 480V, 4-Pole/5-Wire configuration
- NEo-TEX® Paracril OZO rubber housing for superior abrasion and chemical resistance
- Floating blade construction for self-alignment and reduced wear
- Tri-drive wire screw terminals for versatile screwdriver compatibility
- Captive, tri-drive stainless steel speed screw for easy assembly and durability
Specifications
Amperage Rating | 30 A |
Brand Name | Woodhead |
Environmental Conditions | None |
Nema Rating | NEMA L22-30 |
Number Of Poles | 4-pole/5-wire |
Number of Poles | 4 |
Poles | 4P/5W |
Series | Safeway |
Sub Brand | Safeway |
Type | Connector |
Voltage Rating | 480 VAC |
Voltage Rating | 3Ø 480V |
Package Weight (Imperial) | 1.437 L |
Package Weight (Metric) | 0.652 kg |
29W82
Watertite® Connector with Locking Blade, 4 Pole/5 Wire, NEMA L22-30, 3ø 480V, Cord Grip Body Size F4
29W83MB
Watertite® Connector for Male Receptacle with Locking Blade, Single Flip Coverplate, 4 Pole/5 Wire, Neman L23-30, 480V, 3ø, F4

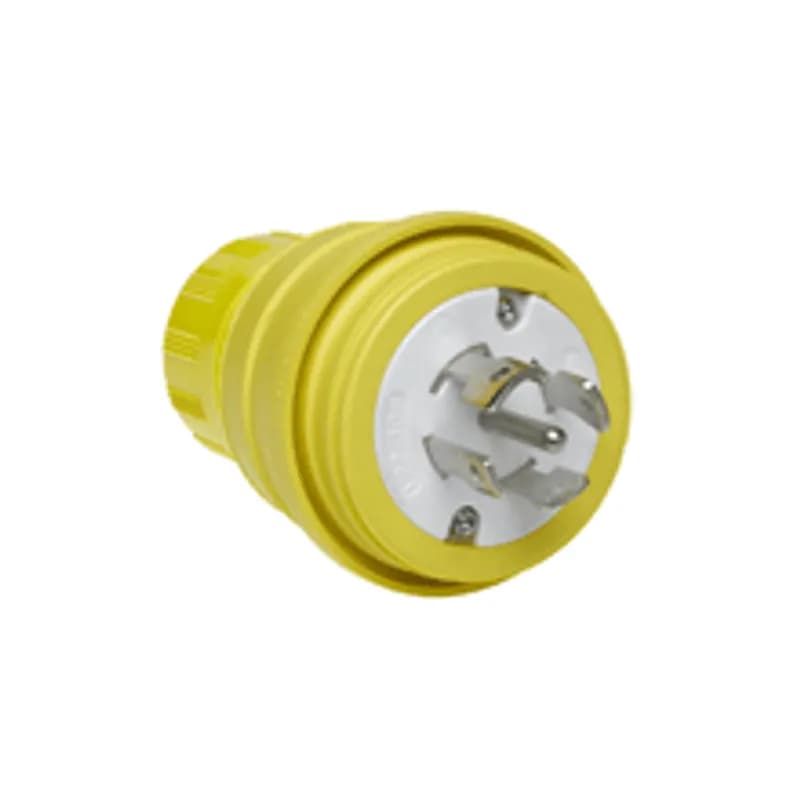

28W82
