Contact for Pricing
Overview

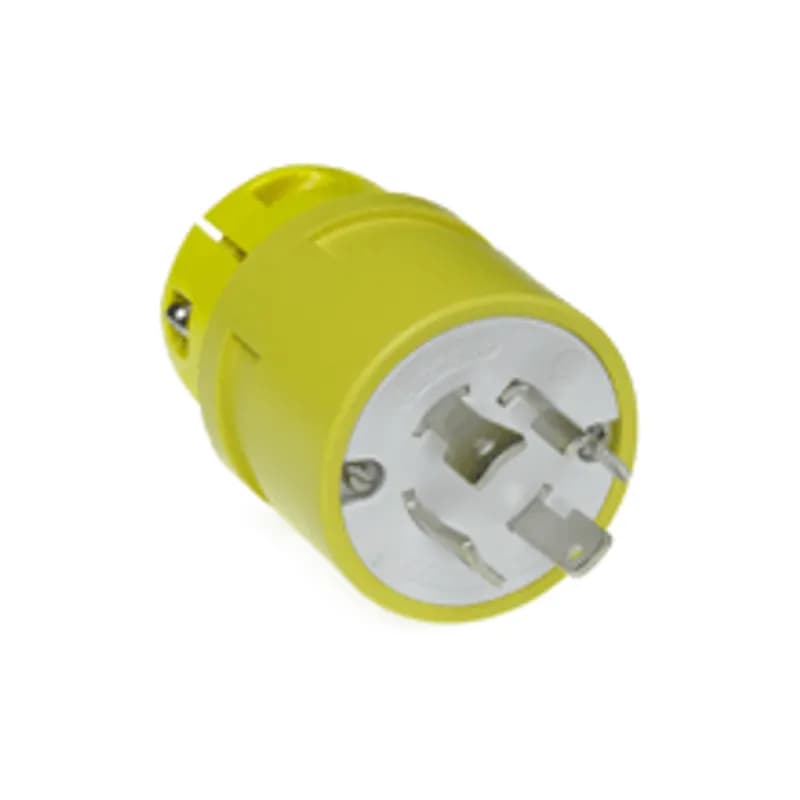

- NEMA L16-30 configuration for 3-phase, 480V applications
- 3-pole, 4-wire design for versatile power distribution
- Durable NEo-TEX® Paracril OZO rubber housing for extreme environments
- Locking blade mechanism for secure, accidental-disconnection-proof connections
- Nickel-plated brass contacts for superior conductivity and corrosion resistance
Specifications
Amperage Rating | 30 A |
Brand Name | Woodhead |
Environmental Conditions | None |
Nema Rating | NEMA L16-30 |
Number Of Poles | 3-pole/4-wire |
Number of Poles | 3 |
Poles | 3P/4W |
Series | Super-Safeway |
Sub Brand | Super-Safeway |
Type | Connector |
Voltage Rating | 480 VAC |
Voltage Rating | 3Ø 480V |
Package Weight (Imperial) | 1.600 L |
Package Weight (Metric) | 0.726 kg |
28W76BLK
Watertite® Extra Hard Outdoor Plug with Locking Blade, 3 Pole/4 Wire, NEMA L16-30, 3ø 480V, Cord Grip Body Size F4, Black
29W76MB
Watertite® Connector for Male Receptacle with Locking Blade, Single Flip Coverplate, 3 Pole/4 Wire, NEMA L16-30, 3ø 480V, F4
4976CR
Safeway® Single Corrosion Resistant Receptacle with Locking Blade, 3 Pole/4 Wire, NEMA L16-30, 3ø 480V
28W76A124
Watertite® Cordset, 12 Gauge SOOW, 3 Pole/4 Wire, Cordset, Length 7.62m (25.0' ), NEMA L16-30, 3ø 480V
29W76
Watertite® Connector with Locking Blade, 3 Pole/4 Wire, NEMA L16-30, 3ø 480V, Cord Grip Body Size F4Frequently Asked Questions about Woodhead
