Contact for Pricing
Overview
- 3-pole/4-wire NEMA L14-20 configuration for 250V applications
- Floating blade construction for self-alignment and reduced heat generation
- Color-coded ¼" tri-drive terminal screws for quick, tool-compatible wiring
- Transparent wiring guide ensures proper wire strand placement
- Two-piece cord-clamp strain relief with tri-drive screws for secure cord retention
Specifications
Amperage Rating | 20 A |
Brand Name | Woodhead |
Connection Type | Locking Blade |
Environmental Conditions | None |
Nema Rating | NEMA L14-20 |
Number Of Poles | 3-pole/4-wire |
Number of Poles | 3 |
Poles | 3P/4W |
Series | Safeway® |
Sub Brand | Safeway |
Type | Connector |
Voltage Rating | 250 V |
Package Weight (Imperial) | 1.312 L |
Package Weight (Metric) | 0.595 kg |
26W75BLK
Watertite® Extra Hard Outdoor Plug With Locking Blade, 3 Pole/4 Wire, NEMA L15-20, 3ø 250V, Cord Grip Body Size F3, Black
27W74MB
Watertite® Connector for Male Receptacle with Locking Blade, Single Flip Coverplate, 3 Pole/4 Wire, NEMA L14-20 250V, F3

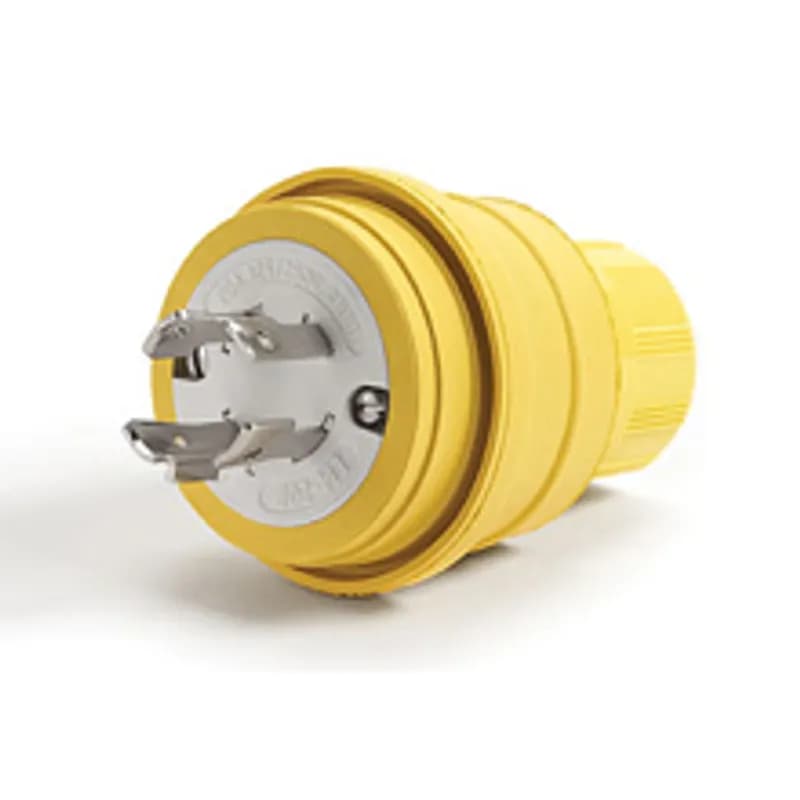

26W75
