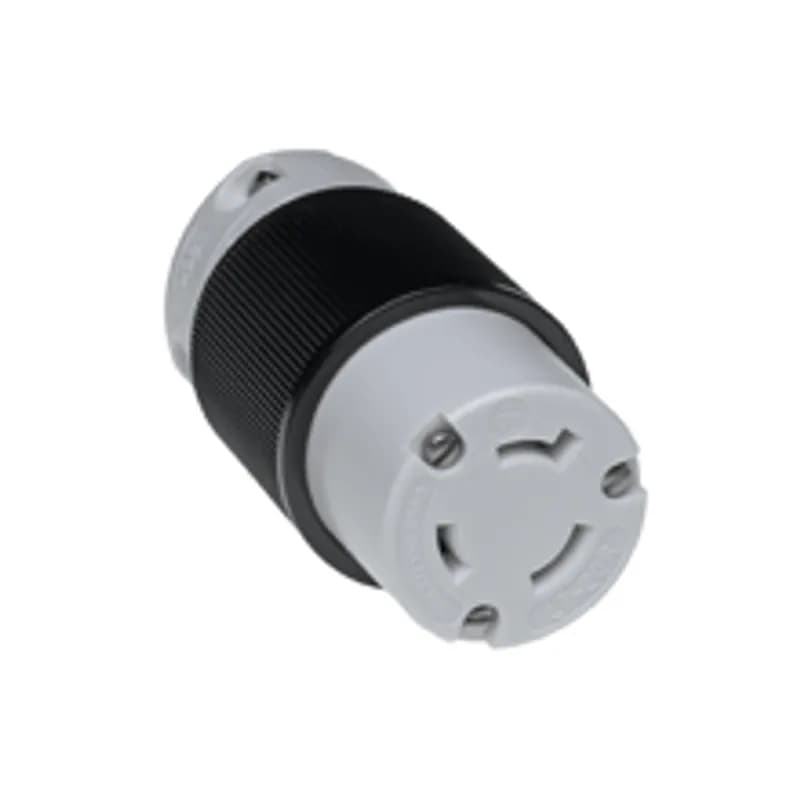

Woodhead 2749 - Super-Safeway® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L7-20, 277V
Woodhead

2749

Alternate Item Number: 1301420023

UPC: 786788705091

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Woodhead Super-Safeway® Connector (SKU: 2749) is a robust industrial-grade connector designed for secure and reliable power distribution. Featuring a 2-Pole/3-Wire (2P+G) configuration and a NEMA L7-20 rating, it is built to handle 20A at 277V, making it suitable for specialized industrial circuits. The integrated Locking Blade mechanism ensures a positive connection, preventing accidental disconnections and minimizing downtime. Constructed with NEo-TEX® Paracril OZO rubber for superior abrasion and chemical resistance, and nickel-plated brass contacts for conductivity, this connector is engineered for durability in harsh environments. Its physical specifications include tri-drive screw terminals for easy assembly, a captive stainless steel speed screw, and a two-piece cord-clamp strain relief. The operating temperature range is from -40°C to a maximum continuous 75°C. This connector meets UL File No. E10176 and CSA File No. LR6837. Woodhead's Super-Safeway series is trusted for its consistent performance in manufacturing plants, data centers, and heavy industry.
  • NEMA L7-20 configuration for 20A, 277V applications
  • 2-Pole/3-Wire (2P+G) for secure power and grounding
  • Locking Blade mechanism prevents accidental disconnections
  • NEo-TEX® Paracril OZO rubber housing for chemical and abrasion resistance
  • Nickel-plated brass contacts for reliable conductivity

Specifications

Amperage Rating
20 A
Brand Name
Woodhead
Environmental Conditions
None
Number Of Poles
2-pole/3-wire
Number of Poles
2
Sub Brand
Super-Safeway
Type
Connector
Voltage Rating
277V
Package Weight (Imperial)
1.500 L
Package Weight (Metric)
0.680 kg
Super-Safeway® Plug with Locking Blade, 2 Pole/3 Wire, NEMA L7-20, 277V

2649

Super-Safeway® Plug with Locking Blade, 2 Pole/3 Wire, NEMA L7-20, 277V
Watertite® Plug with Locking Blade, 2 Pole/3 Wire, NEMA L7-20, 277V, Cord Grip Body Size F3

26W49

Watertite® Plug with Locking Blade, 2 Pole/3 Wire, NEMA L7-20, 277V, Cord Grip Body Size F3
Watertite® Connector for Male Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L7-20 277V, F3

27W49MB

Watertite® Connector for Male Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L7-20 277V, F3
20 Amp Safeway® Pin & Sleeve Plug, 2 Pole/3 Wire, 277V, Gray

320P5

20 Amp Safeway® Pin & Sleeve Plug, 2 Pole/3 Wire, 277V, Gray

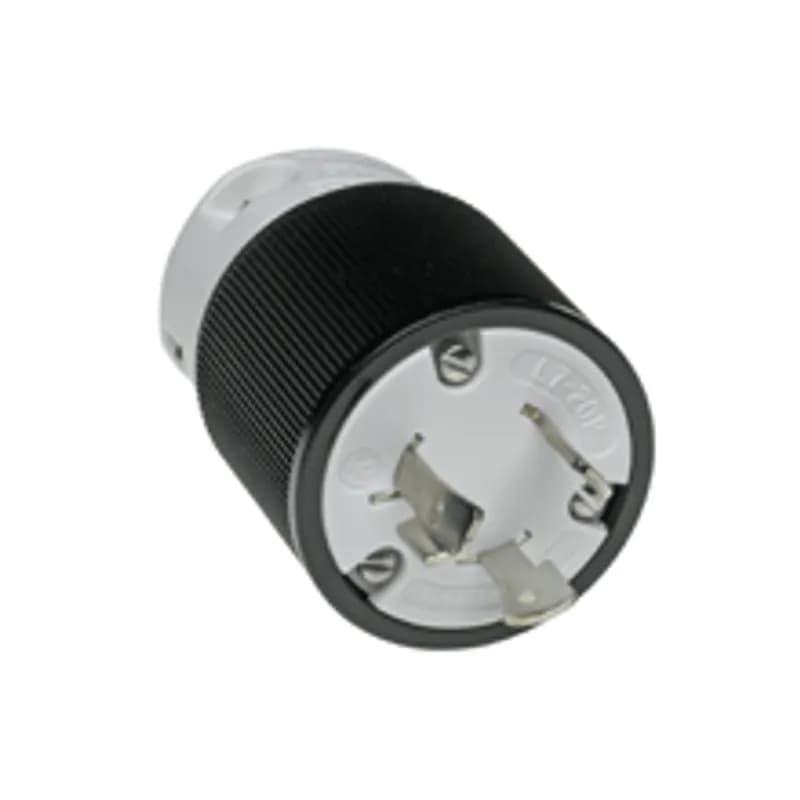

Safeway® Plug with Locking Blade, 2 Pole/3 Wire, NEMA L7-20, 277V
