Woodhead 2549 - Super-Safeway® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V
Woodhead

2549

Alternate Item Number: 1301410060

UPC: 786788700805

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Woodhead Super-Safeway® Connector, SKU 2549, is a robust industrial-grade electrical connector designed for secure and reliable power connections. This connector features a NEMA L6-15 configuration, rated for 250V and 15A, with a 2-pole, 3-wire (2P+G) setup including a grounding contact. Its Super-Safeway outer housing is constructed from NEo-TEX® Paracril OZO rubber, offering superior resistance to abrasion, chemicals, and extreme temperatures, ensuring longevity in demanding industrial settings. The connector utilizes nickel-plated brass blades and contacts for excellent conductivity and corrosion resistance. Key features include a locking blade mechanism to prevent accidental disconnections, tri-drive terminal screws for easy wiring with various screwdriver types, and a floating blade construction that promotes self-alignment for optimal mechanical and electrical contact, minimizing wear and heat. A transparent wiring guide aids in verifying proper wire placement before securing. The two-piece cord-clamp strain relief, equipped with tri-drive screws, firmly secures the cord. Manufactured in the US, this connector meets UL File No. E10176 and CSA File No. LR6837 standards, providing confidence in its safety and performance for applications such as industrial machinery, HVAC systems, and power distribution where dependable connections are critical.
  • NEMA L6-15 configuration, 250V, 15A, 2-Pole/3-Wire (2P+G)
  • Durable NEo-TEX® Paracril OZO rubber housing for chemical and abrasion resistance
  • Locking blade mechanism ensures secure connections and prevents accidental disconnections
  • Nickel-plated brass blades and contacts for superior conductivity and corrosion resistance
  • Tri-drive terminal screws and floating blade construction for reliable electrical connection

Specifications

Amperage Rating
15 A
Brand Name
Woodhead
Environmental Conditions
None
Nema Rating
NEMA L6-15
Number Of Poles
2-pole/3-wire
Number of Poles
2
Poles
2P+G
Sub Brand
Super-Safeway
Type
Connector
Voltage Rating
250 V
Package Weight (Imperial)
1.187 L
Package Weight (Metric)
0.538 kg
Super-Safeway® Plug with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V

2449

Super-Safeway® Plug with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V
Watertite® Cordset 14 Gauge SOOW, 2 Pole/3 Wire, Cordset Length 15.24m (50.0' ), NEMA L6-15, 250V

14W49B143

Watertite® Cordset 14 Gauge SOOW, 2 Pole/3 Wire, Cordset Length 15.24m (50.0' ), NEMA L6-15, 250V
Watertite® Cordset 14 Gauge SOOW, 2 Pole/3 Wire, Cordset Length 7.62m (25.0' ), NEMA 6-15, 250V

14W49A143

Watertite® Cordset 14 Gauge SOOW, 2 Pole/3 Wire, Cordset Length 7.62m (25.0' ), NEMA 6-15, 250V

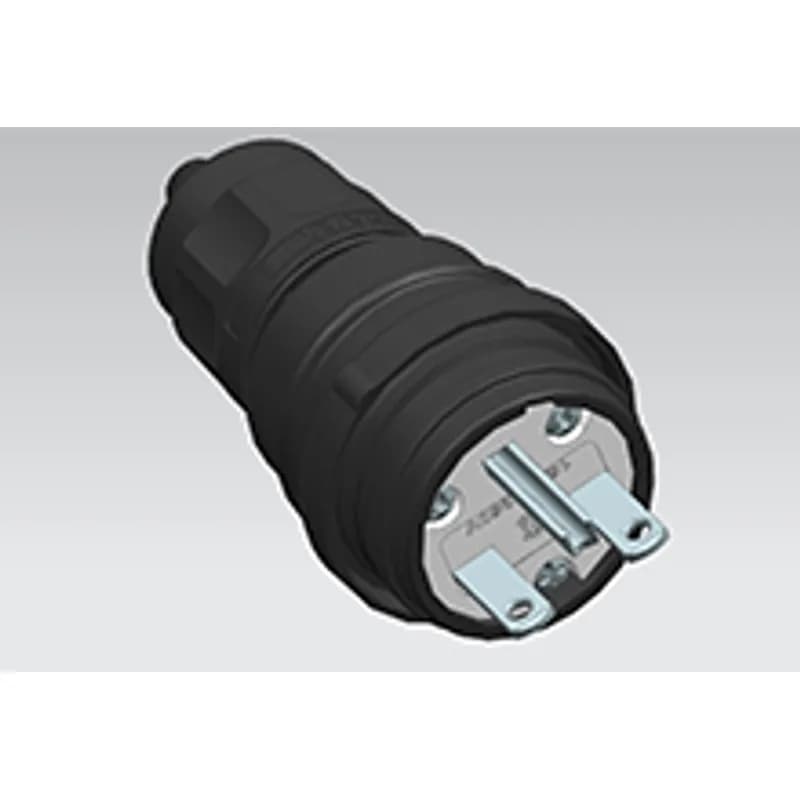

Watertite Extreme Extra-Hard Outdoor Use Plug, 2 Pole/3 Wire, NEMA 6-15, 250V, Cord Grip Body Size F2, Black, Petrochemical Grade

14W49BLK-P

Watertite Extreme Extra-Hard Outdoor Use Plug, 2 Pole/3 Wire, NEMA 6-15, 250V, Cord Grip Body Size F2, Black, Petrochemical Grade

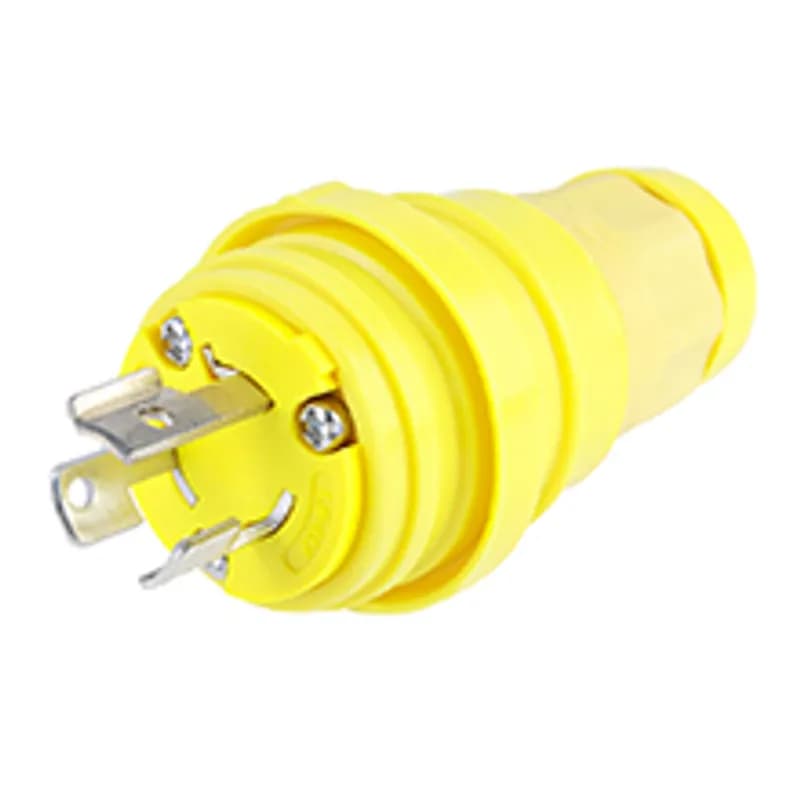

Watertite Extreme Plug with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V, Cord Grip Body Size F2, Silicone Husk

24W49

Watertite Extreme Plug with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V, Cord Grip Body Size F2, Silicone Husk

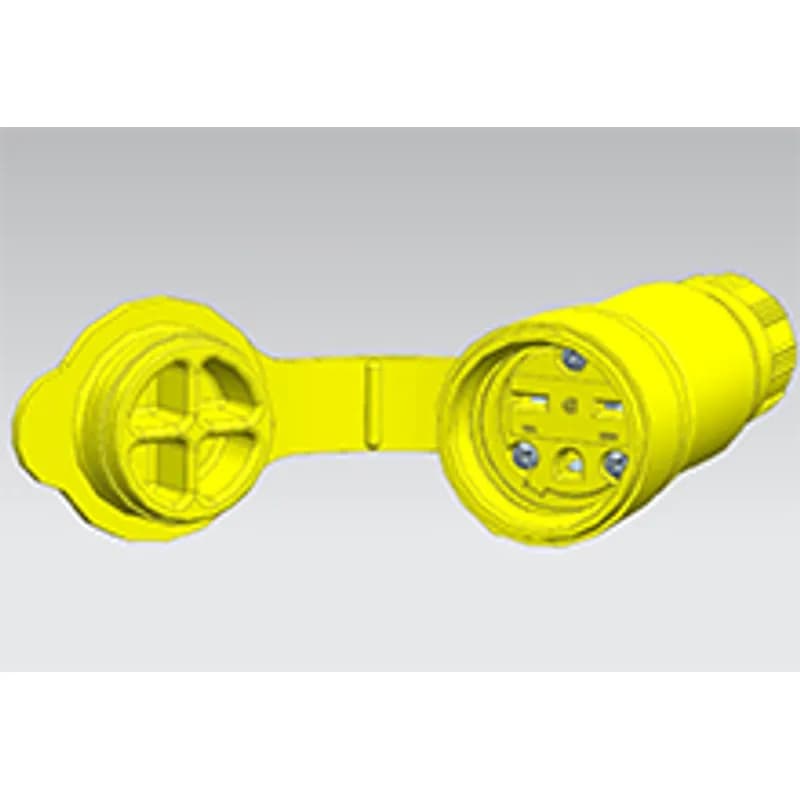

Watertite Extreme Receptacle Connector, 2 Pole/3 Wire, NEMA 6-15, 250V, Cord Grip Body Size F2, Petrochemical Grade

15W49-P

Watertite Extreme Receptacle Connector, 2 Pole/3 Wire, NEMA 6-15, 250V, Cord Grip Body Size F2, Petrochemical Grade

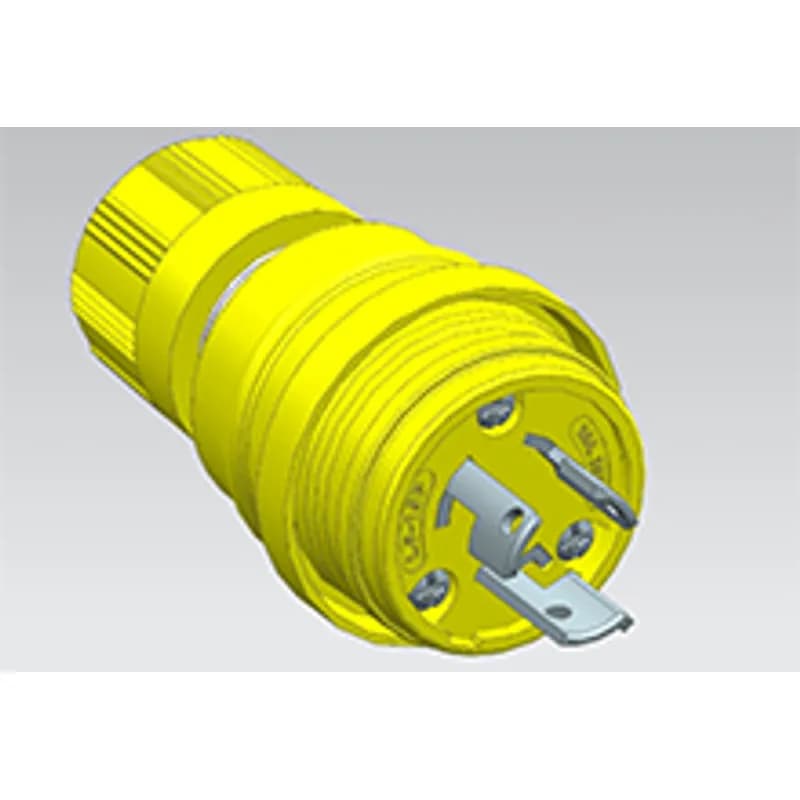

Watertite Extreme Plug with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V, Cord Grip Body Size F2, Petrochemical Grade

24W49-P

Watertite Extreme Plug with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V, Cord Grip Body Size F2, Petrochemical Grade

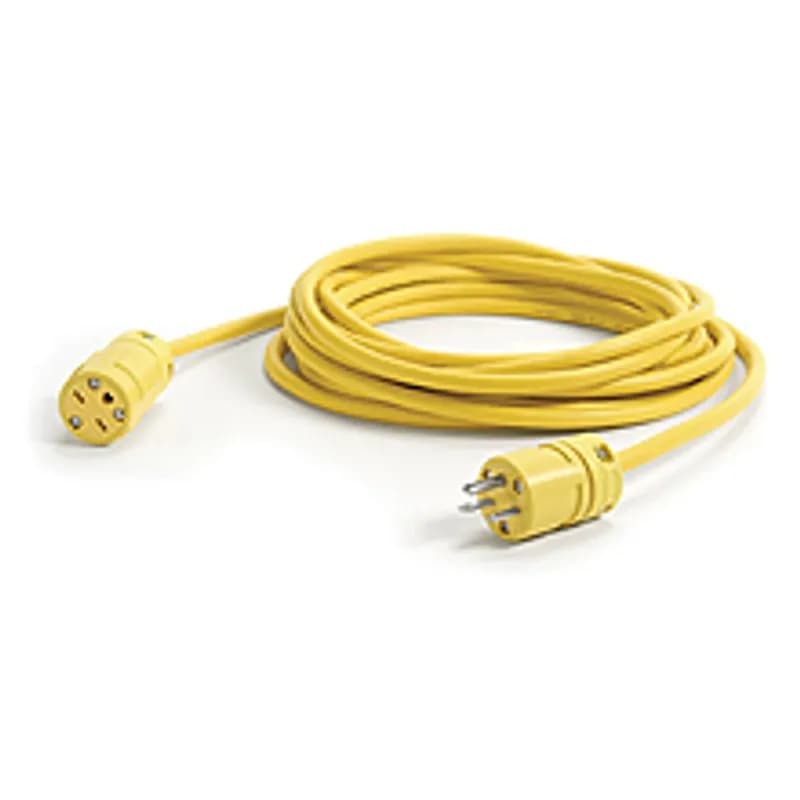

Super-Safeway® Cordset 14 Gauge SOOW, 2 Pole/3 Wire, Cordset Length 7.62m (25.0' ), NEMA 6-15, 250V

1449B143

Super-Safeway® Cordset 14 Gauge SOOW, 2 Pole/3 Wire, Cordset Length 7.62m (25.0' ), NEMA 6-15, 250V
Watertite Extreme Connector with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V, Cord Grip Body Size F2, Silicone Husk

25W49

Watertite Extreme Connector with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V, Cord Grip Body Size F2, Silicone Husk

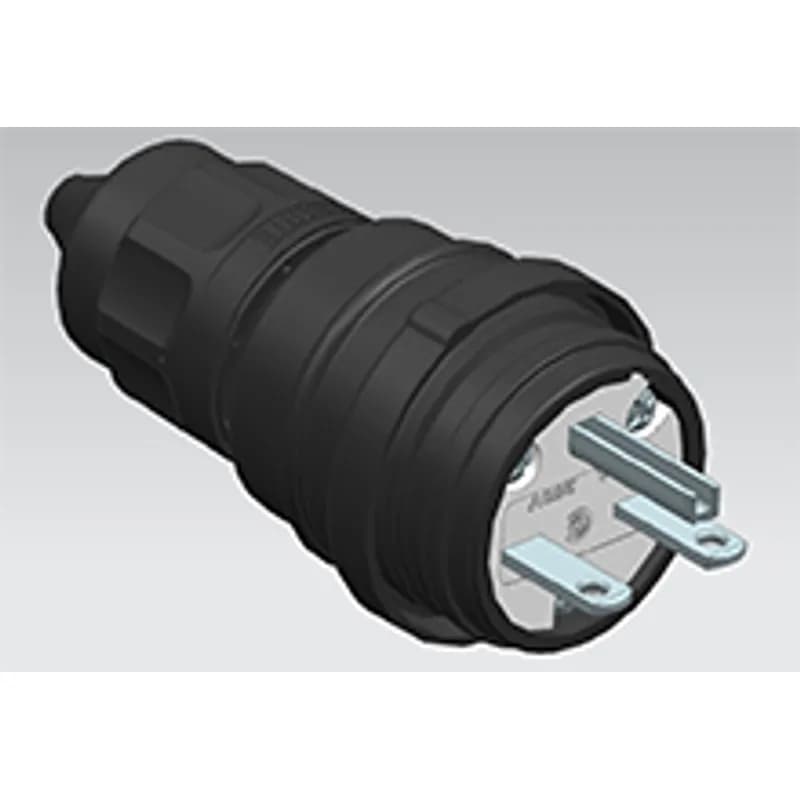

Watertite Extreme Extra-Hard Outdoor Use Plug, 2 Pole/3 Wire, NEMA 6-15, 250V, Cord Grip Body Size F2, Black, Silicone Husk
