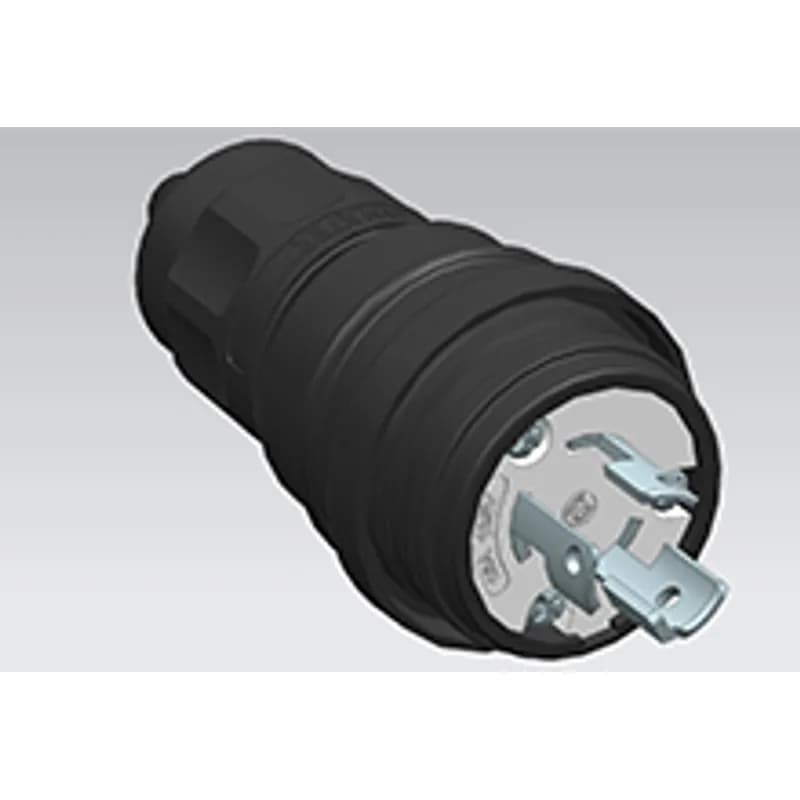

Woodhead 24W47BLK-P - Watertite Extreme Plug with Locking Blade, 2 Pole/3 Wire, NEMA L5-15, 125V, Cord Grip Body Size F2, Black, Petrochemical Grade
Woodhead

24W47BLK-P

Alternate Item Number: 1301460210

UPC: 781725597517

Documents & Media
Technical DrawingSpecification Sheet

Contact for Pricing

Overview

The Woodhead Watertite Extreme Plug (SKU: 24W47BLK-P) is a rugged, petrochemical-grade electrical connector engineered for harsh industrial environments. This NEMA L5-15, 2 Pole/3 Wire plug delivers reliable power connections in wet, corrosive, and high-pressure conditions with an IP67-rated seal that resists water ingress up to 1000psi. The locking blade mechanism ensures secure engagement, preventing accidental disconnections in dynamic applications like power distribution systems, machinery, and petrochemical processing equipment. Key specifications include a 125V voltage rating, maximum continuous operating temperature of 75°C (minimum -40°C), and a compact F2 cord grip body size (½"). The nickel-plated brass blades and contacts provide superior conductivity and corrosion resistance, while the NEo-TEX® Paracril OZO rubber housing and grommet offer exceptional chemical and environmental resistance. Stainless steel face screws and a nylon wire saddle clamp enhance durability and ease of assembly. Certified to UL E10176, CSA LR6837, and NSF/ANSI/3-A 14159-1 standards, this plug meets rigorous safety and sanitation requirements for food processing, pharmaceutical, and industrial applications. The black finish improves visibility in low-light conditions and resists UV degradation. Ideal for use with SOOW cords, this plug is a dependable choice for critical power connections in petrochemical plants, manufacturing facilities, and outdoor installations where reliability and safety are paramount.
  • NEMA L5-15 rated, 125V, 2 Pole/3 Wire configuration
  • IP67 seal resists water ingress up to 1000psi and contaminants
  • Operating temperature range: -40°C to 75°C
  • Nickel-plated brass blades/contacts, stainless steel screws
  • F2 cord grip body size (½"), black petrochemical-grade housing

Specifications

Amperage Rating
15 A
Brand Name
Woodhead
Color
Black
Connection Type
Cord Grip
Environmental Conditions
IP69K
Material
Petrochemical Grade
Nema Rating
NEMA L5-15
Number Of Poles
2-pole/3-wire
Number of Poles
2
Poles
2P+G
Poles
2P/3W
Poles
2 Pole/3 Wire
Series
Watertite Extreme
Size
F2
Sub Brand
Watertite Extreme
Type
Plug
Voltage Rating
125 V
