Woodhead 24W34 - Watertite Extreme Plug with Locking Blade, 2 Pole/3 Wire, NEMA L7-15, 277V, Cord Grip Body Size F2, Silicone Husk
Woodhead

24W34

Alternate Item Number: 1301460079

UPC: 786788712044

Documents & Media
Technical DrawingSpecification Sheet

Contact for Pricing

Minimum Qty: 5

Multiplier: 1

*Contact for lower quantities*

Overview

The Woodhead 24W34 Watertite Extreme Plug (SKU: 24W34) is a robust electrical connector engineered for demanding industrial environments. This plug features a NEMA L7-15 configuration, enabling operation at 277V with a 2-pole/3-wire configuration. The F2 cord grip body size is integral to its design, ensuring a secure and reliable cable management solution. The outer housing and grommet are constructed from NEo-TEX® Paracril OZO rubber, a material chosen for its exceptional environmental sealing capabilities. This plug adheres to stringent NEMA ratings, including 1, 3, 4, 4X, 5, 6, 6P, and 12, and also meets IEC ratings from IP55 through IP67. These certifications underscore its resistance to water ingress, vapor penetration, and high-pressure washdowns, capable of withstanding up to 1000psi. The operational temperature range for this plug extends from a low of -40°C to a maximum continuous operating temperature of 75°C. For enhanced durability and corrosion resistance, the plug's blades and connector contacts are manufactured from nickel-plated brass. Engineered for sustained reliability, the plug demonstrates a maximum temperature rise of 30°C at its full rated current. This performance is maintained even after 50 cycles of overload testing, where it was subjected to 150% of its rated current with a 75% power factor. Its versatile design makes it suitable for a wide array of applications, including food and beverage processing, general manufacturing, construction sites, and any setting where dependable power delivery is critical, particularly in wet or dusty conditions. The integrated locking blade mechanism further enhances the security and integrity of the electrical connection. As a product of Woodhead, a distinguished brand within the Molex family, the 24W34 plug benefits from the assurance of quality and reliability, evidenced by its UL and CSA certifications.
  • NEMA L7-15, 277V, 2-Pole/3-Wire configuration
  • Watertite Extreme design with NEo-TEX® Paracril OZO rubber housing
  • NEMA 1, 3, 4, 4X, 5, 6, 6P, 12 and IEC IP55-IP67 rated for superior environmental protection
  • F2 cord grip body size for secure cable strain relief
  • Nickel-plated brass blades and contacts for corrosion resistance

Specifications

Amperage Rating
15 A
Brand Name
Woodhead
Connection Type
Screw Terminal
Environmental Conditions
IP69K
IP Rating
IP67
Material
Silicone
Nema Rating
NEMA 4X
Number Of Poles
2-pole/3-wire
Number of Poles
2
Poles
2P/3W
Series
Watertite Extreme
Size
F2
Sub Brand
Watertite Extreme
Type
Plug
Voltage Rating
277 V
Package Dimensions (L x W x H)
8.5 IN x 4.562 IN x 4.375 IN
Package Dimensions (L x W x H)
21.59 cm x 11.5875 cm x 11.1125 cm
Package Weight (Imperial)
1.300 L
Package Weight (Metric)
0.590 kg
Watertite Extreme Connector for Male Receptacle, 2 Pole/3 Wire, NEMA 5-15, 125V, F2, Silicone Husk

15W47MB

Watertite Extreme Connector for Male Receptacle, 2 Pole/3 Wire, NEMA 5-15, 125V, F2, Silicone Husk
Watertite Extreme Connector for Male Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L7-15, 277V, F2, Silicone Husk

25W34MB

Watertite Extreme Connector for Male Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L7-15, 277V, F2, Silicone Husk
Super-Safeway® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L7-15, 277V

2534

Super-Safeway® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L7-15, 277V

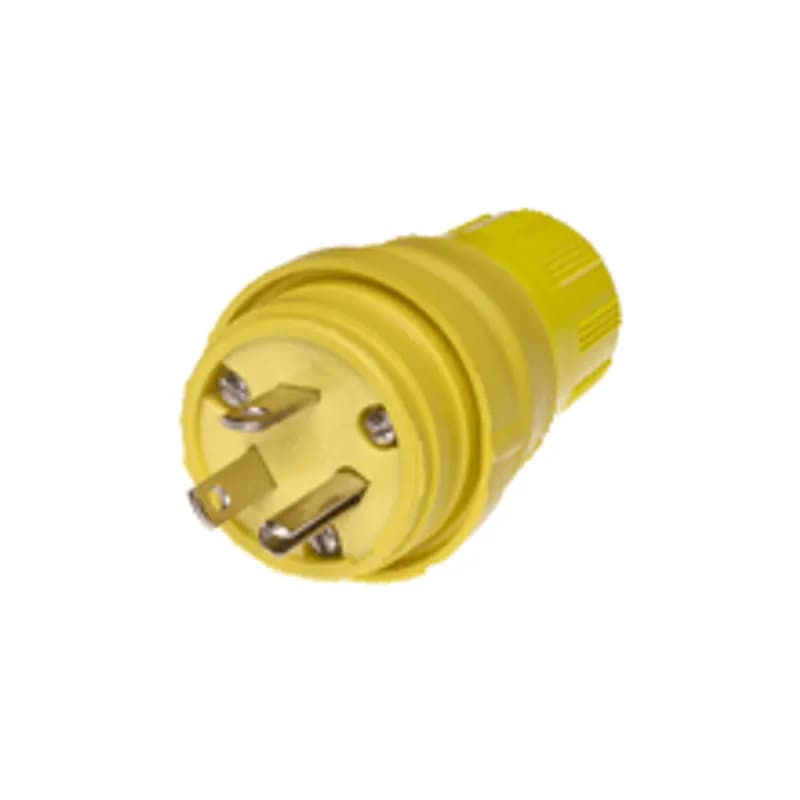

Watertite Extreme Plug, 2 Pole/3 Wire, NEMA 7-15, 277V, Cord Grip Body Size F2, Silicone Husk

14W34

Watertite Extreme Plug, 2 Pole/3 Wire, NEMA 7-15, 277V, Cord Grip Body Size F2, Silicone Husk
Watertite Extreme Connector, 2 Pole/3 Wire, NEMA 7-15, 277V, Cord Grip Body Size F2, Silicone Husk

15W34

Watertite Extreme Connector, 2 Pole/3 Wire, NEMA 7-15, 277V, Cord Grip Body Size F2, Silicone Husk

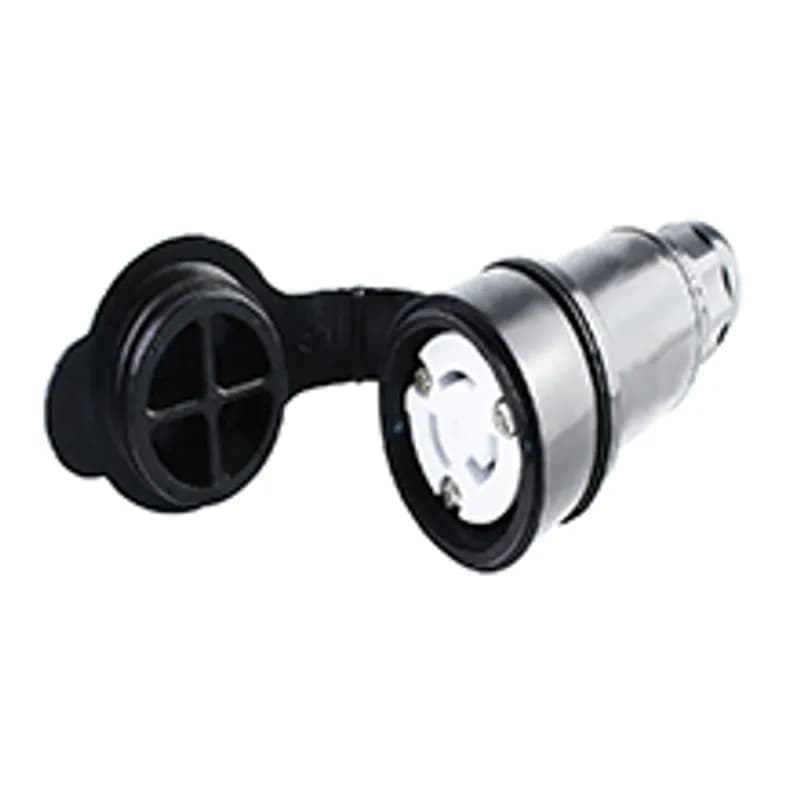

Watertite Extreme Extra Hard Outdoor Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L7-15, 277V, Cord Grip Body Size F2, Black, Silicone Husk
