Woodhead 14W04 - Watertite Extreme Plug, 2 Pole/2 Wire, NEMA 1-15, 125V, Cord Grip Body Size F2, Silicone Husk
Woodhead

14W04

Alternate Item Number: 1301460012

UPC: 786788710002

Documents & Media
Technical DrawingSpecification Sheet

Contact for Pricing

Overview

The Woodhead 14W04 Watertite Extreme Plug (SKU: 14W04) is a 2-pole, 2-wire NEMA 1-15 rated plug designed for 125V applications in harsh industrial and commercial environments. Constructed with a durable silicone husk and F2 cord grip body, it delivers superior resistance to water, dust, and extreme temperatures. The nickel-plated brass blades and contacts ensure reliable electrical connectivity, while the NEo-TEX® Paracril OZO rubber grommet provides a secure seal against contaminants. Rated for NEMA 1, 3, 4, 4X, 5, 6, 6P, and 12, and IEC IP55-IP67, this plug withstands high-pressure washdowns up to 1000psi. Operating from -40°C to 75°C with a maximum 30°C temperature rise, it is ideal for power tools, portable equipment, and temporary power setups in construction, manufacturing, and outdoor sites. The F2 ½" cord grip body accommodates a wide range of cable diameters, ensuring strain relief and preventing cable pull-out. Trusted in demanding applications, the 14W04 is part of Woodhead’s Watertite Extreme series, known for rugged reliability in wet and dirty conditions.
  • NEMA 1-15 rated for 125V, 2-pole/2-wire configuration
  • Silicone husk and NEo-TEX® Paracril OZO rubber grommet for water/dust resistance
  • F2 ½" cord grip body with three-piece strain relief for secure cable connection
  • Nickel-plated brass blades and contacts for reliable electrical conductivity
  • Operating temperature range: -40°C to 75°C, rated for high-pressure washdowns up to 1000psi

Specifications

Amperage Rating
15 A
Brand Name
Woodhead
Environmental Conditions
IP69K
Number Of Poles
2-pole/2-wire
Number of Poles
2
Sub Brand
Watertite Extreme
Type
Plug
Voltage Rating
125V
Package Weight (Imperial)
1.220 L
Package Weight (Metric)
0.553 kg
Safeway® Adapter NEMA 1-15 Receptacle - Female End 15A/125V, NEMA L5-20 Plug - Male End, 20A/125V

1740

Safeway® Adapter NEMA 1-15 Receptacle - Female End 15A/125V, NEMA L5-20 Plug - Male End, 20A/125V
Watertite Extreme Plug, Polarized, 2 Pole/2 Wire, NEMA 1-15, 125V, Cord Grip Body Size F2, Petrochemical Grade

14W19-P

Watertite Extreme Plug, Polarized, 2 Pole/2 Wire, NEMA 1-15, 125V, Cord Grip Body Size F2, Petrochemical Grade
Safeway® Flanged Inlet, 2 Pole/2 Wire, NEMA 1-15, 125V

1404MB

Safeway® Flanged Inlet, 2 Pole/2 Wire, NEMA 1-15, 125V

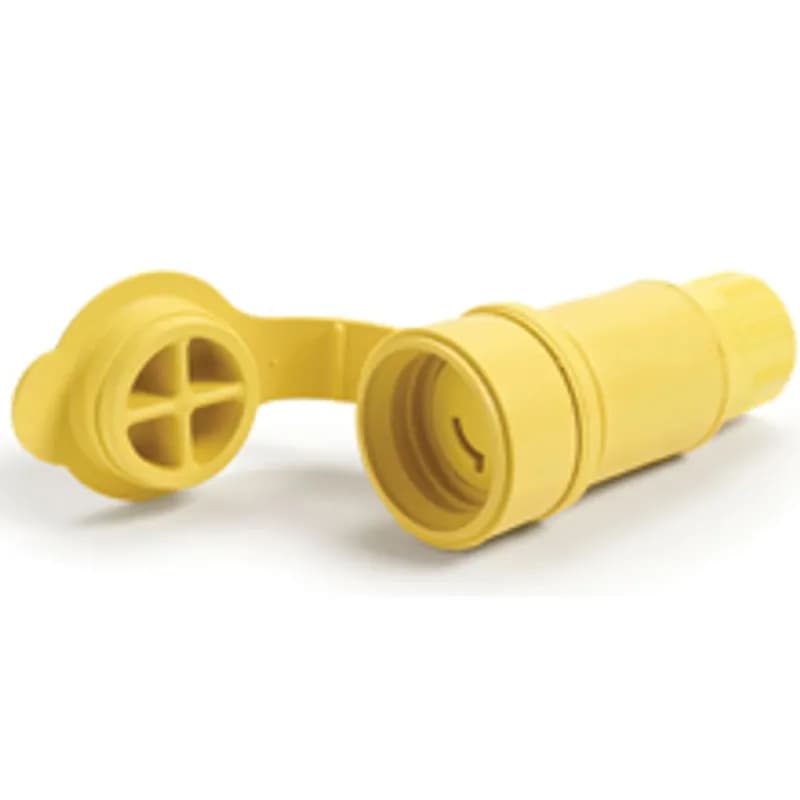

Watertite Extreme Connector, 2 Pole/2 Wire, NEMA 1-15, 125V, Cord Grip Body Size F2, Silicone Husk

15W04

Watertite Extreme Connector, 2 Pole/2 Wire, NEMA 1-15, 125V, Cord Grip Body Size F2, Silicone Husk
Super-Safeway® Cordset 16 Gauge SOOW, 2 Pole/2 Wire, Cordset Length 7.62m (25.0' ), NEMA 1-15, 125V

1404A162

Super-Safeway® Cordset 16 Gauge SOOW, 2 Pole/2 Wire, Cordset Length 7.62m (25.0' ), NEMA 1-15, 125V
Safeway® Plug, 2 Pole/2 Wire, NEMA 1-15, 125V

5166

Safeway® Plug, 2 Pole/2 Wire, NEMA 1-15, 125V
Safeway® Plug, Polarized, 2 Pole/2 Wire, NEMA 1-15, 125V

5176

Safeway® Plug, Polarized, 2 Pole/2 Wire, NEMA 1-15, 125V

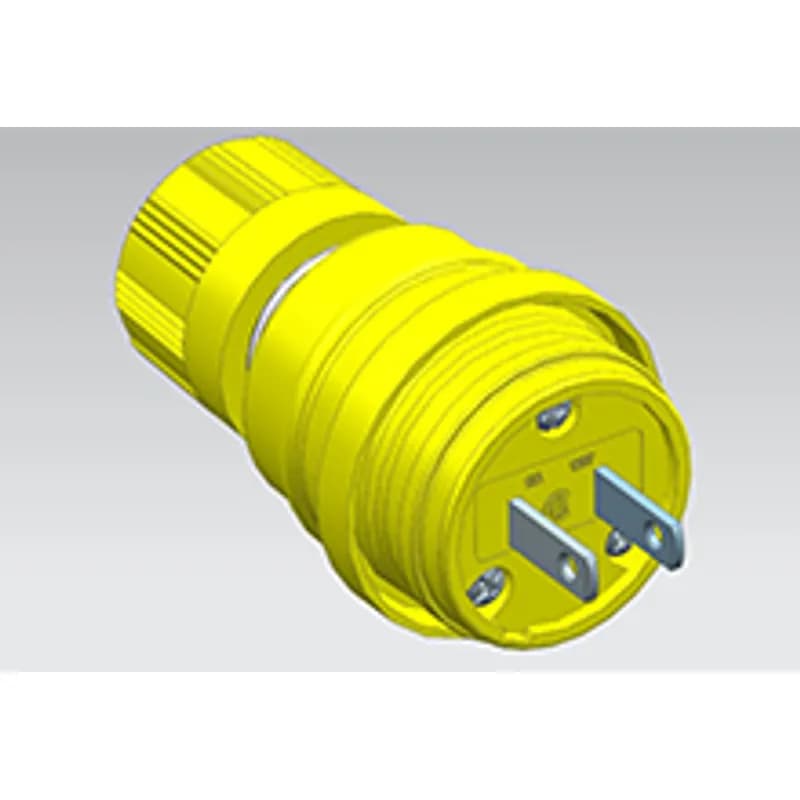

Watertite Extreme Plug, 2 Pole/2 Wire, NEMA 1-15, 125V, Cord Grip Body Size F2, Petrochemical Grade

14W04-P

Watertite Extreme Plug, 2 Pole/2 Wire, NEMA 1-15, 125V, Cord Grip Body Size F2, Petrochemical Grade

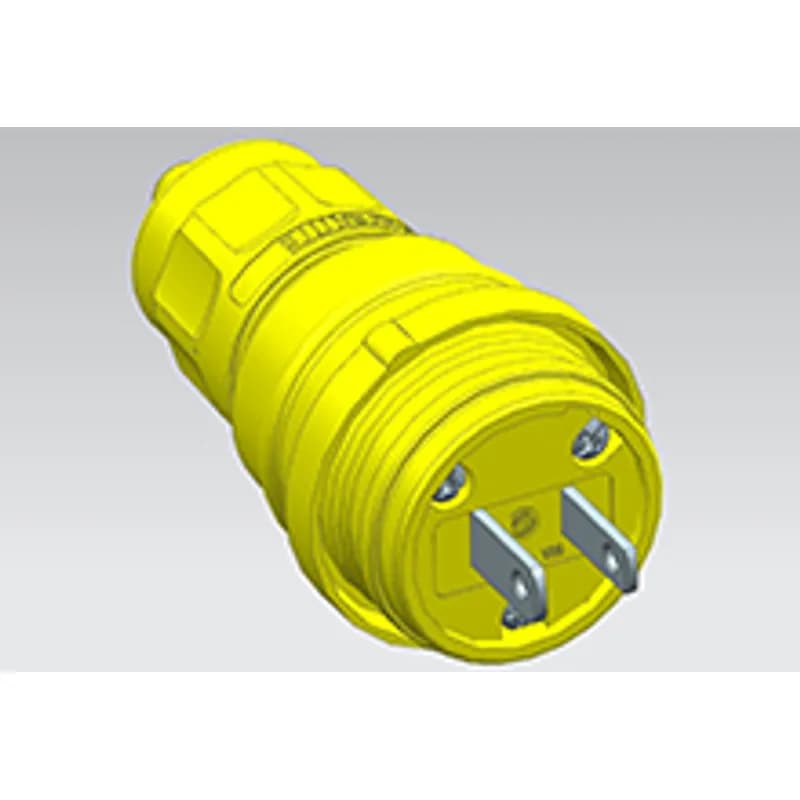

Watertite Extreme Plug, Polarized, 2 Pole/2 Wire, NEMA 1-15, 125V, Cord Grip Body Size F2, Silicone Husk

14W19

Watertite Extreme Plug, Polarized, 2 Pole/2 Wire, NEMA 1-15, 125V, Cord Grip Body Size F2, Silicone Husk

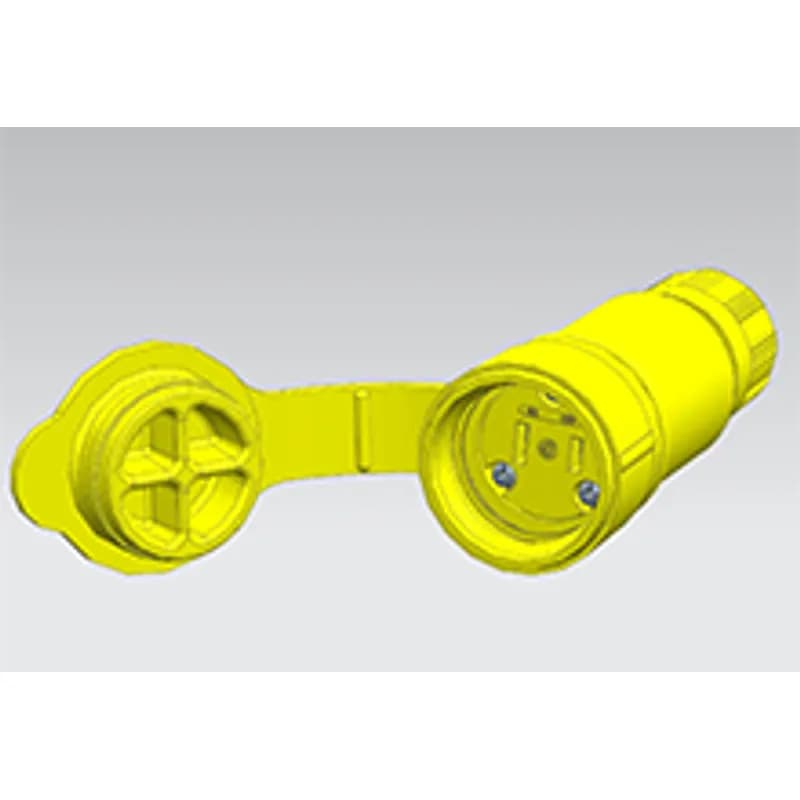

Watertite Extreme Connector, 2 Pole/2 Wire, NEMA 1-15, 125V, Cord Grip Body Size F2, Petrochemical Grade
