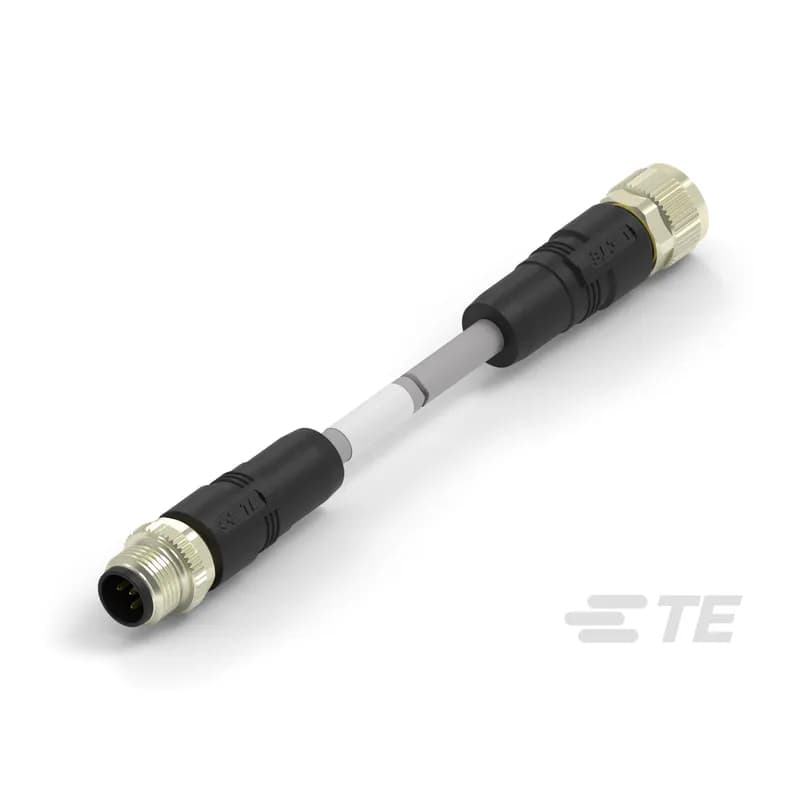

TE Connectivity TAA756A1611-020 - M12 Cable Assembly, 5 Position, 2 m, Industrial Fieldbus, DeviceNet, A Code, M12 Plug End A, M12 Socket End B, Shielded, Double Ended, PA66+25GF
TE Connectivity

TAA756A1611-020

Documents & Media
BrochureFull Engineering DrawingSpecification Sheet

Contact for Pricing

Minimum Qty: 5

Multiplier: 75

*Contact for lower quantities*

Overview

The TE Connectivity TAA756A1611-020 is a double-ended M12 cable assembly engineered for reliable industrial fieldbus connectivity, specifically for DeviceNet networks. This assembly features a 5-position configuration and a 2-meter cable length, providing ample reach for various automation setups. The M12 connectors are A-coded on one end (Plug End A) and B-coded on the other (Socket End B), ensuring correct and secure mating in industrial environments. Constructed with PA66+25GF (Polyamide 66 reinforced with 25% glass fiber), this cable assembly offers exceptional mechanical strength, rigidity, and resistance to abrasion, chemicals, and temperature fluctuations, making it suitable for harsh operating conditions. The shielded design is critical for maintaining signal integrity in environments prone to electromagnetic interference (EMI), ensuring consistent and error-free data transmission essential for industrial control systems, robotics, and manufacturing automation. Its robust build and specific coding ensure dependable connections in demanding applications where uptime and data accuracy are paramount. This cable assembly is designed for direct field installation and connection between industrial devices and control systems.
  • M12 Cable Assembly with 5 Positions
  • 2-meter Cable Length
  • Shielded for Enhanced Signal Integrity
  • DeviceNet Industrial Fieldbus Compatible
  • M12 A-Code Plug (End A) and B-Code Socket (End B)
  • Durable PA66+25GF Material Construction

Specifications

Application
Industrial
Color
Gray
Conductor Material
Copper Alloy
Conductor Size
22 - 24 AWG
Insulation Material
Nylon
Jacket Material
PVC
Length
2 m
Standard
IP67
Type
M12
Voltage Rating
60 V
