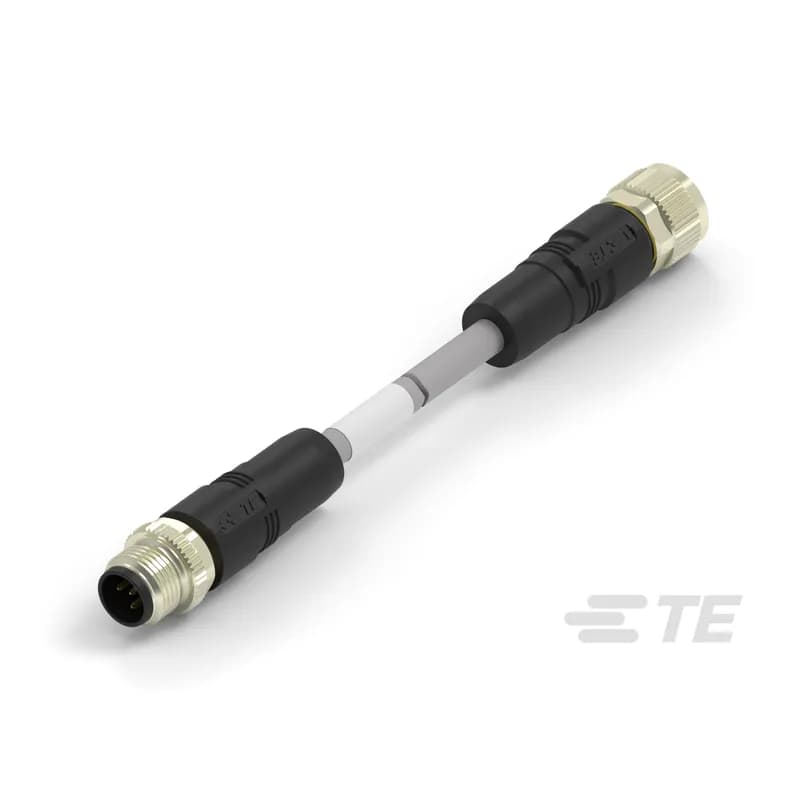

TE Connectivity TAA755A1611-060 M12 Cable Assembly, 5 Position, 6 m, Industrial Fieldbus, DeviceNet, A Code, M12 Plug…
Documents & Media
Contact for Pricing
Minimum Qty: 2
Multiplier: 30
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 5-position M12 configuration for DeviceNet and Industrial Fieldbus
- 6-meter length with double-ended M12 plug (A-code) and socket (B-code)
- Shielded for EMI/RFI protection in harsh environments
- PA66+25GF material for high mechanical strength and chemical resistance
- Operating temperature range: -40°C to +85°C
Specifications
Application | Industrial |
Color | Gray |
Conductor Material | Copper Alloy |
Conductor Size | 22 - 24 AWG |
Connection Type | Double Ended |
Insulation Material | Nylon |
Jacket Material | PVC |
Length | 6 m |
Material | PA66+25GF |
Poles | 5 |
Series | TAA755 |
Size | M12 |
Standard | IP67 |
Type | M12 |
Voltage Rating | 60 V |
TAA754A1611-060
M12 Pigtail Cable Assembly, 5 Position, 6 m, Industrial Fieldbus, DeviceNet, A Code, M12 Socket End A, Shielded, Single Ended, PA66+25GF

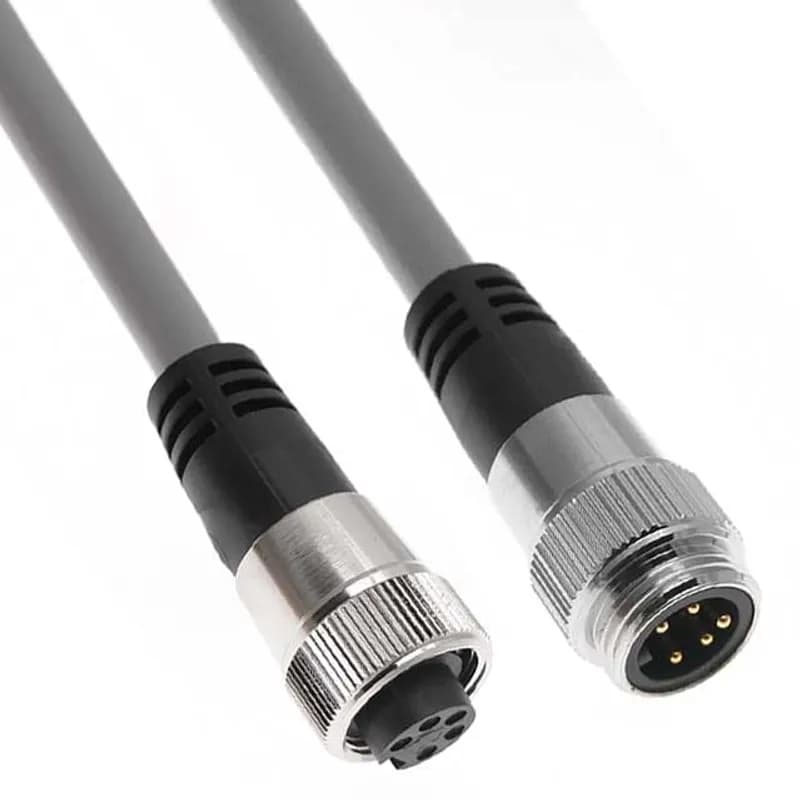

MINDD-5MFP-5M
DeviceNet Drop, 7/8UN2, Cordset, Shielded Cable, Not shielded to coupling nut, 5 Pole, Male Straight / Female Straight, 5M, 4A, Gray, PVC

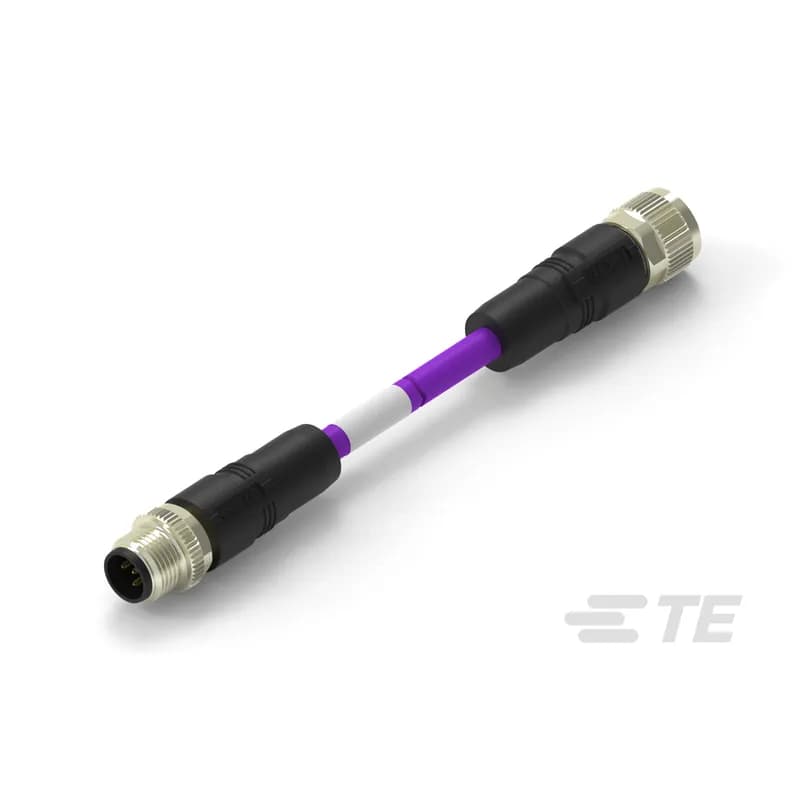

TAA755A5501-020
M12 Cable Assembly, 5 Position, 2 m, Industrial Fieldbus, DeviceNet, A Code, M12 Plug End A, M12 Socket End B, Shielded, Double Ended, PA66+25GF
TAA543B1411-001
M12 Pigtail Cable Assembly, 4 Position, .5 m, Industrial Fieldbus, CC-link, A Code, M12 Socket End A, Shielded, Single Ended, PA66+25GF
TAB62446501-007
M12 Pigtail Cable Assembly, 2 Position, 10 m, Industrial Fieldbus, PROFIBUS, B Code, M12 Socket End A, Shielded, Single Ended, PA66+25GFTAA543B1411-080
M12 Pigtail Cable Assembly, 4 Position, 8 m, Industrial Fieldbus, CC-link, A Code, M12 Socket End A, Shielded, Single Ended, PA66+25GFTAA754A1611-080
M12 Pigtail Cable Assembly, 5 Position, 8 m, Industrial Fieldbus, DeviceNet, A Code, M12 Socket End A, Shielded, Single Ended, PA66+25GF
TAA545B1411-002
M12 Cable Assembly, 4 Position, 1 m, Industrial Fieldbus, CC-link, A Code, M12 Plug End A, M12 Socket End B, Shielded, Double Ended, PA66+25GFFrequently Asked Questions
What is the operating temperature range for M8 and M12 connectors?
The ambient temperature range for both M8 and M12 connectors is -40 °C to 85 °C.
What data transmission speeds do the X-coded M12 connectors support?
The X-coded M12 connectors support data transmission speeds of up to 10 Gb/s.
What is the current rating per pin for M8 and M12 connectors?
For 4 and 5 pins, the current rating is 4 A per pin. For 8 and 12 pins, it is 2 A per pin.
What are the available cable assembly lengths for M8/M12 connectors?
Cable assemblies are available in lengths of 1, 3, 5, and 10 meters.
What IP rating do the M8/M12 connectors have?
The M8/M12 connectors have an IP rating of IP67/IP68.
What types of M12 codings are available for industrial Ethernet applications?
D-coding is used for Industrial Ethernet, Profinet, Ethernet/IP, and EtherCat. X-coding is for Cat6A, high-speed 10Gbit rugged industrial Ethernet applications.
Are shielded and unshielded cable assembly variants available?
Yes, TE offers both shielded and unshielded Cat5e and Cat6A cable assembly variants.
What is the voltage rating for M8 connectors with 3 or 4 pins?
M8 connectors with 3 pins are rated for 60 V, and those with 4 pins are rated for 30 V.
What is the voltage rating for M12 connectors with 3 or 4 pins?
M12 connectors with 3 or 4 pins are rated for 250 V.
What is the voltage rating for M12 connectors with 5, 8, or 12 pins?
M12 connectors with 5 pins are rated for 60V, while those with 8 or 12 pins are rated for 60 V and 30 V respectively.
