TE Connectivity T3609160111-000 - Cable Gland

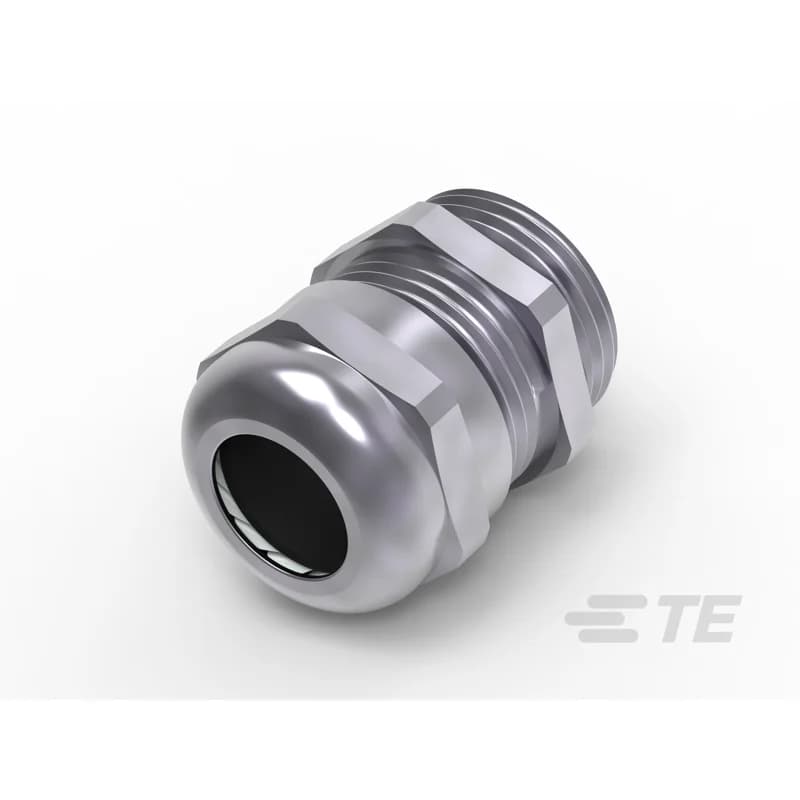

TE Connectivity T3609160111-000 Cable Gland


Documents & Media
BrochureFull Engineering DrawingSpecification Sheet

Contact for Pricing

Minimum Qty: 360

Multiplier: 360

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

TE Connectivity’s T3609160111-000 is a metal cable gland designed for secure cable entry into industrial enclosures. This M32 (18-25) gland features a 1.5mm thread pitch and accommodates cable diameters from 18-25mm. It provides strain relief and environmental sealing for harsh industrial environments. The gland is part of TE Connectivity’s premium metal cable gland series, ensuring reliable performance in demanding applications. Compatible with standard M32x1.5 threaded entries, it is ideal for use in control panels, machinery, and electrical enclosures where cable protection and ingress resistance are critical.
  • M32x1.5 thread size for standard industrial enclosures
  • Accommodates cable diameters from 18-25mm
  • Provides strain relief and environmental sealing
  • Metal construction for durability in harsh conditions
  • Part of TE Connectivity’s premium cable gland series

Specifications

Cable Diameter, Maximum
0.4724 in
Cable Diameter, Maximum
12 mm
Cable Diameter, Minimum
0.2756 in
Cable Diameter, Minimum
7 mm
Material
Polyamide
Standard
IP68
Type
Cable Gland
