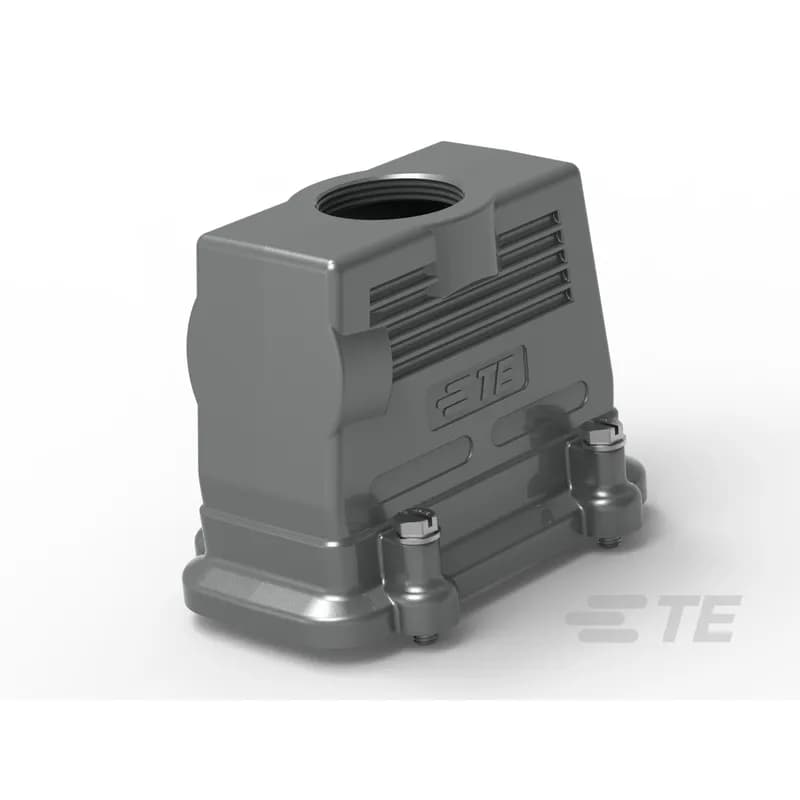

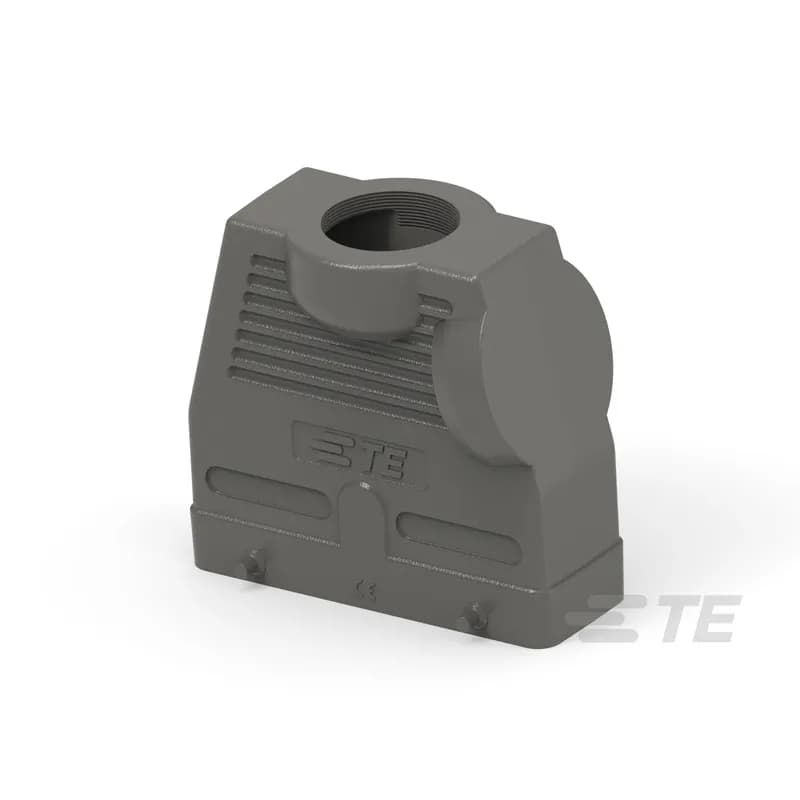

TE Connectivity T1926032125-000 Heavy Duty Connector Hood, Top Entry, Screwlock, Sealable
Documents & Media
Contact for Pricing
Minimum Qty: 60
Multiplier: 60
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- M6x2 thread sizing
- IP68/IP69 protection per EN 60529 standards
- Screwlock mechanism for secure retention
- Sealable design for resistance to dust, moisture, and contaminants
Specifications
Color | Black |
Color | Gray |
Connection Type | Screwlock |
Ip Rating | IP68/IP69 |
Material | Die Cast Aluminum |
Mounting Type | Top Entry |
Series | S-D, S-DD, S-E, S-ES, S-EP, S-EE, S-EEE, S-HSB, S-K, S-M |
Standard | IP68 |
Type | Hood |
Type | Rectangular Connector Hood |
Frequently Asked Questions
What is the operating temperature range for this product?
The operating temperature range for this product is -40°C to +125°C.
What are the degrees of protection provided by the H3APR hoods and housings?
The H3APR hoods and housings provide degrees of protection IP68 and IP69K.
What are the conditions for the IPX8 water ingress test?
The IPX8 test involves water immersion at 1 meter for 24 hours, ensuring no water ingress.
What does the IP6X degree of protection signify?
The IP6X degree of protection ensures no ingress of dust when tested according to IEC 60529.
How is the IPX9K degree of protection tested?
The IPX9K test ensures no water ingress under high-pressure, high-temperature water jets, according to DIN 40050-9.
What is the purpose of the H3APR hoods and housings?
The H3APR hoods and housings are designed for the insertion and protection of contact inserts of various series and sizes.
What are the parameters for the cyclic salt mist test?
The salt mist test uses a 5±1% NaCl solution at 35±1°C for 72 hours, with a specific precipitation rate and pH value.
How is the product tested for cold environmental conditions?
The product is subjected to -40°C for 16 hours as part of the cold environmental testing.
What are the conditions for the dry heat environmental test?
The dry heat test involves subjecting the mated specimen to +125°C for 168 hours.
What are the vibration test conditions for this product?
The vibration test is random, with frequencies from 5 to 150Hz, and no discontinuities greater than 1μs.
