Overview

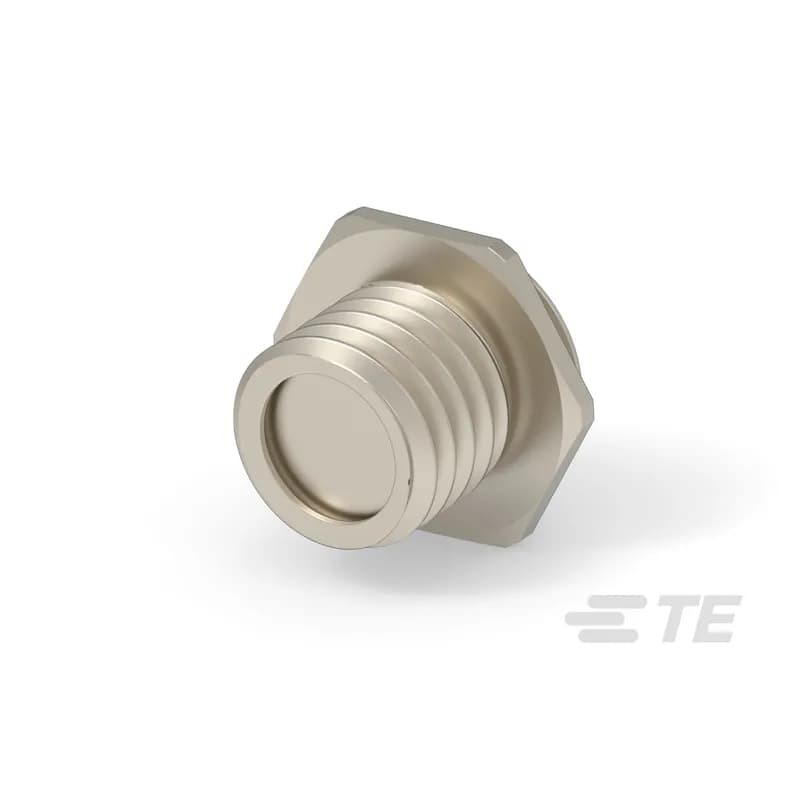

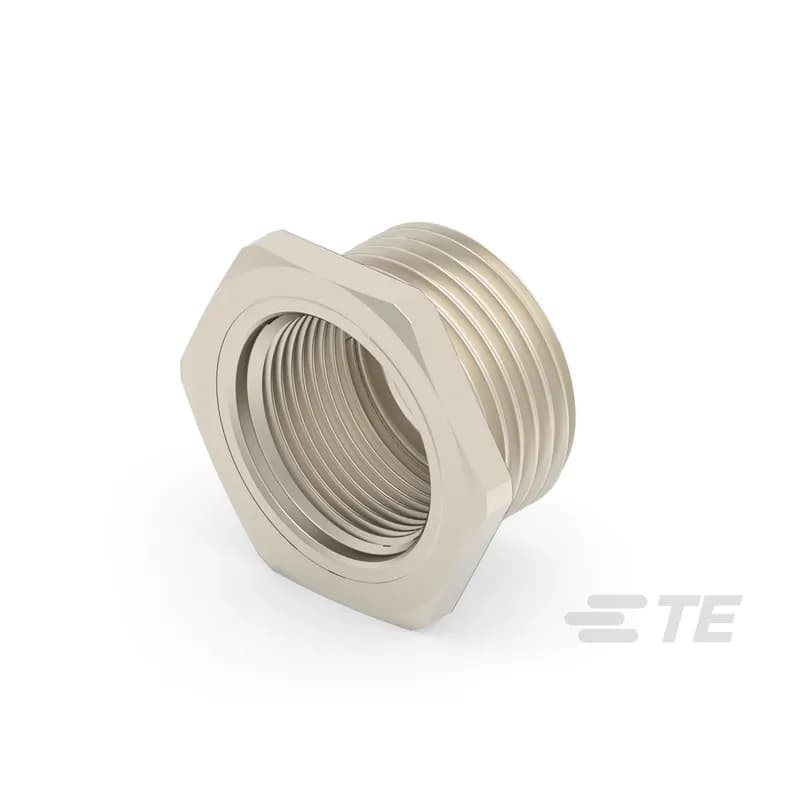

- Natural finish copper alloy construction for inherent conductivity and corrosion resistance
- Designed for M8 industrial connectors
- Ensures reliable mechanical and electrical connections
- Classified under UNSPSC 39121724
- Manufactured in the USA
Specifications
Application | M8 female connectors |
Color | Natural |
Material | Copper Alloy |
Size | M8 |
Type | Nut |
WGB4B
4 Position Copper Grounding Bus - Wire Range 14 Solid - 4 Stranded Copper. 2-23/32 inch long x 7/16 inch x 1/2 inch. Bare Copper. (2) 3/16 inch diameter Thru holes, one on each end. (4) 1/4-28 UNF-2B Tapped Holes that intersect with (4) 17/64 inch Diameter holes.
Frequently Asked Questions
What are the available codings for M8/M12 connectors?
The M8/M12 connectors are available in A, B, D, and X codings.
What termination technologies are supported by these connectors?
The connectors support SMT (Surface Mount Technology) and THR (Through Hole Reflow) termination technologies.
What is the operating temperature range for M8/M12 connectors?
The temperature range is -25 to 85°C, with derating curves available up to 125°C.
What is the contact resistance of these connectors?
The contact resistance is less than 10 mΩ according to IEC 60512 test 2a.
What is the insulation resistance of M8/M12 connectors?
The insulation resistance is greater than 10^8 Ω according to IEC 60512 test 3a.
How many mating cycles can these connectors withstand?
The connectors are designed for over 100 mating cycles according to IEC 60512 test 9a.
What are the recommended reflow soldering temperatures?
Reflow soldering temperature is max. 260°C for 20-40 seconds, according to JEDEC J-STD-020.
What housing materials are used for M8/M12 connectors?
The insulation body is made of LCP / PA, with a CTI value of min. 175 and UL flame rating of V-0.
What is the protection degree of these connectors?
The protection degree is IP 65/67 when mated.
What are the available assembly heights for M8/M12 connectors?
M12 connectors are available in 9 and 13 mm heights, while M8 connectors are also available in 9 and 13 mm heights.
