TE Connectivity

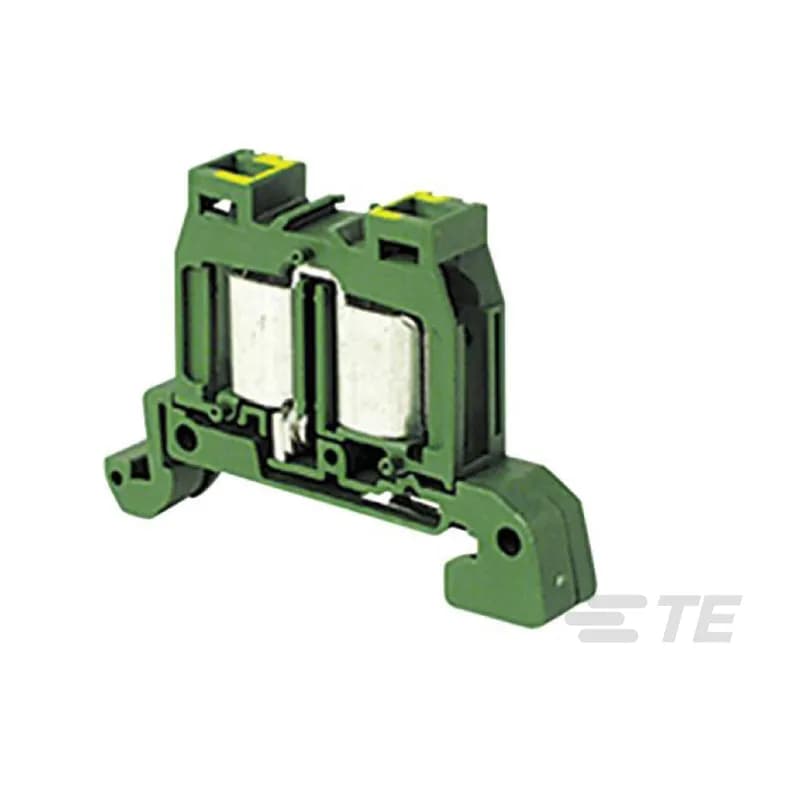

1SNA199528R2100
Alternate Item Number: 019952821
Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Overview
- 8-pole design with 2.5mm pitch for compact wiring
- DIN-rail mountable for easy installation in control panels
- Push-in terminals for tool-free, secure wire termination
- Rugged construction for vibration, temperature, and contaminant resistance
- Compatible with TE Connectivity’s industrial automation ecosystem
Specifications
Application | Miniblock |
Color | Green-Yellow |
Connection Type | Push-in Terminal |
Connection Type | Push-in |
Electrical Connection 1 | ADO System |
Electrical Connection 2 | ADO System |
Flammability | V0 |
Flammability - Metric | V0 |
Height | 1.9291 in |
Height | 48.9991 mm |
Height | 1.92913385826772 in |
Height - Metric | 49 mm |
Length | 1.10236220472441 in |
Length - Metric | 6.3 mm |
Material | Polyamide |
Mounting | DIN Rail |
Mounting Type | DIN-Rail |
Mounting Type | DIN-rail mountable |
Poles | 8 |
Series | DS2.5 |
Series | DS2.5/8.P.ADO |
Size | 2.5mm pitch |
Spacing | 0.31496062992126;8 in;mm |
Spacing | 0.31496062992126 In |
Temperature | -67 - 230 °F |
Temperature - Metric | -55 - 110 °C |
Type | DS2.5/8.P.ADO |
Width | 0.31496062992126 in |
Width | 8.001 mm |
Width | 0.315 in |
Width - Metric | 8 mm |
Wire Size | 0.00387476751394916 in² |
Wire Size | 2.5 mm² |
Similar Products

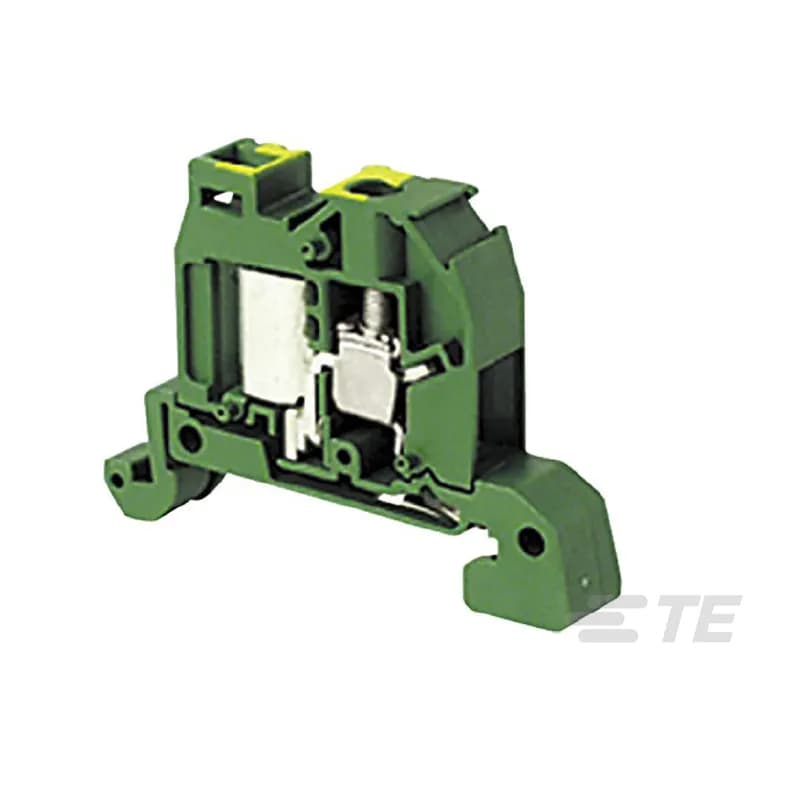

1SNA199527R1000
