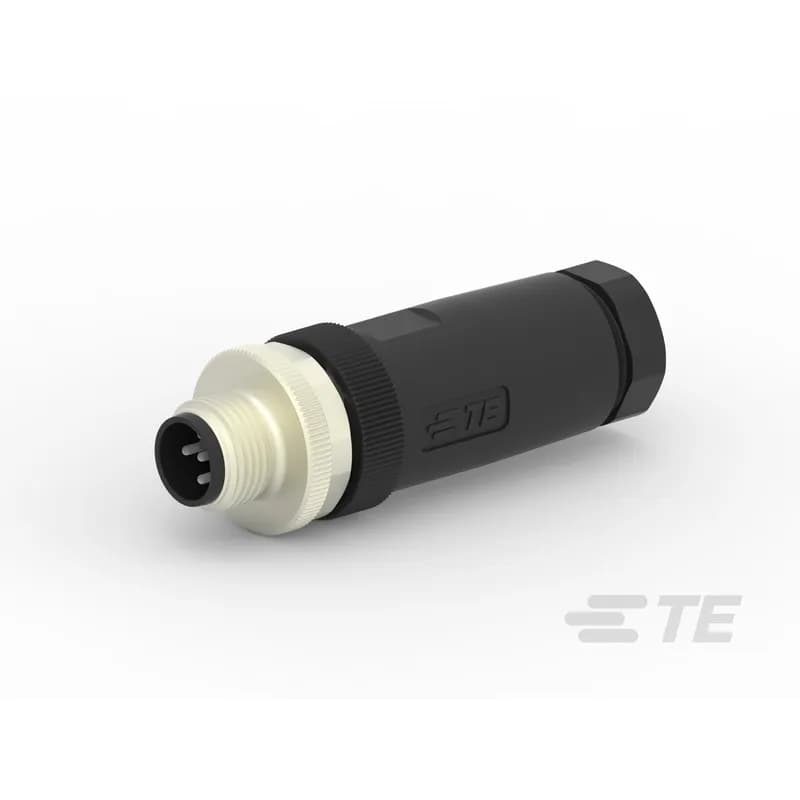

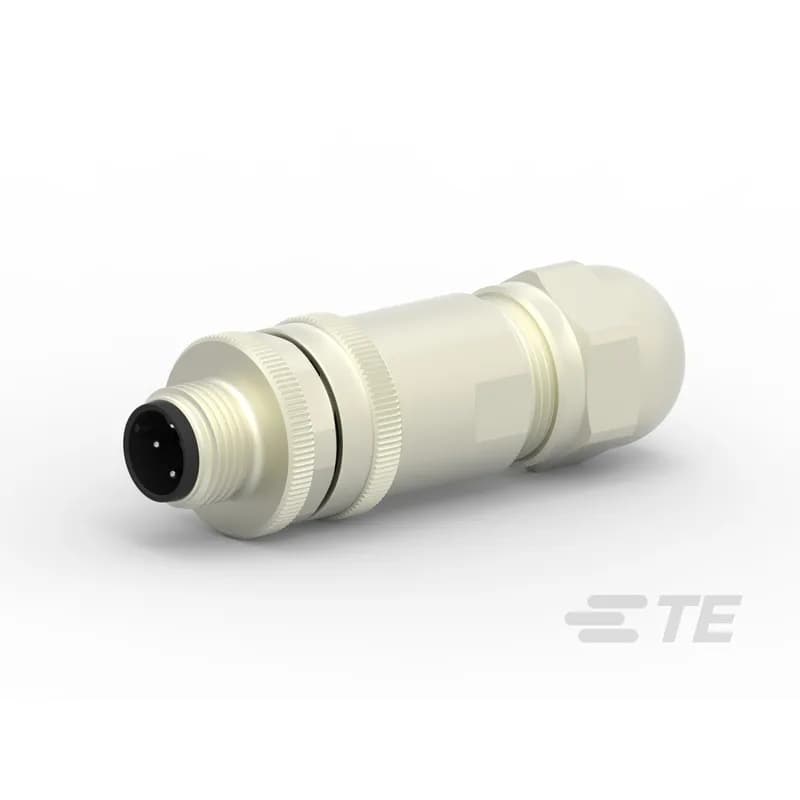

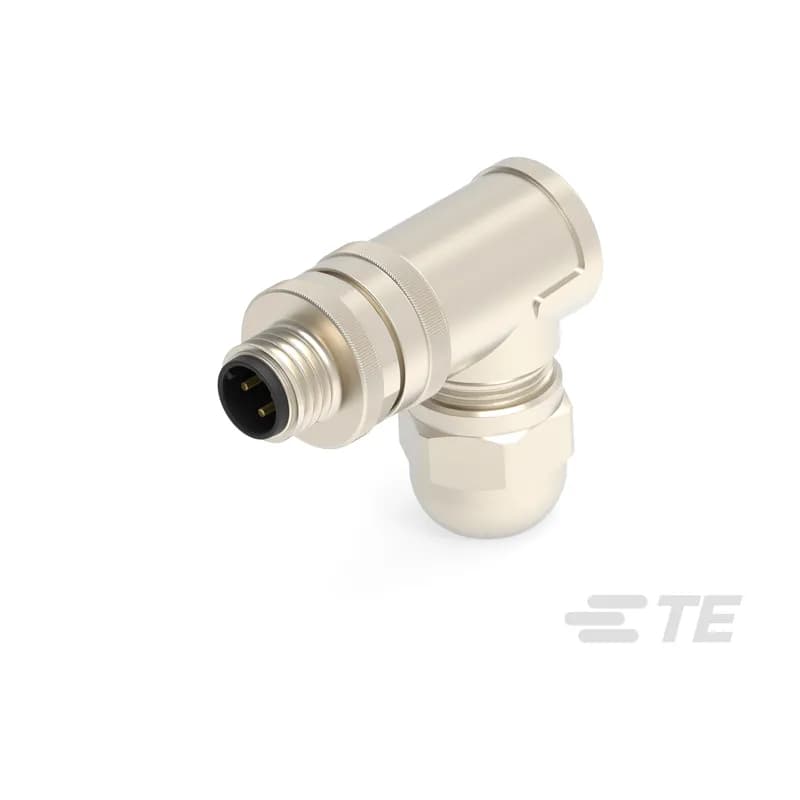

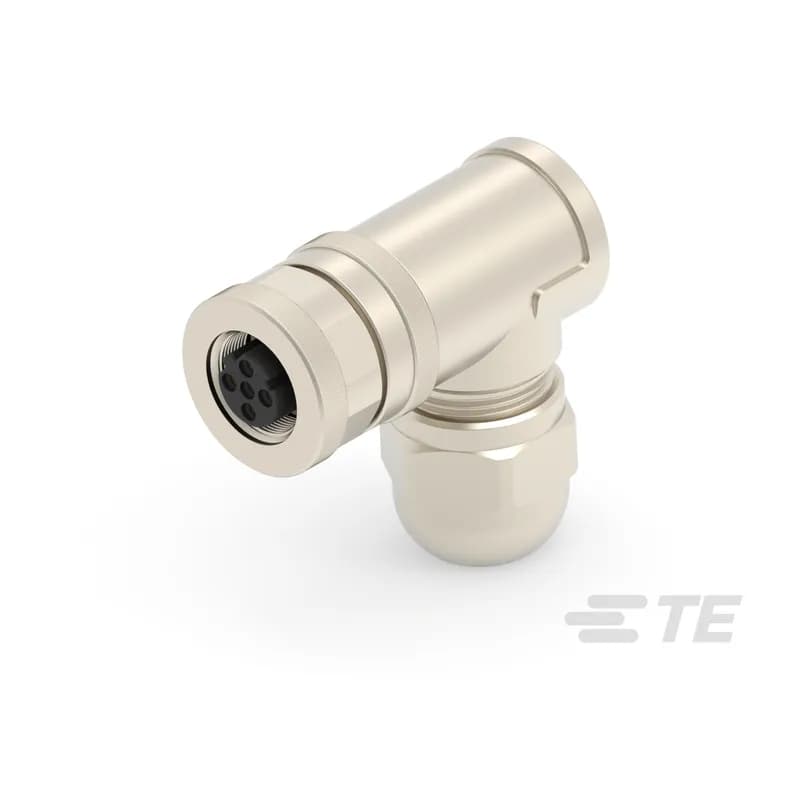

TE Connectivity 1SET310301R0000 - Standard Circular Connectors, Wire-to-Wire, 4 Position, Sealable, Wire & Cable, Signal, Nickel, Copper Alloy, D Polarization Code, M12 Connector

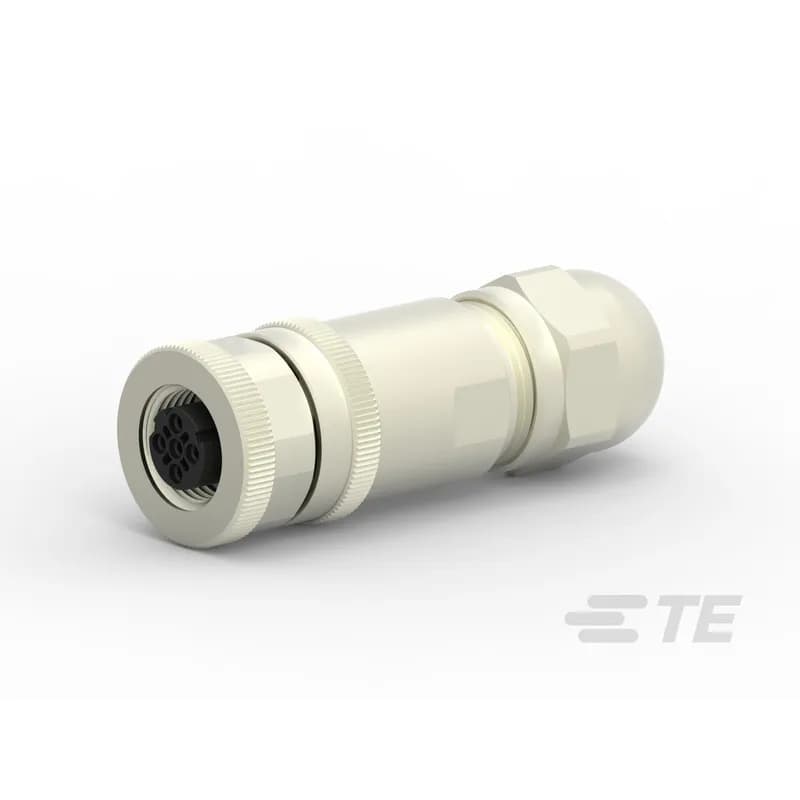

TE Connectivity 1SET310301R0000 Standard Circular Connectors, Wire-to-Wire, 4 Position, Sealable, Wire & Cable, Signal…

Alternate Item Number: 1SET310301R0000

Documents & Media
BrochureFull Engineering Drawing

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The TE Connectivity M12 4-Position Wire-to-Wire Circular Connector (SKU 1SET310301R0000) is a high-reliability signal connector designed for industrial automation, control systems, and machinery. Engineered with nickel-plated copper alloy contacts, it delivers consistent electrical performance in harsh environments while resisting corrosion and mechanical stress. The D polarization code ensures secure, mis-mating-proof connections, critical for applications where signal integrity cannot be compromised. This connector supports wire-to-wire configurations with a sealable interface, protecting against moisture, dust, and mechanical interference—ideal for outdoor or industrial settings. Compatible with M12 standard interfaces, it integrates seamlessly with sensors, actuators, and control panels, facilitating straightforward installation and maintenance. The compact design reduces downtime in operational environments, while the 4-position configuration efficiently routes signals for control and monitoring systems. Available in multiple variants (e.g., M12-4MS-1.0-M12-4FR-PUR, M12-4MR-1.0-M12-4FS-PUR), this series includes options for different cable lengths (1.0m, 3.0m, 5.0m) and configurations (straight/right-angle, shielded/unshielded). The PUR cable jacket provides durability and flexibility, while the nickel-plated contacts ensure long-term reliability. Trust this connector for dependable connectivity in high-stakes industrial processes where signal integrity is paramount.
  • 4-position configuration for efficient signal routing
  • Nickel-plated copper alloy contacts for corrosion resistance
  • D polarization code prevents mis-mating
  • Sealable interface protects against moisture and dust
  • Compatible with M12 standard interfaces for industrial automation

Specifications

Application
Signal
Connection Type
Wire-to-Wire
Connector Type
Socket
Connector Type - Metric
Socket
Current Rating
4 A
Current Rating - Metric
4 A
Finish
Nickel
IP Rating
IP67
Material
Nickel/Copper Alloy
Material
Nickel and Copper Alloy
Material
Nickel-Plated Copper Alloy
Material
Copper Alloy
Number of Positions
4
Number of Positions - Metric
4
Poles
4
Series
M12
Size
M12
Temperature Range
-40 - 185 F
Temperature Range
-40 - 85 C
Type
M12D-FS-4CON-PG9-SHU
Voltage Rating
250 V
Wire Size
18 - 24 Awg
Wire Size - Metric
18 - 24 Awg
Standard Circular Connectors, Wire-to-Wire, 4 Position, Sealable, Wire & Cable, Signal, Nickel, Copper Alloy, D Polarization Code, M12 Connector

1SET310413R0000

Standard Circular Connectors, Wire-to-Wire, 4 Position, Sealable, Wire & Cable, Signal, Nickel, Copper Alloy, D Polarization Code, M12 Connector
M8/M12 Cable Assemblies, Sensor/Actuator, 4 Position, A Keying Code, M12 Plug, M12 Socket, M12, Straight Connector Orientation (End A), M12 Connector

1SET314370R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 4 Position, A Keying Code, M12 Plug, M12 Socket, M12, Straight Connector Orientation (End A), M12 Connector
M8/M12 Cable Assemblies, Sensor/Actuator, 4 Position, A Keying Code, M12 Socket, M12 Pigtail, Straight Connector Orientation (End A), M12 Connector

1SET314193R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 4 Position, A Keying Code, M12 Socket, M12 Pigtail, Straight Connector Orientation (End A), M12 Connector
M8/M12 Cable Assemblies, Sensor/Actuator, 5 Position, A Keying Code, M12 Plug, M12 Socket, M12, M12 Connector

1SET314517R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 5 Position, A Keying Code, M12 Plug, M12 Socket, M12, M12 Connector
M8/M12 Cable Assemblies, Sensor/Actuator, 5 Position, A Keying Code, M12 Plug, M12 Socket, M12, Straight Connector Orientation (End A), M12 Connector

1SET314376R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 5 Position, A Keying Code, M12 Plug, M12 Socket, M12, Straight Connector Orientation (End A), M12 Connector
M8/M12 Cable Assemblies, Sensor/Actuator, 4 Position, A Keying Code, M12 Plug, M12 Socket, M12, Straight Connector Orientation (End A), M12 Connector

1SET314404R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 4 Position, A Keying Code, M12 Plug, M12 Socket, M12, Straight Connector Orientation (End A), M12 Connector
M8/M12 Cable Assemblies, Sensor/Actuator, 4 Position, A Keying Code, M12 Plug, M12 Socket, M12, Straight Connector Orientation (End A), M12 Connector

1SET314405R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 4 Position, A Keying Code, M12 Plug, M12 Socket, M12, Straight Connector Orientation (End A), M12 Connector
M8/M12 Cable Assemblies, Sensor/Actuator, 5 Position, A Keying Code, M12 Plug, M12 Socket, M12, Straight Connector Orientation (End A), M12 Connector

1SET314377R0000

M8/M12 Cable Assemblies, Sensor/Actuator, 5 Position, A Keying Code, M12 Plug, M12 Socket, M12, Straight Connector Orientation (End A), M12 Connector
