TE Connectivity 1423008-9 - General Purpose Power Relay, DC, Monostable, 2 Form A DPST-NO, 30 A Contact Rating, 24 VDC Coil Voltage, 277 VAC Contact Voltage, 1.7 W Coil Power. P&B T92 Series two-pole 30A Panel Mount or PCB Power Relay. 40-amp relays feature 2 form A (NO) and 2 form C (CO) switching capability. Designed to control compressor loads to 3.5 tons, 110LRA / 25.3FLA.
TE Connectivity

1423008-9

Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 120

Multiplier: 120

*Contact for lower quantities*

Overview

TE Connectivity’s P&B T92 Series is a two-pole DC power relay designed for general-purpose industrial control. This monostable relay features 2 Form A (DPST-NO) contacts with a 30A contact rating, making it suitable for compressor loads up to 3.5 tons (110LRA / 25.3FLA). The 24VDC coil operates at 1.7W power consumption, ensuring efficient switching in DC control circuits. The relay supports 277VAC contact voltage, providing compatibility with high-voltage industrial systems. The T92 Series is available in panel-mount or PCB-mount configurations, offering flexibility for integration into control panels or automated systems. Its compact design and reliable switching capability make it ideal for HVAC, refrigeration, and industrial machinery applications where consistent performance is critical. Key specifications include a 30A contact rating for handling high inrush currents, a 24VDC coil for direct DC control, and a 277VAC contact rating for compatibility with standard industrial voltages. The relay’s 1.7W coil power ensures low energy consumption while maintaining reliable operation. With TE Connectivity’s reputation for durable industrial components, the T92 Series delivers dependable switching performance in demanding environments. SKU: 1423008-9 | UNSPSC: 39122324
  • 2 Form A (DPST-NO) contacts with 30A rating
  • 24VDC coil voltage, 1.7W power consumption
  • Supports 277VAC contact voltage for industrial systems
  • Panel-mount or PCB-mount configurations
  • Designed for compressor loads up to 3.5 tons (110LRA / 25.3FLA)

Specifications

Amperage Rating
30 A
Application
Industrial controls
Coil Power
1.7 W
Connection
Quick Connect Terminals
Current Rating
30 A
Depth
2.7 in
Depth
68.58 mm
Enclosure
Dust Protected
Height
1.0402 in
Height
26.42 mm
Mounting
Panel
Mounting Type
Panel Mount or PCB
Operating Temperature, Maximum
185 F
Operating Temperature, Maximum
85 C
Operating Temperature, Minimum
-67 F
Operating Temperature, Minimum
-55 C
Poles
2 Form A (DPST-NO)
Resistance
350
Series
T92
Special Features
UL Coil Insulation Class F
Type
General Purpose Power Relay
Voltage Rating
24 VDC (Coil) / 277 VAC (Contact)
Width
1.3598 in
Width
34.54 mm
With LED Indication
NO
GMR-4MD DC125V 3W 2a2b EXP (GMR4M-22-22-ID-3W-S-E)

1274006600

GMR-4MD DC125V 3W 2a2b EXP (GMR4M-22-22-ID-3W-S-E)
DPDT 240V RELAY

90342

DPDT 240V RELAY

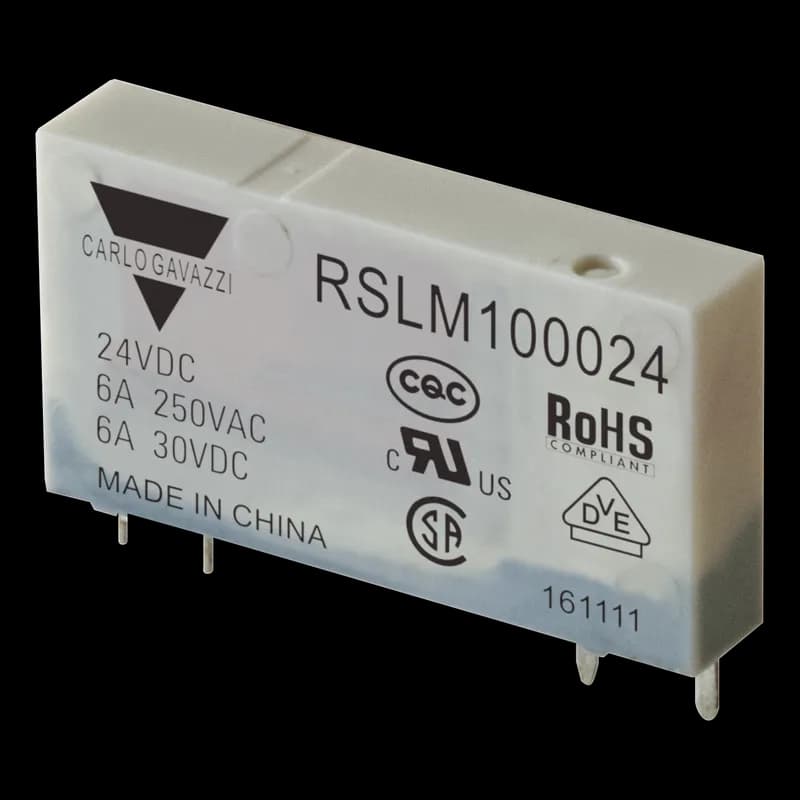

RELAY 6A, 24VDC COIL, SPST
