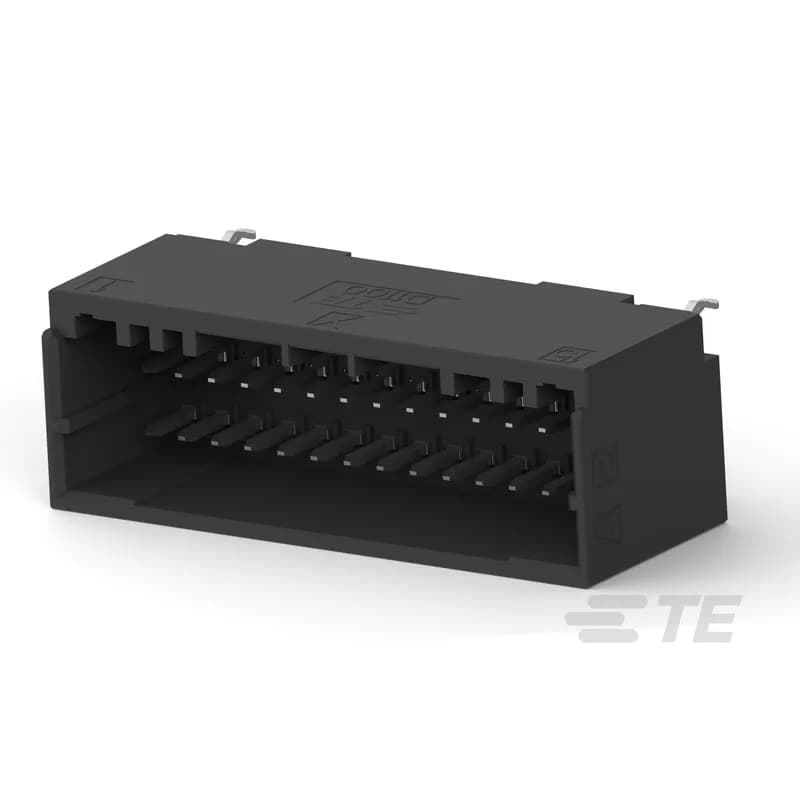

TE Connectivity 1-2329463-5 - PCB Mount Header, Vertical, Wire-to-Board, 30 Position, 2 mm [.079 in] Centerline, Fully Shrouded, Tin, Through Hole - Solder, Dynamic 1000 Series
TE Connectivity

1-2329463-5

Documents & Media
Full Engineering Drawing

Contact for Pricing

Minimum Qty: 14

Multiplier: 700

*Contact for lower quantities*

Overview

The TE Connectivity Dynamic 1000 Series PCB Mount Header (SKU: 1-2329463-5) delivers precise wire-to-board connectivity for high-density electronic assemblies. Engineered with a compact 2mm [0.079 in] centerline spacing and vertical PCB mounting configuration, this 30-position header provides robust interconnect solutions for dense circuit board designs where space is at a premium. The fully shrouded tin-plated construction ensures superior electrical performance with consistent signal integrity and enhanced mechanical durability against vibration and mechanical stress. Designed for through-hole solder termination, this header offers excellent mechanical strength and reliable electrical connections in demanding industrial, telecommunications, and automotive electronics applications. The fully shrouded design protects against accidental short circuits and provides guided insertion for mating connectors, reducing assembly errors. With a current rating of 3A per contact and operating temperature range of -40°C to +105°C, this connector meets the rigorous demands of high-reliability environments. Key applications include industrial control systems, telecommunications equipment, automotive ECUs, power supplies, and computing platforms requiring high-density interconnection. The Dynamic 1000 Series is part of TE Connectivity's proven connector portfolio, offering compatibility with standard 2mm pitch wire-to-board systems and supporting automated assembly processes. Available in both tin and gold plating options for corrosion resistance and signal integrity, this header provides a cost-effective solution without compromising on performance or reliability.
  • 30-position vertical PCB mount header with 2mm [0.079 in] centerline spacing
  • Fully shrouded tin-plated design for enhanced mechanical durability and corrosion resistance
  • Through-hole solder termination for secure mechanical strength and consistent signal integrity
  • Operating temperature range: -40°C to +105°C with 3A current rating per contact
  • Compatible with Dynamic 1000 Series connectors for high-density wire-to-board interconnection

Specifications

Connection Type
Wire-to-Board
Material
Tin
Mounting Type
Vertical PCB Mount
Poles
30
Series
Dynamic 1000 Series
Size
2 mm [.079 in] Centerline
