Contact for Pricing
Overview
- Supports 65 Vdc for reliable PoE power delivery
- Compatible with Category 5 and Category 6 cabling
- Female-to-female connection for seamless integration
- Compact dimensions: 2.3 x 1.00 x 0.80 inches
- Part of the durable SolaHD STC-POE series
Specifications
Application | Power protection and conditioning, surge suppression |
Brand Name | SolaHD |
Connection | Screw Terminals |
Height | .80 |
Length | 2.3 |
Mounting | 35mm DIN Rail |
Special Features | Low-Voltage data surge protection, Three-Stage hybrid technology, Sneak/Fault current protection with resettable fuses (PTCs), Low profile packaging, Easy installation, Fits standard 35 mm DIN Rail, Fast response time <1 nanosecond. |
Standard | UL Listed. UL 497B, RoHS Compliant |
Sub Brand | Edco |
Type | STC-DRS Series DIN Rail Protection |
Voltage Rating | 30 Volts |
Wattage | 300 VA |
Width | 1 |
Package Dimensions (L x W x H) | 10 IN x 11 IN x 0.15 IN |
Package Dimensions (L x W x H) | 25.4 cm x 27.94 cm x 0.381 cm |
Package Weight (Imperial) | 0.075 L |
Package Weight (Metric) | 0.034 kg |
STC-DRS-036
STC-DRS DIN Rail Power Protection and Conditioning Devices, Maximum Peak Voltage: 15 V, Nominal Breakdown Voltage 22
STC-DRS-232
STC-DRS Series, DIN Rail Protection, Surge Supressor, Max. Peak Voltage 15V, Nominal Breakdown Voltage 22V, Max., Peak Current 8X20 ms 10KA, Max. Continuous Current 150ma, Nominal Series Resistance 5 Ohms

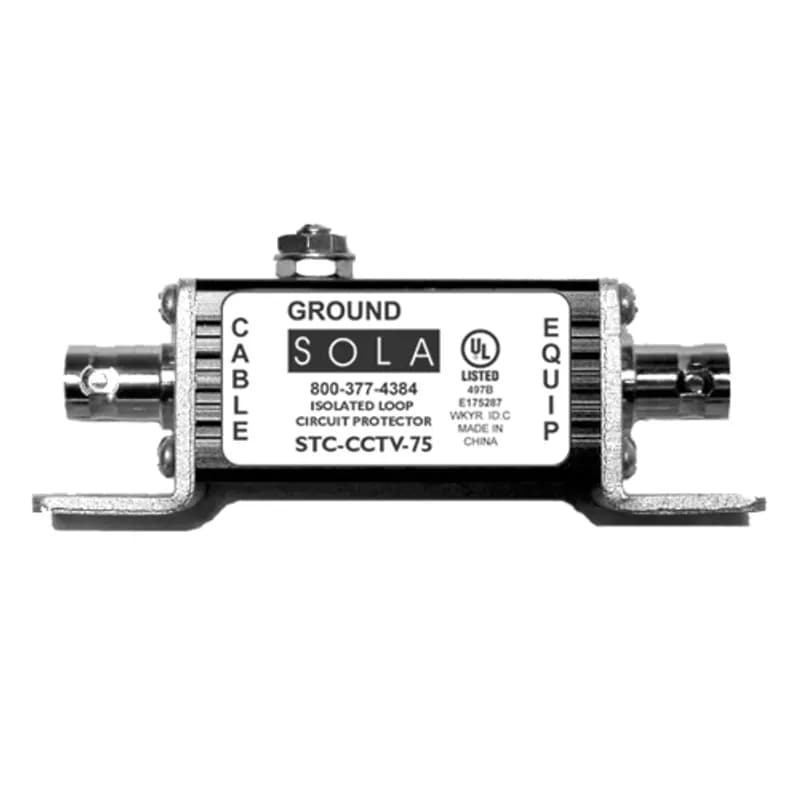

STC-CCTV-75
STC-CCTB Coax Series Power Protection and Conditioning Devices, Operating Voltage 5 V, Clamping Voltage 6 V, Without Isolated Ground

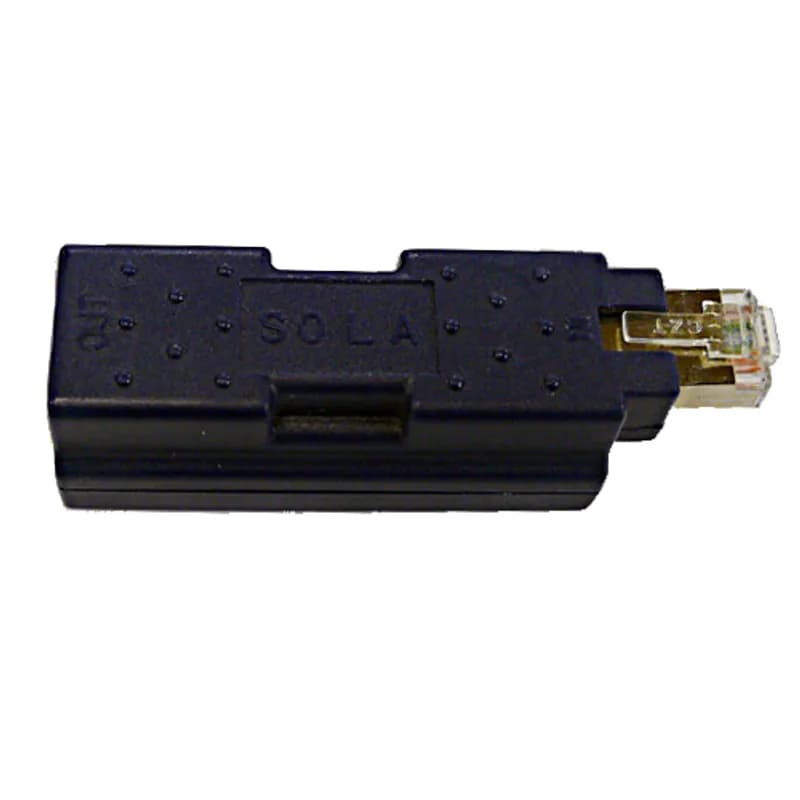

STC-P0E-65MF
STC-POE Series, Category 5 and 6 Power-over-Ethernet Connectors, Male to Female Connection, Voltage 65 Vdc, Dimensions: 2.3 x 1.00x .80
SDUEDC
SDU AC - A Series DIN Rail AC UPS, Enhanced DIN rail clip kit for securing SDUxxxA modes to DIN rail in high vibration or alternate recommended mounting positions
SDU850
SDU Series DIN Rail AC UPS, Wattage:510W, Capacity: 850 VA Voltage Rating:120V AC, Frequency Rating:50/60HZ, Back-Up Time: 2 Minutes
SDU2024
Features:16 to 12 AWG Wire Range,-20 to 50 DEG C Operating Temperature, Standard:UL (CANADA AND US), UL E61379, UL 508, CE: IEC/EN 60950-1, Voltage Rating:240Vdc, Amperage 20A, Mounting:DIN Rail, Enclosure:IP20, Environmental Conditions:0 to 95Percent Rel
SDU850-5
SDU Series DIN Rail AC UPS, Wattage: 510 W, Capacity: 850 VA Voltage Rating:230 V AC, Frequency Rating:50/60HZ, Back-Up Time: 2 MinutesFrequently Asked Questions
What Ethernet categories does the STC-P0E series support?
The STC-P0E series supports Category 5 PoE transmission lines and Category 6 applications.
What connectors does the STC-P0E-65FF model use?
The STC-P0E-65FF model uses female to female RJ-45 connectors.
What is the DC breakover voltage for this device?
The DC breakover voltage for the STC-P0E-65FF is 65 Vdc.
What is the insertion loss of the STC-P0E-65FF?
The STC-P0E-65FF has an insertion loss of less than 0.1 dB.
What transmission speeds are supported by the device?
The device supports certified transmission speeds of 10baseT, 100baseT, and 1000baseT.
What is the peak surge energy rating?
The peak surge energy rating for the STC-P0E-65FF is 300 Watt.
What is the response time of the surge protector?
The response time of the surge protector is less than 1 nanosecond.
What are the dimensions of the STC-P0E-65FF?
The dimensions of the STC-P0E-65FF are 2.30 x 1.00 x 0.80 inches.
What is the warranty period for this product?
The STC-P0E-65FF comes with a three-year limited warranty.
What are the maximum voltage and current ratings?
The device is suitable for applications up to 60 Vdc at 300 mA.
