Overview
- 24V DC nominal output voltage
- 10A nominal output current (240W total power)
- 115/230 Vac input voltage range
- 43-67 Hz operating frequency
- Compact DIN rail mounting for space-saving installations
Specifications
Amperage Rating | 1.65 - 0.55 AMP |
Application | Industrial Machine Control and Process, Conveying Equipment, Material Handling, Packaging Equipment |
Brand Name | SolaHD |
Cable Size | 16 - 10 AWG Solid AWG |
Efficiency | 88 PCT |
Environmental Conditions | 90 RH Humidity Range PCT |
Frequency Rating | 43 - 67 HZ |
Fuse Rating | Internally Fused |
Height | 4.85 |
Length | 1.97 IN |
Material | Metal Housing |
Mounting | DIN Rail |
Phase | 1 |
Special Features | Compact packaging to save space on the DIN rail, Visual diagnostic LEDs for input and output status at a glance, High MTBF means high reliability and long life, Higher efficiency saves energy and lowers amount of heat generated in panel, PowerBoostTM overload capability to start high inrush loads, Accepts Universal voltage 85-264 Vac, 50/60 Hz input, Active Power Factor Correction, Patented DIN rail mounting clip, User Adjustable output voltage accessible via front face, Parallel capability standard, Large, rugged, accessible screw terminals. |
Standard | UL (CANADA AND US), UL 508, UL 60950, CUL, CSA-C22.2, CE |
Type | SDN-C Compact DIN Rail Series |
Voltage Rating | 115 - 230 VAC |
Wattage | 12 WAT |
Width | 4.55 IN |
Package Dimensions (L x W x H) | 7.5 IN x 7.5 IN x 3.5 IN |
Package Dimensions (L x W x H) | 19.05 cm x 19.05 cm x 8.89 cm |
Package Weight (Imperial) | 2.500 L |
Package Weight (Metric) | 1.134 kg |
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
ACS380-040S-07A2-4
ACS380 AC Drive, 3-380-480V In, 3HP, 6A, Type OPEN, 1.5 overload, Integrated, HxWxD 6.69x2.76x7.52 in, Module
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
XT2NU3090BFF000XXX
C.BREAKER TMAX XT2N 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 90 I3=450...900 A
NNC75X75WH2
The NNC75X75WH2 Halogen-Free Wide Slot Wiring Duct is used to route, protect, and manage wires near sensitive electronic equipment and in environments where heat resistance or public safety is a concern. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95 C (203 F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 2.85" x 2.97" (72.4 mm x 75.4 mm) and 6.6' (2 m) long. Cover included. Color White. 5 pieces per package.
Frequently Asked Questions
What is the input voltage range for SDN10-24-480C?
The SDN10-24-480C operates on a nominal AC voltage range of 380-480 Vac (320-540 Vac) three-phase, or 600 Vdc (+/- 50 Vdc) nominal DC.
What is the output voltage and current of SDN10-24-480C?
The nominal output voltage is 24 V (adjustable 23.5-28.5 Vdc) with a nominal current of 10 A (240 W rated power).
What is the operating temperature range for the SDN10-24-480C?
The operating temperature range is -40°C to +60°C at full power, with linear derating to 75% power from +60°C to 70°C.
How is the SDN10-24-480C mounted?

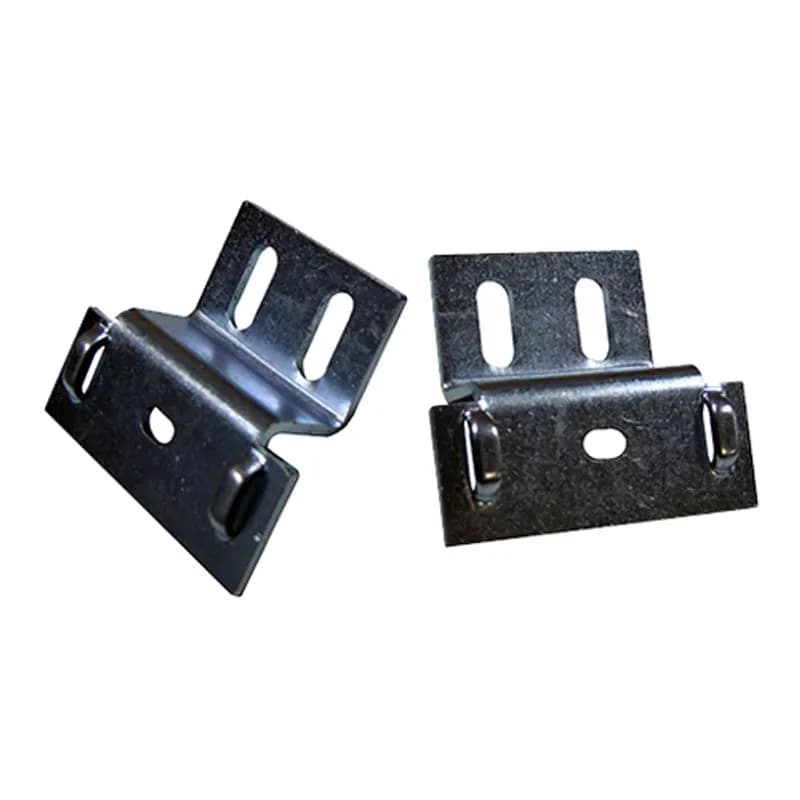

The unit can be simply snapped onto a DIN TS35/7.5 or TS35/15 rail system. Optional panel mount brackets are available for screw mounting.
What wire gauges are recommended for connections?
For input, use 16-10 AWG (1.5-6 mm2) solid conductors with 4.4 lb-in torque. For output, use 16-10 AWG (1.5-6 mm2) solid conductors with 7 lb-inch torque.
Does the SDN10-24-480C support parallel operation?
Yes, the SDN10-24-480C supports single or parallel operation, selectable via a front switch. For redundant operation, an external Redundancy module is used.
What diagnostic features does the power supply have?
It features three visual LEDs for input, output, and alarm status, and a DC OK relay providing diagnostic information to a PLC or controller.
What is the warranty period for this product?
The SDN10-24-480C comes with a 5-year limited warranty.
Can the SDN10-24-480C operate in hazardous locations?
Yes, it has extensive international hazardous location certifications, including Class I, Zone 2, ATEX, IECEx, ExEAC, with a T-Code rating of T4.
What is PowerBoost™ capability?
PowerBoost™ enables short duration overload capability, allowing the power supply to start loads with high inrush current.
