SolaHD

HS14F3CS-CE

Name: SolaHD HS14F3CS-CE 3kVA single-phase dry-type transformer, 190-440V primary, 110/220V secondary, copper wound, 50/60Hz.
Brand: SolaHD
SKU: HS14F3CS-CE
Availability: InStock

UPC: 783472871285

Contact for Pricing

Overview

The SolaHD HS14F3CS-CE is a 3.0 kVA single-phase dry-type distribution transformer designed for reliable industrial power conversion. This copper-wound transformer accepts a primary voltage range of 190V, 200V, 208V, 220V, 380V, 400V, 415V, or 440V and delivers a secondary output of 110V or 220V, operating at either 50Hz or 60Hz. With a current rating of 13.6A (or 6.8A) on the primary side and 27.3A (or 13.6A) on the secondary, it efficiently handles medium-load applications in industrial, commercial, and manufacturing environments. Built with rolled steel construction and copper windings, the HS14F3CS-CE ensures low energy loss, high thermal efficiency, and long-term reliability. Its compact footprint and compatibility with standard IEC mounting make it ideal for integration into control panels, automation systems, and small-scale machinery where space and performance are critical. The transformer’s wide voltage compatibility eliminates the need for multiple transformers, reducing inventory complexity and installation time. Applications include powering control circuits, lighting systems, motors, and sensitive electronic equipment. The HS14F3CS-CE is particularly suited for facilities operating on mixed-voltage systems or requiring flexible voltage adaptation. SolaHD’s rigorous testing and quality control ensure consistent performance under continuous duty cycles, providing operators with a dependable solution for voltage regulation and power distribution. Key benefits include reduced downtime, lower maintenance costs, and protection against voltage fluctuations. The transformer’s design prioritizes safety and efficiency, with robust insulation and thermal management to withstand harsh industrial conditions. For engineers and facility managers seeking a cost-effective, high-reliability transformer, the HS14F3CS-CE delivers proven performance across a broad spectrum of industrial applications.

3.0 kVA single-phase dry-type transformer
Primary voltage: 190/200/208/220/380/400/415/440V
Secondary voltage: 110/220V
Copper-wound construction for high efficiency and durability
Operates at 50Hz or 60Hz frequency

Specifications

Frequency	50/60 Hz
Material	Copper, Rolled Steel
Series	HS14F3CS-CE
Voltage Rating	190/200/208/220/380/400/415/440V Primary, 110/220V Secondary
Package Dimensions (L x W x H)	17 IN x 34 IN x 16.5 IN
Package Dimensions (L x W x H)	43.18 cm x 86.36 cm x 41.91 cm
Package Weight (Imperial)	152.0000 L
Package Weight (Metric)	68.9472 kg

015J0400AN

A - 15.0 kV bushing

034Z3000AW

O Plus C - 34.5 kV bushing

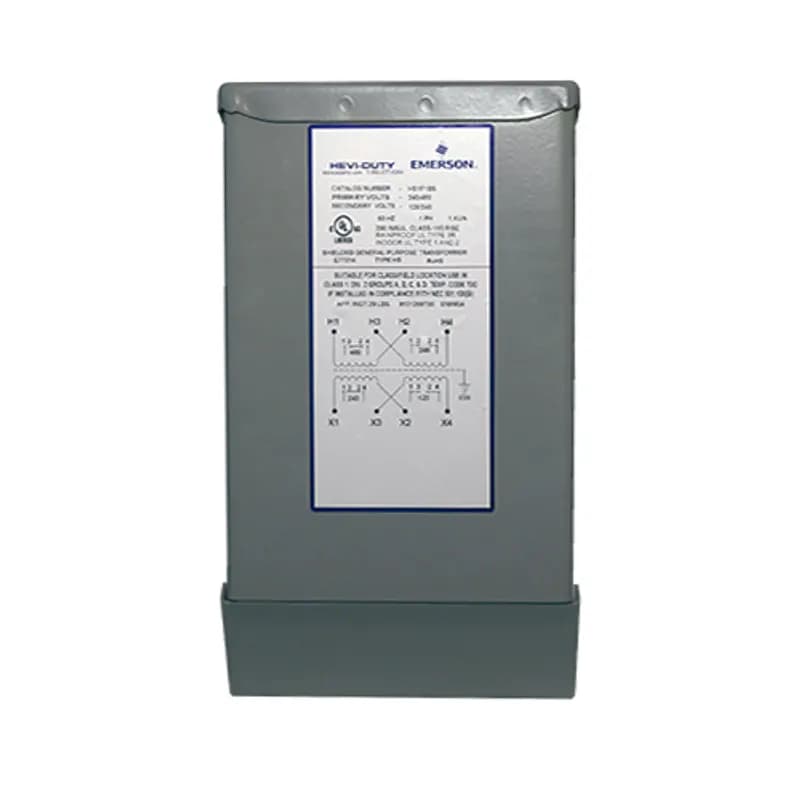

HSS1F1BS

Non-Ventilated Automation Transformer, Stainless Steel,1 kVA, Primary Amps 4.17/2.08, Secondary Amps 8.33/4.17, 240x 480 Primary, 120/240 Secondary, 60 HZ, Single Phase

C1F1C5PES

600V Class Commercial Potted Single Phase Distribution Transformer, 600 PV, 120/240 SV, 1.5 kVA

9T21S1250

ABB's Servicenter™ Single-Phase Integral Transformer and load center system comes equipped with an encapsulated transformer wired into rightly sized circuit breakers for both the primary and secondary transformer windings. Qualified to the seismic requirements of IEEE-693-2005 and IBC-2021 and CBC 2022. Accessible mounting flanges with keyhole slotted mounting holes to make installation easy. NEMA 3R painted enclosure. Clear, comprehensive documentation and labeling. The Servicenter system is UL Listed and is suitable for use service equipment with a 10 kAIC short circuit current rating. The load center portion of this system is ready to accept the ABB THQL plug-on circuit breakers.

431-ENC-15-012

15 kVA Encapsulated Transformer

Frequently Asked Questions

What frequency does this transformer operate at?

The transformer operates at either 50Hz or 60Hz frequency.

What type of winding does the HS14F3CS-CE use?

The transformer features copper-wound windings for high efficiency and durability.

What primary voltages does the HS14F3CS-CE support?

The transformer accepts primary voltages of 190V, 200V, 208V, 220V, 380V, 400V, 415V, or 440V.

What are the secondary voltage options for this transformer?

The secondary output is available in 110V or 220V configurations.

What is the construction material of the transformer?

The transformer uses rolled steel construction for robust durability.

What is the current rating of the HS14F3CS-CE?

The primary current rating is 13.6A or 6.8A, and the secondary current rating is 27.3A or 13.6A.

Can this transformer be used for control panel applications?

Yes, its compact design and reliable performance make it ideal for control panel integration.

Is the HS14F3CS-CE suitable for continuous duty?

Yes, the transformer is designed for continuous operation in industrial environments.
