Socomec 57035006 - RM cylind. fuse holder without sign. aux. cont.-100A-4P-NFC-Fuse 22x58
Socomec

57035006

Contact for Pricing

Overview

The Socomec RM cylindrical fuse holder, SKU 57035006, is a modular fuse disconnect switch designed for reliable low-voltage electrical circuit protection. This 4-pole (4P) device is rated for 100A and is specifically engineered to accommodate standard 22x58mm cylindrical fuses. It provides essential overcurrent protection, safeguarding equipment and personnel from surges and short-circuits by enabling safe and rapid circuit isolation. The RM series is recognized for its robust construction and adherence to industry standards, ensuring dependable performance in industrial electrical distribution systems. Its compact, panel-mountable design, suitable for DIN rail applications, makes it a practical choice for space-constrained electrical enclosures. This model features no auxiliary contact, simplifying its integration into systems where additional signaling is not required. The NFC designation indicates compliance with relevant NFC standards for fuse holders. Manufactured in the US, the Socomec 57035006 offers a dependable solution for circuit isolation and overcurrent protection in various industrial settings.
  • 100A current rating for robust protection
  • 4-pole configuration for multi-phase circuits
  • Accommodates standard 22x58mm cylindrical fuses
  • Modular design for easy panel and DIN rail mounting
  • NFC compliant for electrical safety standards

Specifications

Current Rating
100A
Current Rating
100 A
Mounting Type
DIN Rail
Mounting Type
Panel Mounting / DIN Rail
Mounting Type
Panel mounting, DIN rail
Poles
4P
Series
RM
Size
22x58 mm
Size
22x58mm
Size
22x58
Voltage Rating
500 V AC/DC
Voltage Rating
500V AC/DC
Package Dimensions (L x W x H)
0.5248 FT x 0.4428 FT x 0.2788 FT
Package Dimensions (L x W x H)
0.16 m x 0.135 m x 0.085 m
Package Weight (Imperial)
1.500 L
Package Weight (Metric)
0.682 kg
RM cylind. fuse holder without sign. aux. cont.-100A-2P-NFC-Fuse 22x58

57035002

RM cylind. fuse holder without sign. aux. cont.-100A-2P-NFC-Fuse 22x58
Fuse Holder Modulostar® Size 22x58 IEC 690VAC 690VDC 3-Pole+N Microswitch compatible IP20

M331073

Fuse Holder Modulostar® Size 22x58 IEC 690VAC 690VDC 3-Pole+N Microswitch compatible IP20

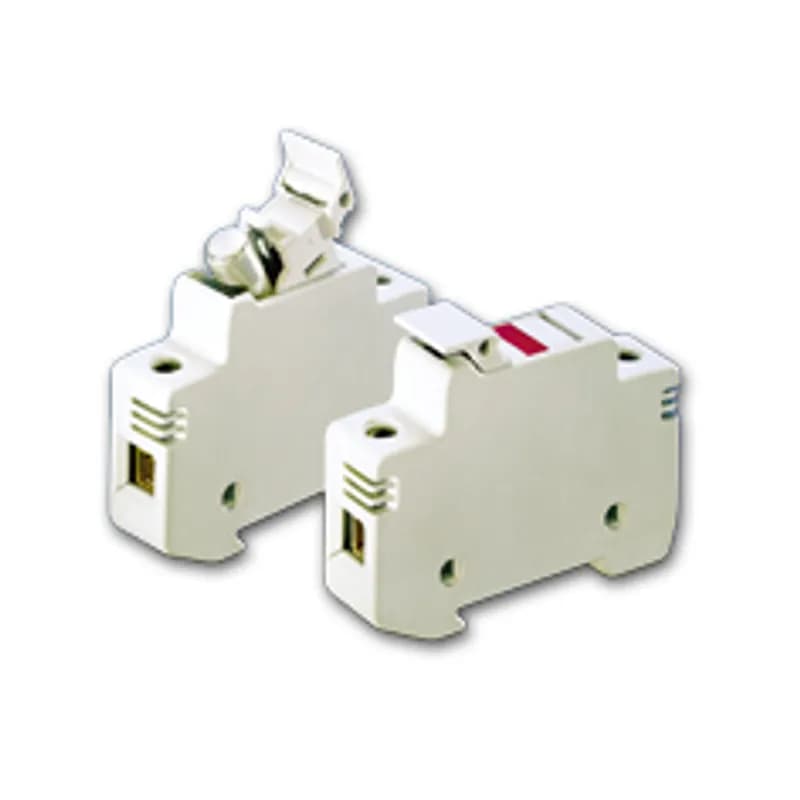

10x38mm CYLINDRICAL FUSEHOLDER 10 83A. The CYH Series fuse holders are designed to hold cylindrical 10x38, 14x51 and 22x58 mm fuses. The CYH series features a compact IP20 touch-safe design for maximum space savings and safety. Features/Benefits: Compact design IP20 Finger-Safe Design. 35 mm DIN Rail Mountable. Made of a polymer high performance with a fusion temperature more than 300 °C. This provides a safety margin against a possible overheating of the fuse.

CYH10383

10x38mm CYLINDRICAL FUSEHOLDER 10 83A. The CYH Series fuse holders are designed to hold cylindrical 10x38, 14x51 and 22x58 mm fuses. The CYH series features a compact IP20 touch-safe design for maximum space savings and safety. Features/Benefits: Compact design IP20 Finger-Safe Design. 35 mm DIN Rail Mountable. Made of a polymer high performance with a fusion temperature more than 300 °C. This provides a safety margin against a possible overheating of the fuse.

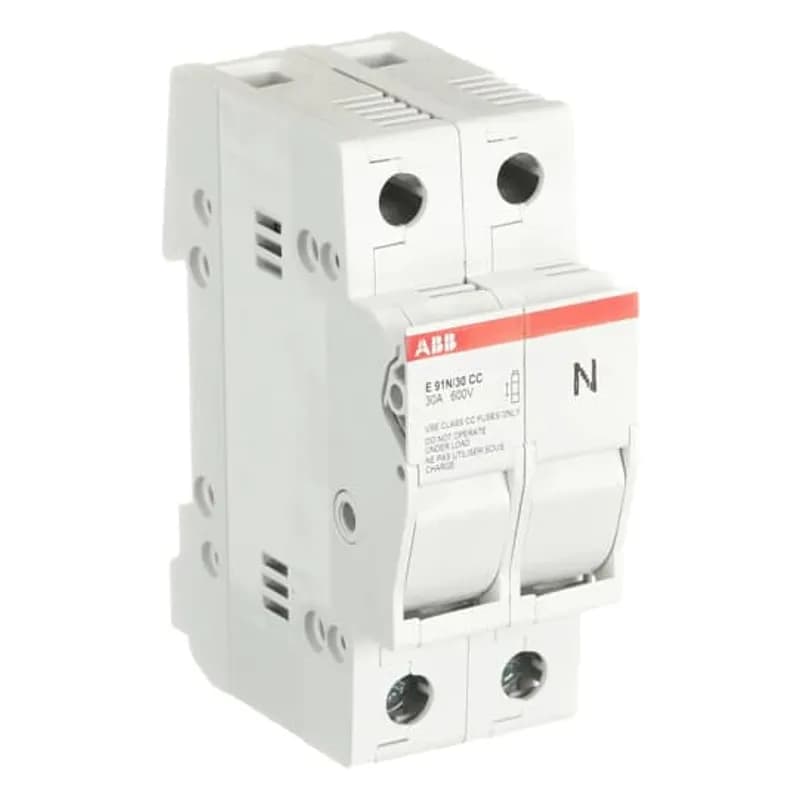

E 91N/30 CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses
