Overview

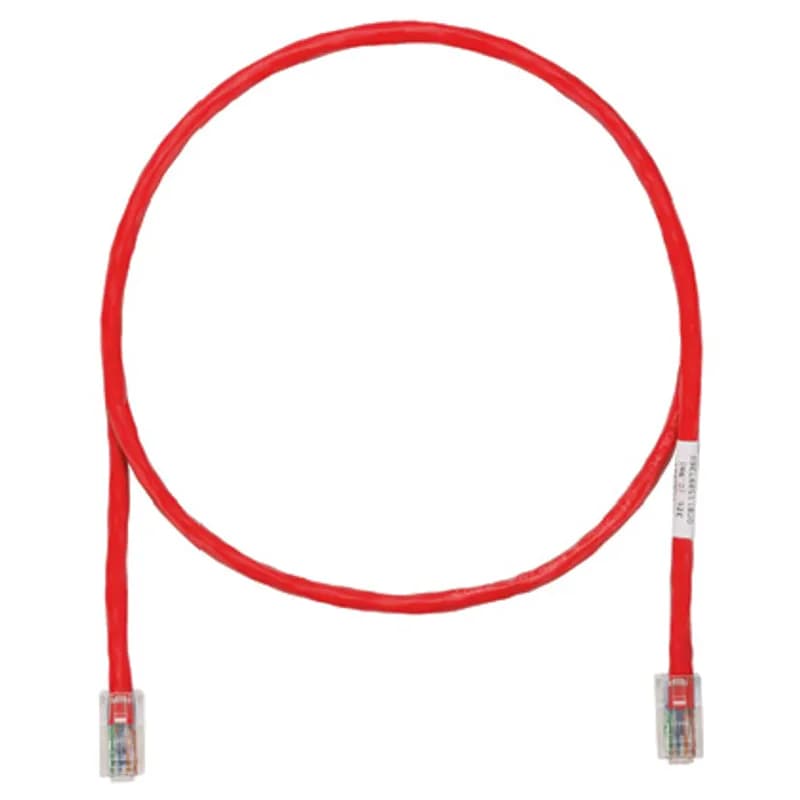

- Category 5e UTP patch cord with Pan-Plug modular plugs
- 19-foot length with red jacket for easy identification
- Supports data transmission up to 1 Gbps at 100 MHz
- 8P8C (RJ45) connectors for standard Ethernet compatibility
- Manufactured in the US by Panduit for reliability
Specifications
Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
Boot Type | Modular Plug |
Cable Type* | U/UTP |
Color | Red |
Conductor Material | Copper |
Connection Type | UTP |
Connection Type | Pan-Plug Modular Plugs |
Frequency | 1 GHz |
Frequency | 100 MHz |
Length | 19 In. |
Material | Cat 5e UTP |
Material | Unshielded Twisted Pair (UTP) stranded CM-rated cable |
Material | Unshielded Twisted Pair (UTP) stranded CM cable |
Material | Category 5e UTP |
Material | UTP (Unshielded Twisted Pair) |
Outside Diameter | 0.21 In. |
Performance Level* | Category 5e |
Plug Type | Modular Plug |
Series | TX5e |
Series | Cat 5e |
Series | Category 5e UTP Patch Cord |
Series | Category 5e |
Size | 19 ft |
Standard | Exceeds all ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Edition 2.1 standards for all frequencies from 1 to 100 MHz; Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7; UL 1863; Meets requirements of IEEE 802.3af and IEEE 802.3at f |
Temperature Rating | 140 F |
Type | Patch Cord |
Wire Size | 24 AWG |
Package Dimensions (L x W x H) | 9 IN x 11 IN x 1.5 IN |
Package Weight (Imperial) | 1.56 lbs |
SVNDZ-P167GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color GraySVNDZ-P137GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 13.5, Fits to Conduit Size NW/Metric 17/20, Color Gray
A802
Steel Raceway Joiner with GoldGalv finish, reinforcing plate and nuts. For use with 'A' series channel.
A238
Two Gang Outlet Box, Volume 38 Cubic Inches, Length 3.844 Inches, Width 3.53 Inches, Depth 3.45 Inches, Number of Knockout 5, Knockout Size 1/2 Inch, 3/4 Inch, and 1 Inch, Color Blue, Material PVC
MPNY-1000-0-C
Cable Tie Mounting Base, UV Black Nylon 6.6 for Temperatures up to 70 Degrees Celsius (158 F), Length of 25.14mm (0.99 Inches), Width of 25.14mm (0.99 Inches), Height of 5.08mm (0.198 Inches), Mechanical Strength 50 Newtons (11 Pounds), Hole Size #6, Synthetic Rubber Mounting Method, 100 PackMPNY-1000A-9-C
Cable Tie Mounting Base, Natural Nylon 6.6 for Temperatures up to 70 Degrees Celsius (158 F), Length of 28.58mm (1.125 Inches), Width of 28.58mm (1.125 Inches), Height of 5.08mm (0.20 Inches), Acrylic Adhesive Method, 100 Pack
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
Frequently Asked Questions
What are the specifications of UTPCH16BUY?
The UTPCH16BUY is a 16-foot, Category 5e/Class D UTP patch cord made of 24 AWG stranded copper cable.
What is the cable diameter of UTPCH16BUY?
The nominal diameter of the cable is 0.215 in (5.5 mm).
What wiring schemes are compatible with this patch cord?
The patch cord is compatible with both T568A and T568B wiring schemes.
Is the patch cord PoE compliant?
Yes, it meets the requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
What is the maximum bandwidth supported?
The patch cord supports usable bandwidth beyond 100 MHz, suitable for Gigabit Ethernet performance.
How many mating cycles is the plug rated for?
The plug is rated for 2500 mating cycles, ensuring durability.
What safety compliance standards does it meet?
The patch cord meets ANSI/TIA-968-A requirements and is UL 1863 approved.
What is the flammability rating of the cable?
The cable has a flammability rating of CM or LSZH.
What colors are available for the patch cord?
The patch cord is available in multiple colors including Black, Blue, Green, Red, Yellow, Orange, and Violet.
What is the maximum length available for this patch cord?
The patch cord is available in lengths up to 40 feet or 10 meters.
