Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Overview

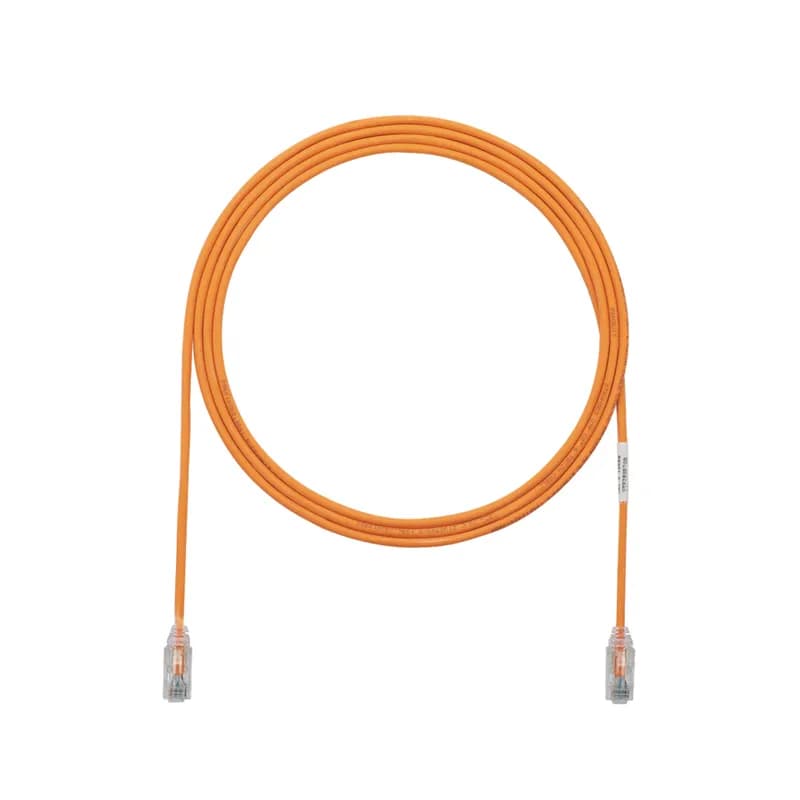

- Category 6 performance for up to 1GbE data transmission
- 28 AWG conductors for increased flexibility and density
- TX6 Modular Plugs ensure reliable connectivity
- 4.5 meter length in vibrant orange color
- Manufactured in the USA for dependable network infrastructure
Specifications
Application | (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM (3) Digital video and broadband/baseband analog video, Voice/data systems (4) Voice over Internet Protocol (VoIP) |
Boot Type | Modular Plug |
Cable Type* | U/UTP |
Color | Orange |
Conductor Material | Copper |
Connection Type | Modular Plug (TX6) |
Connection Type | TX6 Modular Plugs |
Connection Type | Modular Plugs |
Frequency | 250 MHz |
Length | 14.76 In. |
Material | Copper |
Material | UTP (Unshielded Twisted Pair) |
Material | UTP |
Outside Diameter | 0.15 In. |
Performance Level* | Category 6 |
Plug Type | Modular Plug |
Poles | 8P8C |
Series | Category 6 Performance |
Series | UTP28SP |
Series | Category 6 UTP Patch Cord |
Size | 4.5 meters |
Standard | Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz, Meets ANSI/TIA-1096-A (formerly FCC Part 68), Meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802 |
Temperature Rating | 167 F |
Type | Patch Cord |
Wire Size | 28 |
Package Dimensions (L x W x H) | 17.456 IN x 10.336 IN x 4.542 IN |
Package Weight (Imperial) | 9.22 lbs |
CPPKL6G24WBL
The Mini-Com Modular Patch Panel Kit includes 24 Mini-Com Cat 6 TG Jack Modules for unshielded applications, is 1 RU, and mounts to 19 inch and 23 inch racks and cabinets. The panel offers front access, includes label pockets for easy identification, and is black.
SVNDZ-P167GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color GraySVNDZ-P137GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 13.5, Fits to Conduit Size NW/Metric 17/20, Color Gray
A802
Steel Raceway Joiner with GoldGalv finish, reinforcing plate and nuts. For use with 'A' series channel.
A238
Two Gang Outlet Box, Volume 38 Cubic Inches, Length 3.844 Inches, Width 3.53 Inches, Depth 3.45 Inches, Number of Knockout 5, Knockout Size 1/2 Inch, 3/4 Inch, and 1 Inch, Color Blue, Material PVC
MPNY-1000-0-C
Cable Tie Mounting Base, UV Black Nylon 6.6 for Temperatures up to 70 Degrees Celsius (158 F), Length of 25.14mm (0.99 Inches), Width of 25.14mm (0.99 Inches), Height of 5.08mm (0.198 Inches), Mechanical Strength 50 Newtons (11 Pounds), Hole Size #6, Synthetic Rubber Mounting Method, 100 Pack
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
Frequently Asked Questions
What is the operating temperature range?
The operating temperature range is 14°F to 167°F (-10°C to 75°C).
What is the storage temperature range?
The storage temperature range is -40°F to 158°F (-40°C to 70°C).
What are the cable specifications for UTP28SP4.5MOR-Q?
The UTP28SP4.5MOR-Q is a Category 6/Class E, 28 AWG, unshielded twisted pair patch cord with high performance RJ45 modular plugs.
Is the patch cord compliant with PoE standards?
Yes, it supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications.
What types of applications does this patch cord support?
It supports applications like 1000BASE-T, 100BASE-T, ATM, digital video, and VoIP systems.
What is the diameter of the cable?
The nominal diameter of the cable is 0.150 inches (3.8mm).
What is the compliance with safety standards?
The product is cULus Listed and complies with UL 1863 and CAN/CSA-C22.2.
What is the maximum length supported for channels?
The patch cords support 96 meter channels with 90 meter permanent links and 93 meter channels with 10 meters of patch cords.
What is the flammability rating of the cable?
The cable has a CM/LSZH dual-rated flammability rating.
What is the construction material of the plug housing?
The plug housing is made of UL94V-0 rated clear Polycarbonate.
