Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*
Overview

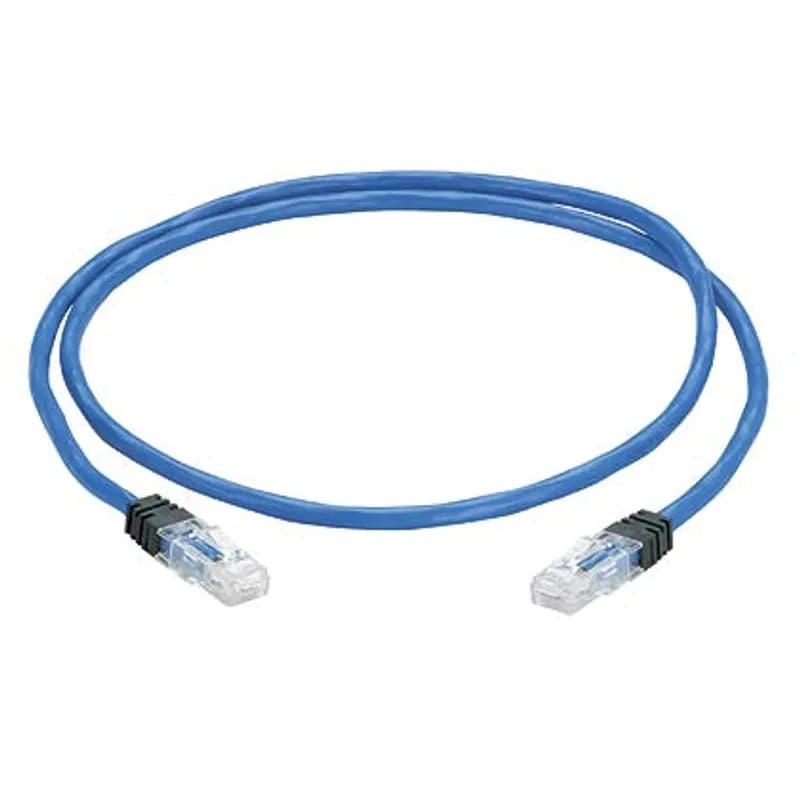

- 80-foot Cat6 UTP Zone Cord in blue for structured cabling.
- Constructed with 23 AWG solid, unshielded twisted pair CMR cable.
- Features high-performance TX6 PLUS modular plugs for reliable connectivity.
- Solid conductor design ensures stable permanent link performance.
- RapidID enabled with pre-installed barcodes for simplified port mapping.
Specifications
Application | Provide an efficient and cost effective way to design and deploy cabling systems in data centers and open office architecture environments |
Boot Type | Modular Plug |
Cable Type* | U/UTP |
Color | Blue |
Conductor Material | Copper |
Length | 80 In. |
Outside Diameter | 0.235 in |
Outside Diameter | 5.969 mm |
Performance Level* | Category 6 |
Plug Type | Modular Plug |
Standard | Exceeds all ANSI/TIA 568.D-2, Category 6 ISO 11801 Class E, EN50173-1: 2002 (LSZH) channel and permanent link standards requirement;Meets ANSI/TIA-1096-A requirements;Meets IEC 60603-7;Meets IEEE 802.3af IEEE 802.3bt and IEEE 802.3at for PoE application |
Temperature Rating, Maximum | 140 F |
Temperature Rating, Maximum | 60 C |
Temperature Rating, Minimum | 140 F |
Temperature Rating, Minimum | 60 C |
Type | Zone Cable Assembly |
Wire Size | 24 AWG |
Package Dimensions (L x W x H) | 14 IN x 20 IN x 1.5 IN |
Package Weight (Imperial) | 2.46 lbs |
CPPKL6G24WBL
The Mini-Com Modular Patch Panel Kit includes 24 Mini-Com Cat 6 TG Jack Modules for unshielded applications, is 1 RU, and mounts to 19 inch and 23 inch racks and cabinets. The panel offers front access, includes label pockets for easy identification, and is black.
SVNDZ-P167GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color GraySVNDZ-P137GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 13.5, Fits to Conduit Size NW/Metric 17/20, Color Gray
A802
Steel Raceway Joiner with GoldGalv finish, reinforcing plate and nuts. For use with 'A' series channel.
A238
Two Gang Outlet Box, Volume 38 Cubic Inches, Length 3.844 Inches, Width 3.53 Inches, Depth 3.45 Inches, Number of Knockout 5, Knockout Size 1/2 Inch, 3/4 Inch, and 1 Inch, Color Blue, Material PVC
MPNY-1000-0-C
Cable Tie Mounting Base, UV Black Nylon 6.6 for Temperatures up to 70 Degrees Celsius (158 F), Length of 25.14mm (0.99 Inches), Width of 25.14mm (0.99 Inches), Height of 5.08mm (0.198 Inches), Mechanical Strength 50 Newtons (11 Pounds), Hole Size #6, Synthetic Rubber Mounting Method, 100 Pack
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
Frequently Asked Questions
What is the installation temperature range?
The installation temperature range is -40°F to 158°F (-40°C to 70°C).
Is the cable suitable for PoE applications?
Yes, the cable meets IEEE 802.3af and IEEE 802.3at standards for PoE applications.
What is the operating temperature range?
The operating temperature range is 14°F to 167°F (-10°C to 75°C).
What compliance standards does the product meet?
The product meets ANSI/TIA-1096-A, IEC 60603-7, and RoHS compliance standards.
What is the diameter of the cable?
The cable diameter is 0.240 inches (6.1 mm) nominal.
What wiring guidelines are followed?
The cable assemblies are wired according to T568B guidelines.
What is the cable assembly construction?
The cable assemblies are constructed of Category 6, 23 AWG, solid, UTP, twisted pair cable.
How many mating cycles is the cable rated for?
The cable is rated for 2500 mating cycles.
What types of terminations are available?
The cable assemblies are available in plug-to-plug or jack-to-plug termination configurations.
What is the purpose of the RapidID™ Network Mapping System?
The RapidID™ Network Mapping System enables faster tracing, placing, and network documentation.
