Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*

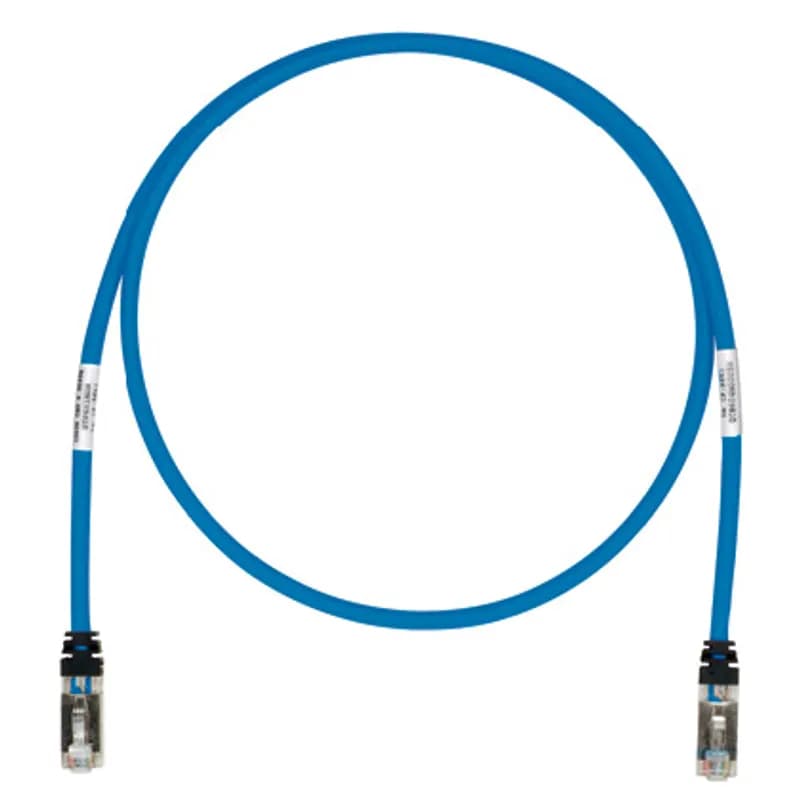

Overview
- Cat 6A performance for 10GBASE-T and 1000BASE-T applications
- S/FTP shielding reduces EMI/RFI interference in noisy environments
- 1-foot length with blue jacket for easy identification
- 25-unit pack for bulk installations and cost efficiency
- Meets TIA/EIA-568-C.2 standards for structured cabling
Specifications
Application | (1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging |
Boot Type | Modular Plug |
Cable Type* | S/FTP |
Color | Blue |
Conductor Material | Copper |
Length | 1 In. |
Outside Diameter | 0.25 In. |
Performance Level* | Category 6A |
Plug Type | Modular Plug |
Standard | ANSI/TIA-568-C.2, ISO 11801 Class EA, IEEE 802.3af, 802.3at, 802.3bt type 3 and type 4, UL 1863, RoHS Compliant |
Temperature Rating | 140 F |
Type | Patch Cord |
Wire Size | 26 AWG |
Package Dimensions (L x W x H) | 9.4 IN x 7.5 IN x 3.8 IN |
Package Weight (Imperial) | 1.26 lbs |
NK6XPPG24Y
The NetKey Cat 6A UTP Flat Punchdown Patch Panel terminates 4-pair, 22 26 AWG, twisted pair cable. These Cat 6A patch panels mount to 19 inch and 23 inch racks and incude 24 ports. Each module is 100% factory tested to exceed industry standard performance requirements, and are individually serialized for traceability. The punchdown patch panel is 1 RU, made of steel, and is black.
SVNDZ-P167GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color GraySVNDZ-P137GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 13.5, Fits to Conduit Size NW/Metric 17/20, Color Gray
A802
Steel Raceway Joiner with GoldGalv finish, reinforcing plate and nuts. For use with 'A' series channel.
A238
Two Gang Outlet Box, Volume 38 Cubic Inches, Length 3.844 Inches, Width 3.53 Inches, Depth 3.45 Inches, Number of Knockout 5, Knockout Size 1/2 Inch, 3/4 Inch, and 1 Inch, Color Blue, Material PVC
MPNY-1000-0-C
Cable Tie Mounting Base, UV Black Nylon 6.6 for Temperatures up to 70 Degrees Celsius (158 F), Length of 25.14mm (0.99 Inches), Width of 25.14mm (0.99 Inches), Height of 5.08mm (0.198 Inches), Mechanical Strength 50 Newtons (11 Pounds), Hole Size #6, Synthetic Rubber Mounting Method, 100 Pack
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
Frequently Asked Questions
What standards do the patch cords meet?
The patch cords are certified to ISO 11801 Class E A, IEEE 802.3an-2006, and ANSI/TIA-568.2-D Category 6A standards.
What is the construction of the patch cords?
The patch cords are constructed of 26 AWG shielded twisted pair stranded copper cable with an enhanced performance shielded modular plug at each end.
What is the cable diameter of the patch cords?
The cable diameter is 0.240 inches (6.1mm) nominal.
Are the patch cords PoE compliant?
Yes, the patch cords are rated for PoE with IEEE 802.3af, 802.3at, and 802.3bt type 3 and type 4.
What wiring schemes are compatible with the patch cords?
The patch cords are compatible with both T568A and T568B wiring schemes.
What is the maximum operating frequency?
The patch cords support frequencies up to 500 MHz.
What lengths are available for the patch cords?
Lengths range from 3 to 20 feet and 0.5 to 10 meters, with additional lengths available up to 40 feet or 40 meters.
What is the rated mating cycle for the patch cords?
The patch cords are rated for 2500 mating cycles.
What is the flame rating of the patch cords?
The patch cords meet IEC 60332-1, IEC 60754-1, and IEC 61034-2 flame ratings.
What color options are available for the patch cords?
Color options include Black, Blue, Green, Red, Yellow, Orange, and Violet, among others.
