Panduit SP6X88PHD-C - The Cat 6A UTP modular plug terminates to Panduit PUP6AHD04*-G Plenum 4-pair, 23 AWG, 100 ohm, solid, UTP cable with conductor insulation diameter of 0.040 inches (1.01mm) to 0.046 inches (1.17mm) and jacket diameter of 0.220 inches (5.58mm) to 0.240 inches (6.10mm). The plug has a robust construction that is rated to 2500 mating cycles with a tangle-free latch to prevent snags and provide easy release, saving time and providing reliability on moves, adds, and changes. Includes 100 per package.
Panduit

SP6X88PHD-C

UPC: 613056888876

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification Sheet

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The Panduit SP6X88PHD-C is a Cat 6A Unshielded Twisted Pair (UTP) modular plug, supplied in a package of 100. This plug is specifically designed for terminating Panduit PUP6AHD04*-G Plenum 4-pair, 23 AWG solid UTP cable. It precisely accommodates conductor insulation diameters ranging from 0.040 inches (1.01mm) to 0.046 inches (1.17mm) and a cable jacket diameter between 0.220 inches (5.58mm) and 0.240 inches (6.10mm). Engineered for network infrastructure, the SP6X88PHD-C features a robust construction rated for 2500 mating cycles, ensuring sustained reliability and long-term performance. A key design element is the tangle-free latch, which prevents snags during installation and facilitates easy, secure release. This feature significantly streamlines moves, adds, and changes (MACs) in network environments, saving valuable time and enhancing operational efficiency. The 100 ohm impedance of the cable is maintained by the plug's design. The solid conductor construction of the PUP6AHD04*-G cable is also a key compatibility factor. Manufactured in the USA, this modular plug adheres to high-quality standards for critical network connections.
  • Terminates Panduit PUP6AHD04*-G Plenum 23 AWG solid UTP cable
  • Accommodates conductor insulation 0.040-0.046" (1.01-1.17mm)
  • Supports jacket diameter 0.220-0.240" (5.58-6.10mm)
  • Rated for 2500 mating cycles for long-term reliability
  • Tangle-free latch for snag prevention and easy release

Specifications

Color
Clear
Connection Type
UTP Modular Plug
Connection Type
Modular Plug
Depth
1.6 In.
Frequency
100 MHz
Material
Plastic
Poles
8P8C (RJ45)
Poles
8P8C
Poles
8
Poles
4
Series
Cat 6A UTP
Series
SP6X88PHD
Series
SP6X88PHD-C
Size
0.220" to 0.240" jacket diameter (5.58mm to 6.10mm)
Size
0.220-0.240 inches (5.58-6.10mm) jacket diameter
Size
23 AWG solid UTP
Standard
Exceeds ANSI/TIA Category 6A and ISO Class EA performance requirements when properly terminated to Panduit Category 6A UTP copper cable, Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC-60603-7, Supports PoE, PoE+, and proposed Type 3 and 4 PoE++ applicat
Type
Modular Plug
Width
0.46 In.
Package Dimensions (L x W x H)
22.95 IN x 10.45 IN x 8.45 IN
Package Weight (Imperial)
8 lbs
The Cat 5e 30 AWG modular plug terminates 4-pair, 30 AWG, 100 ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.027 inches (0.69mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on moves, adds, and changes. This includes 1000 per package.

MP530-M

The Cat 5e 30 AWG modular plug terminates 4-pair, 30 AWG, 100 ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.027 inches (0.69mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on moves, adds, and changes. This includes 1000 per package.
The Cat 5e 30 AWG modular plug terminates 4-pair, 30 AWG, 100 ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.027 inches (0.69mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on moves, adds, and changes. This includes 100 per package.

MP530-C

The Cat 5e 30 AWG modular plug terminates 4-pair, 30 AWG, 100 ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.027 inches (0.69mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on moves, adds, and changes. This includes 100 per package.
The Cat 5e modular plug terminates 4-pair, 24-26 AWG, 100 ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.040 inches (1.02mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release. Simplified termination method shall require no load bar. Guide ramp shall facilitate easy conductor insertion and termination. This includes 1,000 per package.

MP588-L

The Cat 5e modular plug terminates 4-pair, 24-26 AWG, 100 ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.040 inches (1.02mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release. Simplified termination method shall require no load bar. Guide ramp shall facilitate easy conductor insertion and termination. This includes 1,000 per package.
The Mini-Com Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

CJ688TGAW-24

The Mini-Com Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

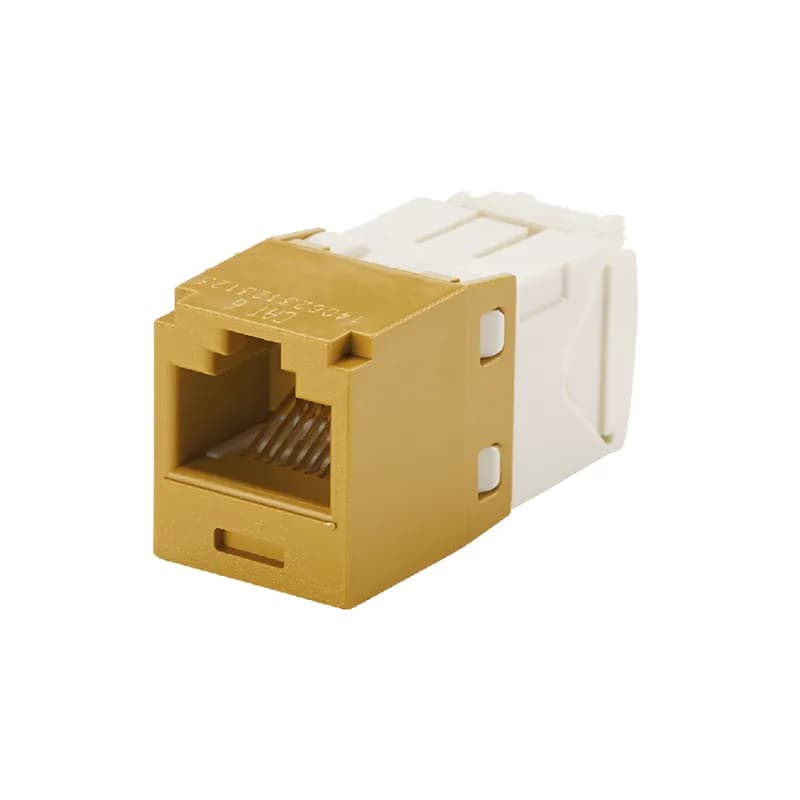

Category 6A, RJ45, 10 Gb/s, 8-position, 8-wire universal module.

CJ6X88TGGD

Category 6A, RJ45, 10 Gb/s, 8-position, 8-wire universal module.
Category 6A, 45 degree left/right angled RJ45, 8-position, 8-wire universal module, black, bulk package of 24 pcs, includes TGSJT termination tool.

CJLR6X88TGBL-24

Category 6A, 45 degree left/right angled RJ45, 8-position, 8-wire universal module, black, bulk package of 24 pcs, includes TGSJT termination tool.
The Mini-Com Cat 6 UTP RJ45 Left/Right 45 Angled TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable and improves cable routing to jacks in tight spaces. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

CJLR688TGOR

The Mini-Com Cat 6 UTP RJ45 Left/Right 45 Angled TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable and improves cable routing to jacks in tight spaces. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
The Mini-Com Cat 5e UTP RJ45 TP-Style Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Acrtic White.

CJ5E88TAW

The Mini-Com Cat 5e UTP RJ45 TP-Style Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Acrtic White.
The Mini-Com Cat 5e UTP RJ45 TP-Style Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Red.

CJ5E88TRD

The Mini-Com Cat 5e UTP RJ45 TP-Style Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Red.
The Mini-Com Cat 5e UTP RJ45 Leadframe Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is off white.

CJ588IWY

The Mini-Com Cat 5e UTP RJ45 Leadframe Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is off white.
The NetKey Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is orange and includes 25 per package.

NK5E88MOR-Q

The NetKey Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is orange and includes 25 per package.
The NetKey Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is yellow.

NK5E88MYLY

The NetKey Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is yellow.

Frequently Asked Questions

What is the operating temperature range?

The operating temperature range is 14°F to 140°F (-10°C to 60°C).

What is the storage temperature range?

The storage temperature range is -40°F to 158°F (-40°C to 70°C).

What is the conductor insulation diameter range?

The conductor insulation diameter range is 0.040 in. to 0.046 in. (1.01mm to 1.17mm).

What is the cable jacket diameter range?

The cable jacket diameter range is 0.220 in. to 0.240 in. (5.58mm to 6.10mm).

Is the product RoHS compliant?

Yes, the product is RoHS compliant.

What cable types are compatible with this plug?

This plug is compatible with Panduit PUP6AHD04*-G Plenum, 4-pair, 23 AWG, UTP copper cable.

What PoE standards does this plug support?

It supports IEEE 802.3bt PoE, PoE+, and proposed Type 3 and 4 PoE++.

How many mating cycles is the plug rated for?

The plug is rated for 2500 mating cycles.

What materials are used for the plug housing?

The plug housing is made of UL94V-0 rated clear Polycarbonate.

What type of contacts does the plug have?

The contacts are made of gold plated phosphor bronze.

How to Install the SP6X88PHD-C Controller

This guide provides step-by-step instructions for installing and configuring the SP6X88PHD-C Controller, ensuring proper wiring and setup for optimal performance.

Estimated time: 1h

Tools needed:

Screwdriver, Wire strippers, Multimeter

Supplies needed:

Mounting screws, Terminal connectors

  1. Mount the controller

    Secure the SP6X88PHD-C controller to the designated mounting surface using the provided mounting screws. Ensure the controller is level and firmly attached.

  2. Prepare the cables

    Thread the boot and collar onto the cable first. Remove 2.5" - 3.0" of the outer jacket from the cable end using wire strippers. Remove the matrix foil to expose the twisted pairs and fan them into respective quadrants.

  3. Insert the divider

    Align the divider with the cable and insert the divider posts into the cable. Ensure the 'V' channel is aligned with the green pair for the correct orientation.

  4. Arrange conductors

    Arrange the conductors according to the T568B wiring scheme while minimizing untwist. Seat the conductors into the proper divider slots while holding the divider near the end of the cable jacket.

  5. Install the load bar

    Guide the conductors into the load bar holes while holding the conductors in the divider. Slide the load bar towards the divider until flush and ensure it is centered and perpendicular to the cable axis.

  6. Complete the termination

    Grip and squeeze across the collar arms as the sub-assembly is inserted into the plug housing. Push the sub-assembly into the housing until the collar locking tabs clear the plug housing pocket.

  7. Final assembly check

    Slide the boot forward and fully seat it onto the strain relief collar. Visually check the plug assembly for proper orientation and ensure there is no gap between the collar and divider.
