Panduit SA4-XR - Aluminum Compression Splice, Tin Plated, #4 AWG
Panduit

SA4-XR

UPC: 074983069910

Documents & Media
Technical DrawingFull Engineering DrawingInstallation Instructions

Contact for Pricing

Minimum Qty: 40

Multiplier: 1

*Contact for lower quantities*

Overview

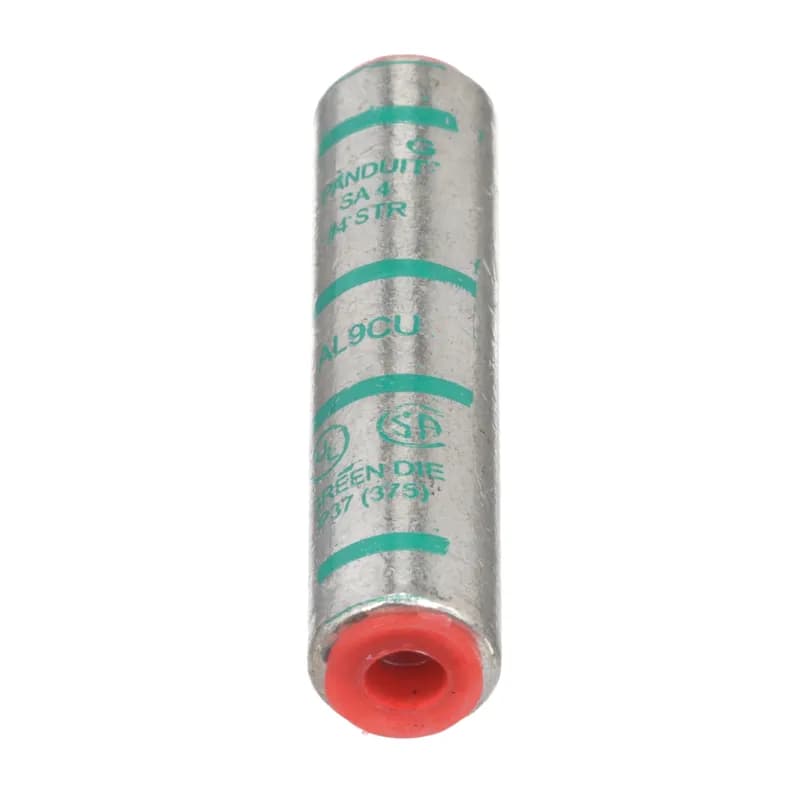

The Panduit SA4-XR is a tin-plated aluminum compression splice designed for #4 AWG conductors, featuring a center stop for precise cable installation and pre-filled with an oxide inhibitor for enhanced long-term reliability. The SA4-XR is UL486A/B and cULus listed for wire connectors, supporting up to 600V, with a higher voltage rating of 2000V per UL486B, and a 90°C operating temperature. Key specifications include a voltage rating of 600V, material of aluminum, and a connection type of compression splice. The SA4-XR is compatible with Panduit N1240 and N121D crimp tools, making it suitable for a variety of applications, including power distribution, telecommunications, and industrial wiring. With its robust design and reliable performance, the SA4-XR is an ideal choice for connecting #4 AWG conductors in a range of environments. The aluminum construction provides a durable and corrosion-resistant solution, while the tin plating enhances the overall conductivity and reliability of the splice. By meeting the UL486A/B and cULus standards, the SA4-XR ensures a high level of safety and compliance in various installations.
  • Tin-plated aluminum construction for corrosion resistance
  • Center stop for precise cable installation
  • Pre-filled with oxide inhibitor for long-term reliability
  • UL486A/B and cULus listed for wire connectors
  • Compatible with Panduit N1240 and N121D crimp tools

Specifications

Application
Stranded Aluminum-to-Aluminum or Copper-to-Copper Conductors
Color
Green
Connection Type
Compression Splice
Finish
Tin-Plated
Material
Aluminum
Material
Aluminum, tin plated
Size
#4 AWG Code
Size
#4 AWG
Standard
Yes
Type
Aluminum Compression Connectors - Butt Splices
Voltage Rating
NA V
Package Dimensions (L x W x H)
4.3 IN x 3.15 IN x 2.5 IN
Package Weight (Imperial)
0.37 lbs
Aluminum Compression Splice, Tin-Plated to inhibit corrosion, high conductivity thick wall aluminum, Factory pre-filled joint compound and sealed with easy pull-out end plug to inhibit corrosion, Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection, Internal solid stop prevents over-insertion of conductor, UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with Panduit and specified competitor crimping tools and dies.

SA4-CR

Aluminum Compression Splice, Tin-Plated to inhibit corrosion, high conductivity thick wall aluminum, Factory pre-filled joint compound and sealed with easy pull-out end plug to inhibit corrosion, Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection, Internal solid stop prevents over-insertion of conductor, UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with Panduit and specified competitor crimping tools and dies.
Aluminum Compression Splice, Tin-Plated to inhibit corrosion, high conductivity thick wall aluminum, Factory pre-filled joint compound and sealed with easy pull-out end plug to inhibit corrosion, Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection, Internal solid stop prevents over-insertion of conductor, UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with Panduit and specified competitor crimping tools and dies.

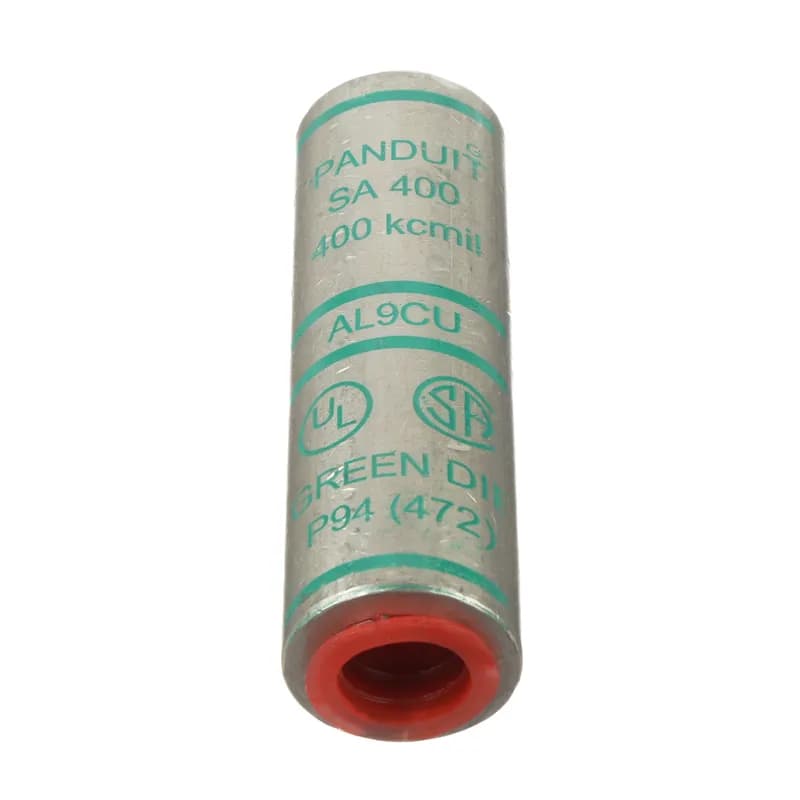

SA400-X

Aluminum Compression Splice, Tin-Plated to inhibit corrosion, high conductivity thick wall aluminum, Factory pre-filled joint compound and sealed with easy pull-out end plug to inhibit corrosion, Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection, Internal solid stop prevents over-insertion of conductor, UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with Panduit and specified competitor crimping tools and dies.

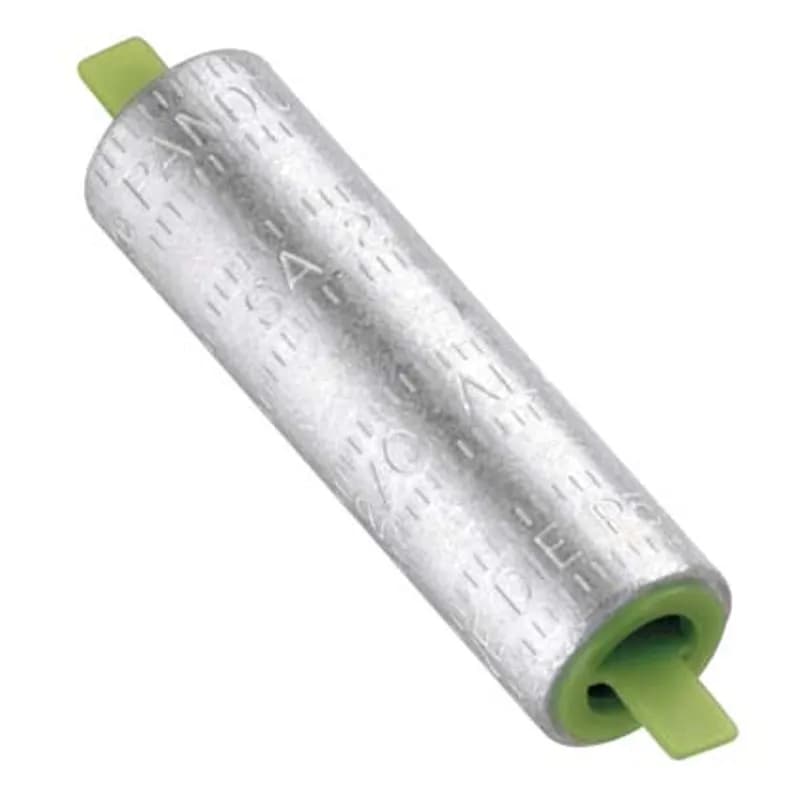

Aluminum splice, type SA, tin plated, 400 kcmil.

SA400-2

Aluminum splice, type SA, tin plated, 400 kcmil.
Aluminum Compression Splice, Tin-Plated to inhibit corrosion, high conductivity thick wall aluminum, Factory pre-filled joint compound and sealed with easy pull-out end plug to inhibit corrosion, Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection, Internal solid stop prevents over-insertion of conductor, UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with Panduit and specified competitor crimping tools and dies.

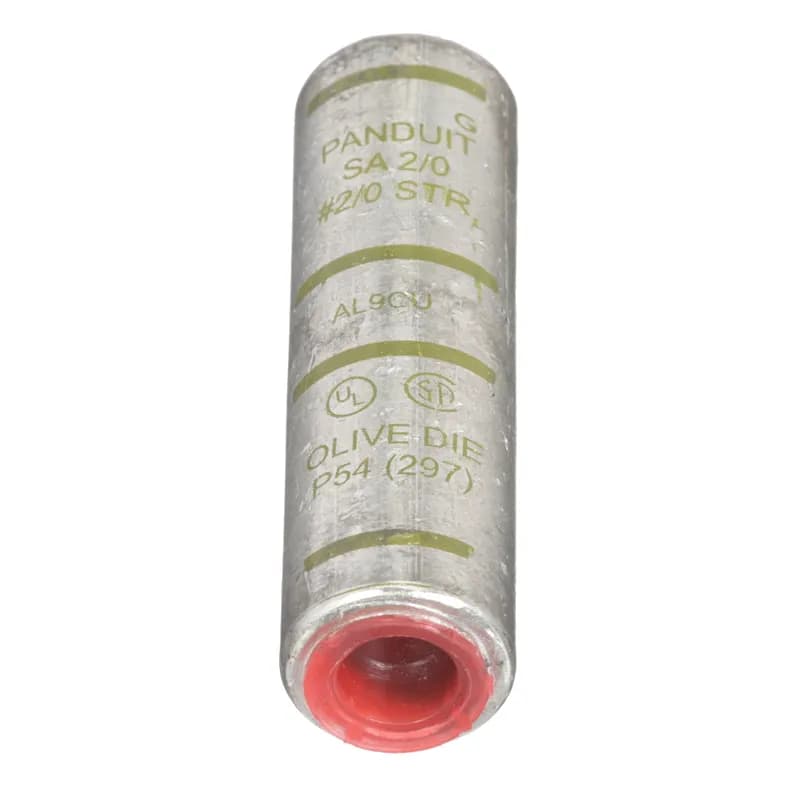

SA2/0-L

Aluminum Compression Splice, Tin-Plated to inhibit corrosion, high conductivity thick wall aluminum, Factory pre-filled joint compound and sealed with easy pull-out end plug to inhibit corrosion, Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection, Internal solid stop prevents over-insertion of conductor, UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with Panduit and specified competitor crimping tools and dies.
Aluminum splice, type SA, tin plated, 500 kcmil.

SA500-2

Aluminum splice, type SA, tin plated, 500 kcmil.
Aluminum splice, type SA, tin plated, 600 kcmil.

SA600-2

Aluminum splice, type SA, tin plated, 600 kcmil.

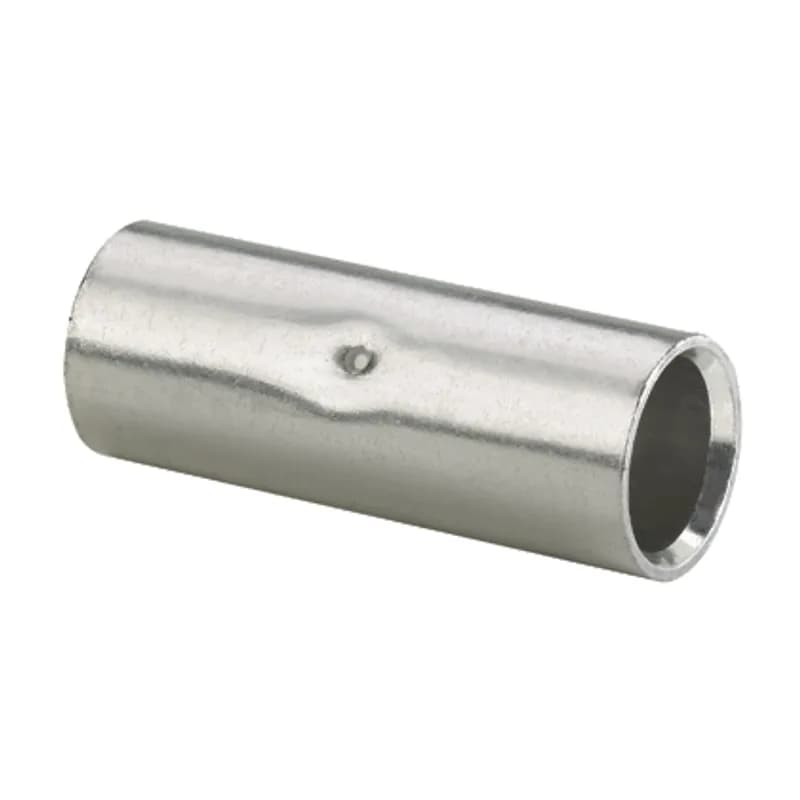

Copper metric butt splice, standard barrel, 300mm wire.

SCMS300-5

Copper metric butt splice, standard barrel, 300mm wire.

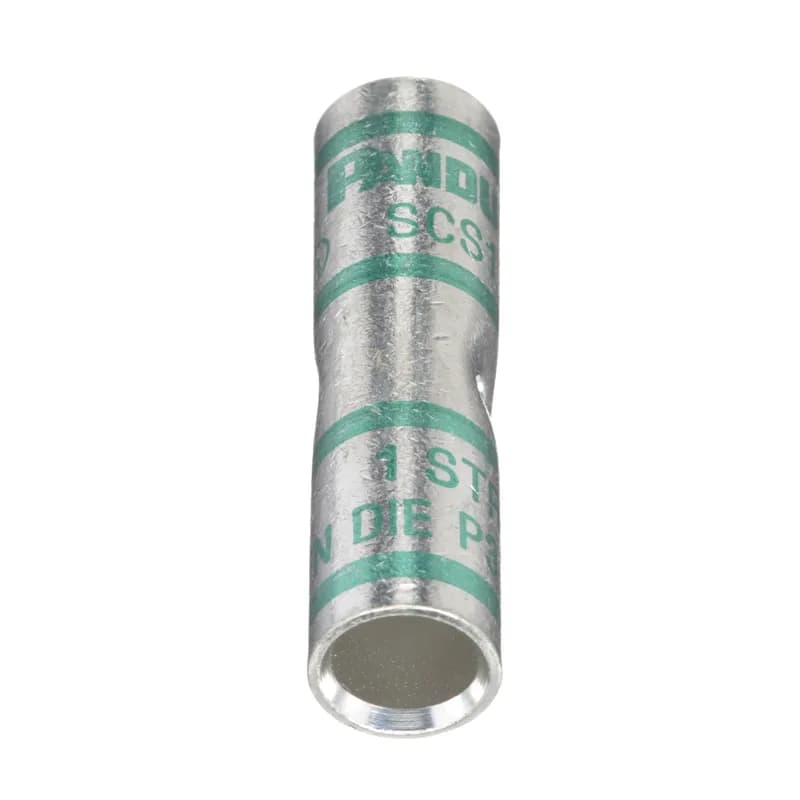

Copper butt splice, standard barrel, #1 AWG wire.

SCS1-E

Copper butt splice, standard barrel, #1 AWG wire.
Copper butt splice, standard barrel, 600 kcmil cable.

SCS600-6

Copper butt splice, standard barrel, 600 kcmil cable.

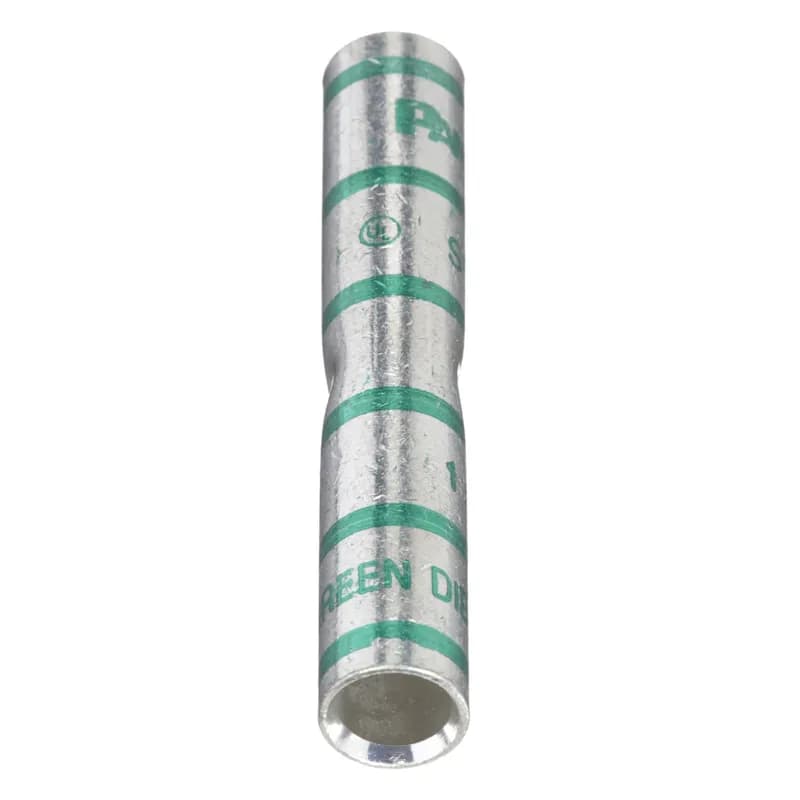

Copper butt splice, long barrel, #1 AWG wire.

SCL1-E

Copper butt splice, long barrel, #1 AWG wire.

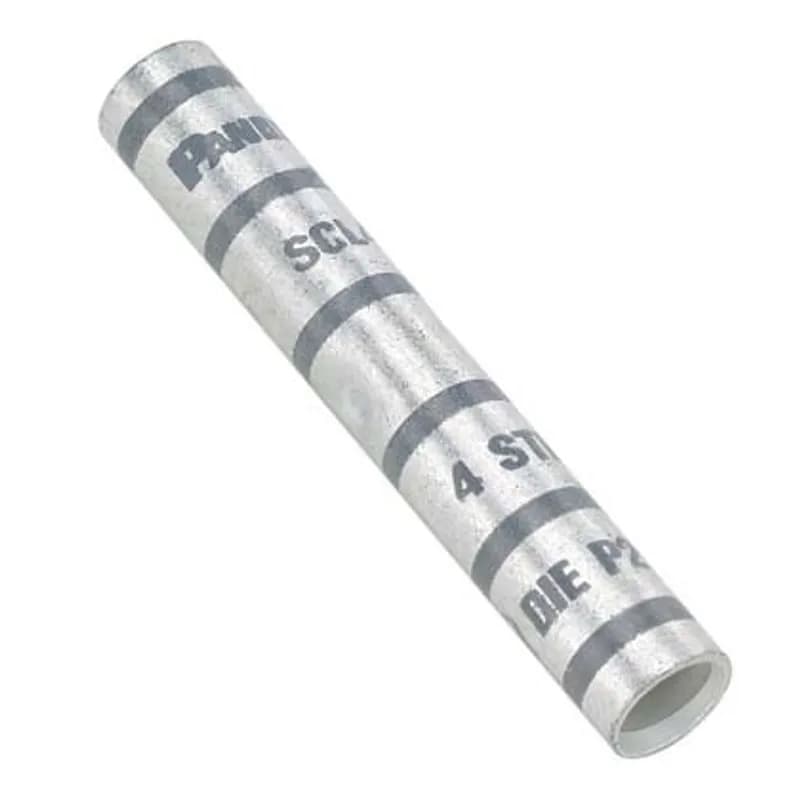

Copper butt splice, long barrel, 600 kcmil cable.

SCL600-6

Copper butt splice, long barrel, 600 kcmil cable.
Copper parallel splice, green.

PSCGRN-L

Copper parallel splice, green.

How to Install Aluminum Compression Connectors

This guide provides step-by-step instructions for installing aluminum compression connectors safely and effectively.

Estimated time: 30m

Tools needed:

Wire strippers, Crimping tool, Heat gun or propane torch, Multimeter

Supplies needed:

Aluminum compression connectors, Heat shrink tubing, Belleville spring washers, Anti-oxidation compound

  1. Prepare the wire

    Strip the wire insulation to the appropriate length as per the tool chart. Ensure not to nick or ring the conductor strands.

  2. Clean the wire

    Wire brush the stripped wire to remove any oxide film before inserting it into the connector.

  3. Insert and crimp the connector

    Insert the stripped wire into the connector until it stops. Use the specified crimping tool to crimp the connector evenly in the designated crimp zone.

  4. Inspect the crimp

    After crimping, inspect the connection for sharp edges, flash, or burrs and remove any that are present.

  5. Apply heat shrink insulation

    Cut the heat shrink tubing to the desired length, allowing for a minimum of 1-1/2 inch overlap on the wire insulation. Shrink the tubing using a heat gun or propane torch, moving from the crimped portion toward the insulated wire.

  6. Secure the connection

    For a secure bolt connection, use Belleville spring washers. Wire brush unplated mounting surfaces and apply anti-oxidation compound before tightening the bolt to the recommended torque.
