Contact for Pricing

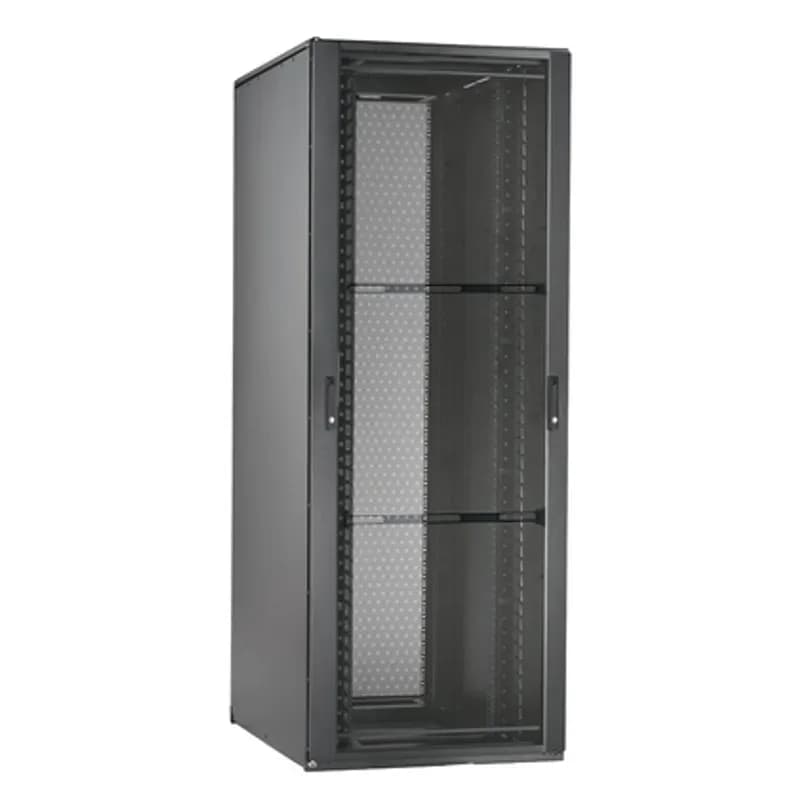

Overview
- 42 Rack Unit (RU) capacity for extensive equipment deployment
- 800mm W x 1070mm D dimensions provide ample internal space
- Single-hinge perforated front door and split perforated rear door for ventilation and access
- Two sets of infinitely adjustable tapped 19-inch rack angles for flexible equipment mounting
- Durable 16/14 gauge steel construction with a welded 12 gauge steel frame and black powder coat finish
Specifications
Application | NA |
Color | Black |
Depth | 42 In. |
Finish | Powder-coated |
Material | Steel |
Rack Spaces* | 42 |
Size | 42 RU, 800mm W x 1070mm D |
Standard | EIA-310-E, TIA/EIA-942, UL Listed 2416, RoHS Compliant |
Type | S-Type Cabinet |
Width | 31.5 In. |
Package Dimensions (L x W x H) | 49 IN x 36 IN x 95 IN |
Package Weight (Imperial) | 413 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What is the static load rating of the cabinet?
The static load rating is 3000 lbs. for the cabinet.
What is the rolling load rating of the cabinet?
The rolling load rating is 2500 lbs. for the cabinet.
What is the installation time reduction with the leveling feet?
The innovative leveling feet design reduces installation time by up to 80%.
What safety features are included in the cabinet?
The entire cabinet is fully electrically bonded, requiring no grounding whips for safety.
What are the cabinet width options available?
Cabinet widths available are 600mm, 700mm, and 800mm.
What heights are available for the cabinets?
Cabinet heights available are 42RU, 45RU, and 48RU.
Are the cabinets compatible with other Panduit products?
Yes, the cabinets are compatible with various Panduit product lines including FiberRunner®.
What are the color options for the cabinets?
The cabinets are available in black and white color options.
What is the benefit of the integral cabinet air seal?
The integral cabinet air seal improves thermal management and reduces cooling energy consumption.
How can I improve cable management in the cabinet?
Use modular snap-in fingers that align with rack spaces for cable management.
How to Install the S7522BF Server Cabinet
This guide provides step-by-step instructions for the installation and initial setup of the S7522BF Server Cabinet, ensuring proper leveling, mounting, and grounding.
Estimated time: 1h
Tools needed:
Phillips screwdriver, Flatblade screwdriver, 22mm socket wrench, 15mm socket wrench, 13mm socket wrench, 8mm socket wrench, 48” level, 7mm socket wrench, T30 Torx bit, T25 Torx bit, 6mm Allen key, 2.5mm Allen key, Wire cutter
Supplies needed:
Mounting screws, Shipping hold down brackets, Grounding lugs, Foam seals, Latch plugs
- Remove packaging materials
Carefully remove all stretch wrap and protective cardboard from the cabinet. Remove the shipping brackets and hold down brackets if necessary.
- Level the cabinet
Ensure the leveling legs are fully retracted. Slide the cabinet into its final position and lower the leveling legs until the cabinet is fully supported. Adjust the legs to ensure the cabinet is level both front-to-back and side-to-side.
- Secure the cabinet to the floor
If floor mounting is desired, secure the shipping hold down brackets at the front and rear of the cabinet using M10 hex head screws and a 15mm socket wrench.
- Ground the cabinet
Attach a grounding lug or grounding bar to the Common Bonding Network (CBN) at one of the designated locations. Use M5 bonding screws to fasten the grounding terminal to the cabinet frame.
- Install cable management
Insert the cable management fingers into the mounting slots of the cabinet post and slide them inward to lock them in place.
- Seal the cabinet
Install latch plugs into the door latch cut-outs on the front side of the cabinet and apply foam seals to the upper and lower frame.
