Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Overview
- Accommodates 8 AWG wire for reliable electrical connections
- 1/4" stud size for compatibility with standard mounting hardware
- Internal barrel serrations ensure optimal wire contact and tensile strength
- Brazed seam prevents barrel splitting during crimping
- Rated up to 2000V per UL 486A/B with max operating temp of 302°F (150°C)
Specifications
Amperage Rating | NA A |
Angle* | Straight |
Barrel Type* | Seamless Tubular |
Cable Size | 8 AWG AWG |
Color | Metallic |
Connection | Beveled |

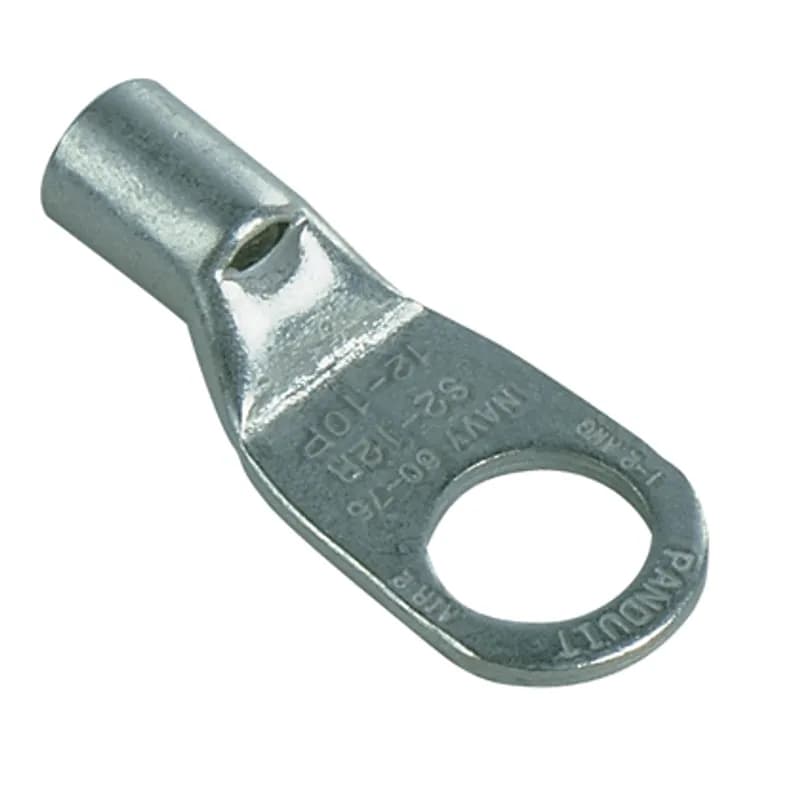

Connection Type | Tubular Ring Terminal |
Insulation | Non-Insulated |
Material | Tin-plated Copper |
Material | Copper |
Mounting | 7/16 In. |
Number Of Holes | NA |
Size | 8 AWG, 1/4" stud |
Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
Stud Size | 1/4 In. |
Type | Loose Piece Ring Terminal |
Voltage Rating | NA V |
Voltage Rating | 2000 V |
Package Dimensions (L x W x H) | 4.2 IN x 2.05 IN x 1.4 IN |
Package Weight (Imperial) | 0.3 lbs |
