Contact for Pricing

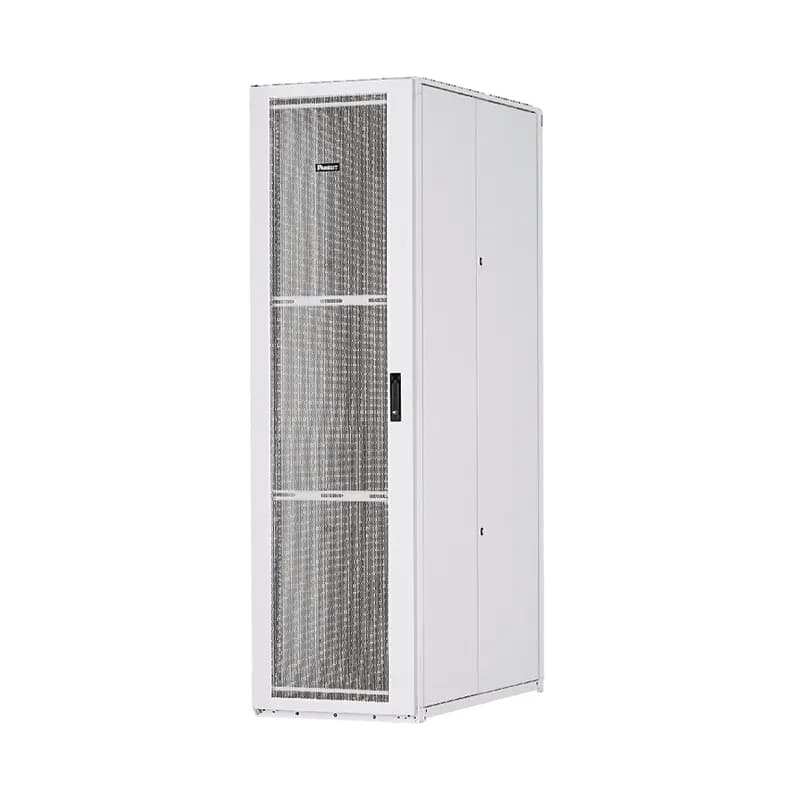

Overview
- 48 RU capacity for extensive equipment deployment
- 600mm W x 1200mm D dimensions for ample space
- Split perforated rear doors minimize swing footprint
- Vertically split hinged side panels for flexible access
- Adjustable front and rear equipment rails
Specifications
Application | NA |
Color | White |
Depth | 49.96 In. |
Finish | Powder-coated |
Material | Steel |
Rack Spaces* | 48 |
Standard | RoHS Compliant, EIA-310-E, TIA/EIA-942, UL2416 |
Type | S-Type Cabinet |
Width | 23.54 In. |
Package Dimensions (L x W x H) | 49 IN x 30 IN x 95 IN |
Package Weight (Imperial) | 441 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
PDCP2078
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
Are casters and leveling legs included with the cabinet?
Yes, heavy-duty casters and leveling legs are included as standard features.
What are the available cabinet widths and depths?
Available widths are 600mm (23.6 in), 700mm (27.6 in), 800mm (31.5 in). Depths are 1070mm (42.12 in) and 1200mm (47.21 in).
Are S-Type and N-Type Cabinets compatible for ganging?
Yes, N-Type and S-Type Cabinets can be ganged together for a complete streamlined appearance.
What type of doors do S-Type Universal Cabinets have?
They feature a Front Single Hinge Door and Split Perforated Rear Doors with 69% open perforation.
Are S-Type Universal Cabinets shipped assembled?
Yes, the cabinet ships assembled, one per pallet.
What are the compliance standards for these cabinets?
The S-Type Universal Cabinets comply with EIA-310-E, TIA/EIA-942, and UL2416 standards.
What are the available RU heights for S-Type cabinets?
S-Type Universal Cabinets are available in 42 RU, 45 RU, and 48 RU heights.
What materials are S-Type Universal Cabinets made from?
The cabinets are manufactured with a welded and assembled steel frame, finished with a durable black or white polyester epoxy powder coat.
What are the load ratings for S-Type Universal Cabinets?
The static load rating is 3000 lbs, and the rolling load rating is 2500 lbs.
What are the load ratings for S-Type Universal Cabinets?
The static load rating is 3000 lbs, and the rolling load rating is 2500 lbs.
How to Install the S6822WU Cabinet
This guide provides step-by-step instructions for installing the S6822WU cabinet, including leveling, securing, and grounding procedures.
Estimated time: 1h
Tools needed:
Phillips screwdriver, Flatblade screwdriver, 15mm socket wrench, 6mm Allen key, T25 Torx bit
Supplies needed:
Mounting screws, Grounding lug, Shipping hold down brackets
- Remove Packaging Material
Inspect the cabinet for damage before accepting it. Remove all stretch wrap and protective cardboard from the outside of the cabinet. Remove all shipping brackets if necessary.
- Level the Cabinet
Ensure that the leveling legs are fully retracted. Slide the cabinet into its final position and lower the leveling legs using a 6mm Allen key until the cabinet weight is fully supported. Adjust the leveling legs to ensure the cabinet is level front-to-back and side-to-side.
- Secure the Cabinet to the Floor
If necessary, secure the shipping hold down brackets at the front and rear of the cabinet. Attach anchors to the floor using appropriate hardware for your type of floor.
- Ground the Cabinet
Attach a grounding lug or grounding bar at any of the designated locations on the cabinet. Use an M5 bonding screw to secure the grounding connection.
- Install Equipment Rails
Loosen the M10 hex head screws at the top and bottom of the equipment rail. Adjust the equipment rail to the desired position and tighten the screws to 30.0 +/- 5.0 N-m.
