Overview
- Ten (10) Panduit StructuredGround™ Grounding Strips
- Each strip: 90.90" (2.3m) L x 0.67" (17mm) W x 0.05" (1.27mm) T
- Includes 0.16 oz. (5cc) antioxidant, 10 grounding stickers
- 30 each #12-24 x 1/2" and M6 x 12mm thread-forming screws
- Bonds up to 45 RU per rack; EIA universal mounting hole pattern
Specifications
Length | 90.9 In. |
Size | 90.90" (2.3m) length; .67" (17mm) width; .05" (1.27mm) thickness |
Standard | TIA-607-C and BICSI 002 Meets the requirements of common referenced industry standards, UL 467, C22.2 No.41-31 |
Type | Grounding Kit |
Package Dimensions (L x W x H) | 96.25 IN x 4 IN x 2 IN |
Package Weight (Imperial) | 13 lbs |
RGS13451-1
The RGS13451-1 Grounding Strip bonds up to 51RU's within a rack or cabinet with threaded rail fasteners with an EIA Universal Mounting Hole Pattern. Engineered to comply with US and international grounding requirements.
GJS696U
#6 AWG (16mm ) green wire with yellow horizontal stripe. Jumper is pre-terminated on one end with LCC6-14JAW-L.
RGREJ696Y
Grounding jumper; #6 AWG (16mm ); 96 (2.44m) length; one end factory terminated to lug; provided with .16 oz. (5cc) of antioxidant and two each #12-24 x 1/2, M6 x 12mm, #10-32 x 1/2 and M5 x 12mm thread-forming screws.
RGEJ696U

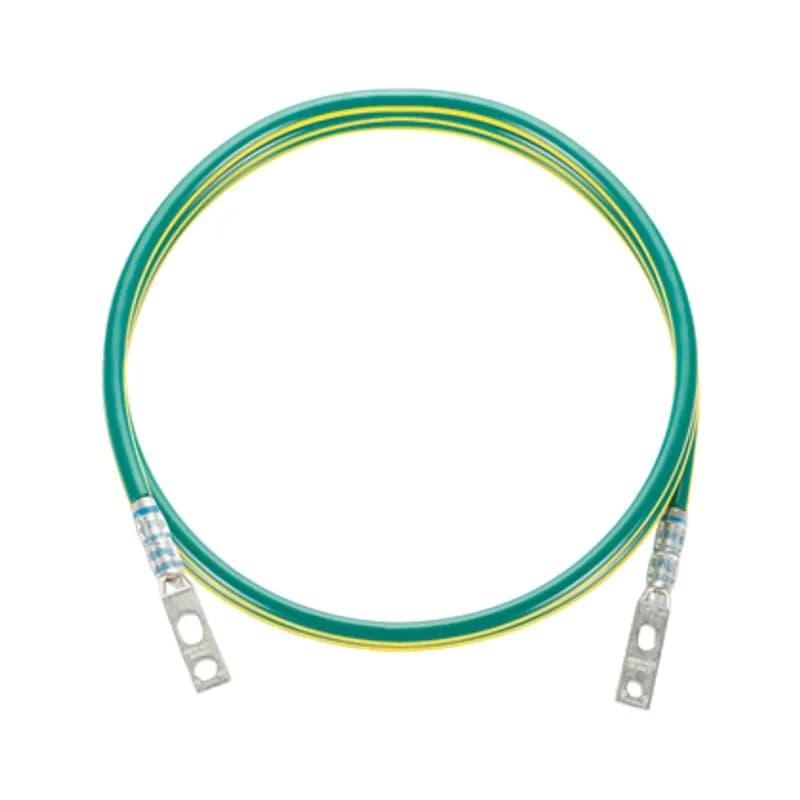

#6 AWG (16mm ) jumper, 96 in. (2.44mm ) L, pre-terminated with two straight slotted lugs to provide a bolt-on solution for grounding network equipment.RGEJ1096PF
#10 AWG jumper, 90 bent lug on grounding strip side, provided with .16 oz. (5cc) of antioxidant and two each #12-24 x 1/2, M6 x 12mm, #10-32 x 1/2 and M5 x 12mm thread-forming screws.
RGRKCBNJEJY

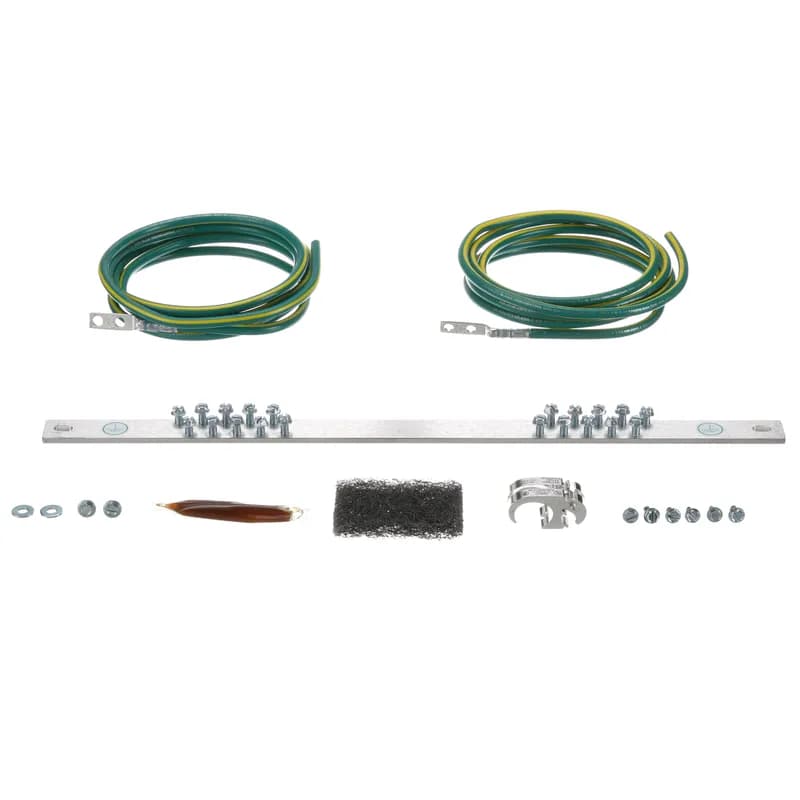

The RGRKCBNJEJY Equipment Bonding Jumper Kit bonds the rack or cabinet to the MCBN. Engineered to comply with US and International grounding requirements. HTAP is UL Listed and CSA Certified for applications up to 600 V when crimped with Panduit and specified competitor crimping tools, and Panduit crimping dies. Color Green/Yellow
RGRKCBNJY

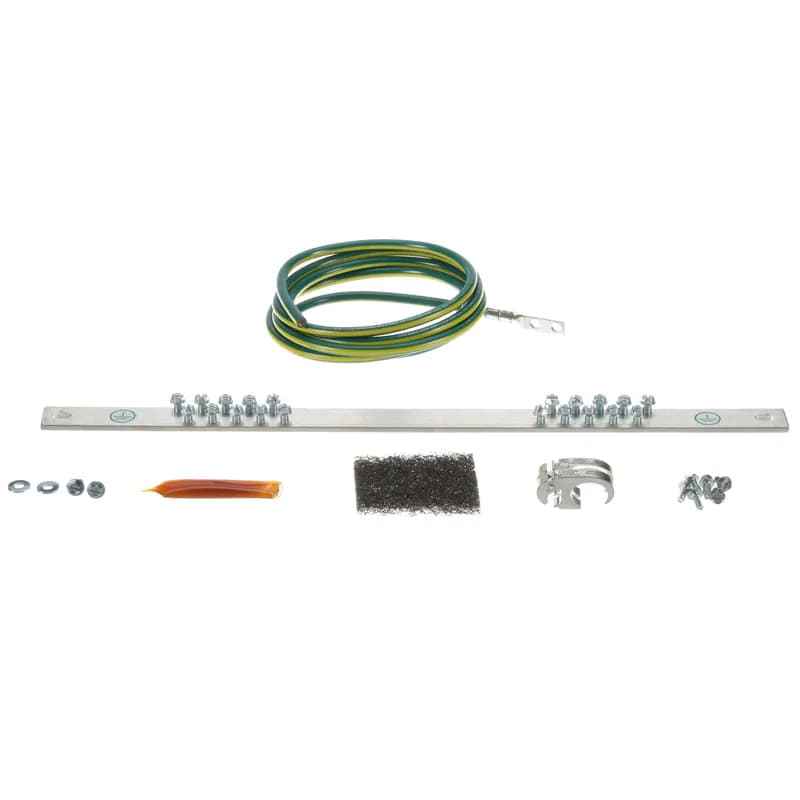

The RGRKCBNJY Grounding Busbar provides a dedicated ground system to maintain system performance and protect network equipment when equipment is already installed. Optimized for installation on 19RU's within the rack or cabinet that meet EIA-310-D. The thread-forming screws eliminate the need to manually remove paint from the rack and provides a complete system of matched components that can be easily selected to save cost and labor.
GJ696UH

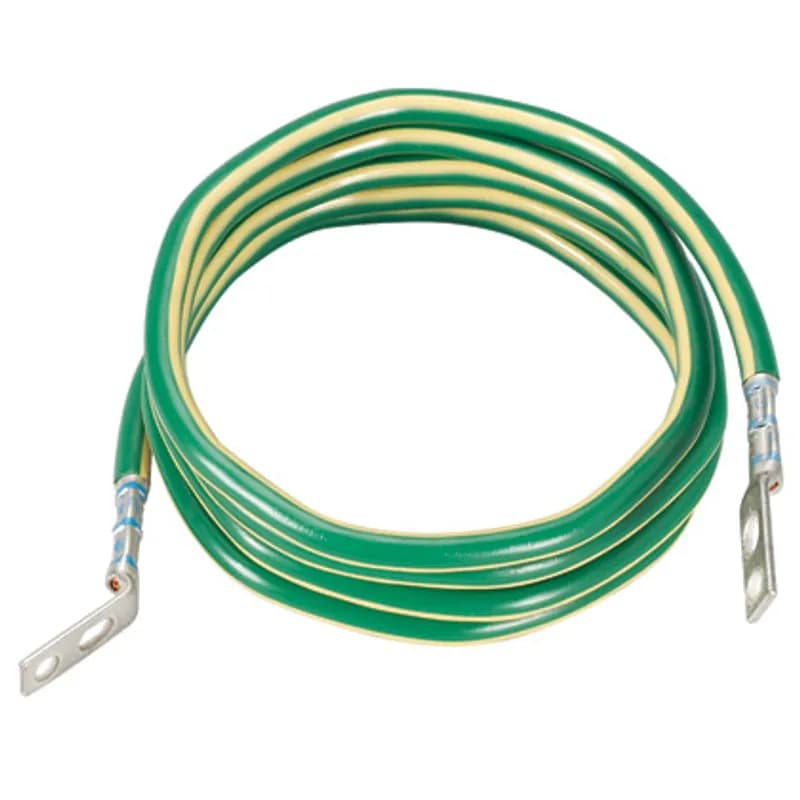

One 96 length #6 AWG green wire with yellow horizontal stripe. Jumper is pre-terminated on one end with LCC6-14JAWH-L and the other end with LCC6-14JAW-L.RGS13448-10-1
Ten grounding strips; 83.90" (2.1m) length; .67" (17mm) width; .05" (1.27mm) thickness; provided with .16 oz. (5cc) of antioxidant, ten grounding stickers and 30 each #12-24 x 1/2" and M6 x 12mm thread-forming screws.
RGS134B48-1
Grounding strip; 83.90" (2.1m) length; .67" (17mm) width; .03" (.76mm) thickness; provided with .16 oz. (5cc) of antioxidant, one grounding sticker, three cage nut bonding studs, eight #12-24 bonding nuts and three strip clips.
RGS134B-1
The RGS134B-1 Grounding Strip bonds up to 45RU's within a rack or cabinet with threaded rail fasteners with an EIA Universal Mounting Hole Pattern. Engineered to comply with US and international grounding requirements.RGS134-10-1Y
Ten grounding strips; 78.65" (2m) length; .67" (17mm) width; .05" (1.27mm) thickness; provided with .16 oz. (5cc) of antioxidant, ten grounding stickers and 30 each #12-24 x 1/2" and M6 x 12mm thread-forming screws.Frequently Asked Questions
What is the maximum rack unit length for RGS13452-10-1?
The RGS13452-10-1 grounding strip is designed for a maximum rack unit length of 52 RU.
What are the dimensions of the grounding strip?
The grounding strip has a width of 0.67 in. (17mm) and a thickness of 0.05 in. (1.27mm) for threaded rail fasteners, and 0.03 in. (0.76mm) for cage nut rail fasteners.
What type of screws are included for installation?
The grounding strip kit includes #12-24 and M6 thread-forming screws for installation.
What is the UL listing status of the product?
The grounding strip is UL Listed, CSA Certified, and RoHS Compliant.
How does the grounding strip bond to the rail?
The grounding strip is bonded to the rail using paint piercing hardware, ensuring a secure connection.
What is the benefit of using paint-piercing components?
Paint-piercing components automatically create necessary bonds during installation, saving time and preventing errors.
What is included in the kit contents?
The kit includes a grounding strip, antioxidant, grounding sticker, and all appropriate installation hardware.
What is the purpose of the antioxidant in the kit?
The antioxidant is applied to the bonding hardware before installation to prevent corrosion.
What applications are suitable for the grounding strips?
The grounding strips are suitable for telecommunications bonding needs, including access floors and pathways.
What is the weight of the RGS13452-10-1 grounding strip?
The RGS13452-10-1 grounding strip weighs 90.90 lbs (2.3 kg).
