Overview

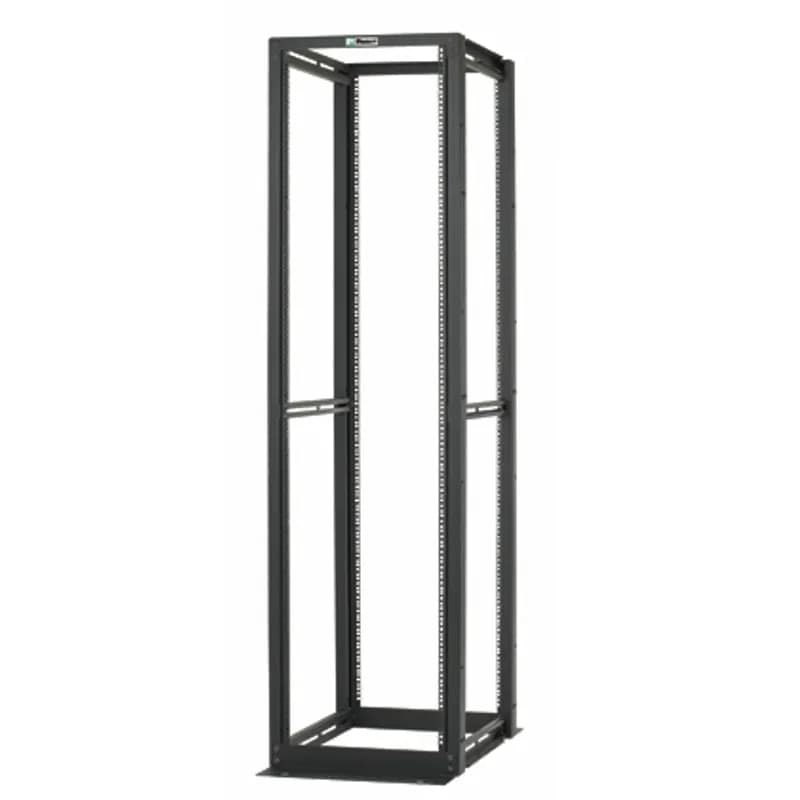

- 45 RU, 19-inch standard EIA mount, 23"W x 41.5"D
- Adjustable mounting rails with #12-24 EIA universal hole spacing
- Constructed from welded steel with a black polyester powder paint finish
- UL 2416 Listed and cUL Listed for 2,500 lbs (1134 kg) load capacity
- Depth adjustable from 17.7" to 41.3" in 0.98" increments
Specifications
Color | Black |
Depth | NA in |
Finish | Powder Coat |
Material | Steel |
Standard | UL 2416, EIA/ECA-310-E, RoHS Compliant |
Type | 4-Post Rack |
Width | 23.25 in |
Width | 590.55 mm |
Package Dimensions (L x W x H) | 90.5 IN x 43 IN x 6.5 IN |
Package Weight (Imperial) | 112 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What are the dimensions of the R4P42 rack?
The R4P42 rack measures 84.0 in. H x 23.3 in. W x 41.5 in. D.
Is the rack compatible with 19 in. equipment?
Yes, the rack is designed to accept 19 in. wide EIA equipment.
What standards does the rack meet?
The telecommunications rack meets EIA/ECA-310-E standards.
What is the load capacity of the rack?
The welded steel construction of the rack supports a load capacity of 2500 lbs.
What is the height of the R4P42 rack?
The R4P42 rack has a height of 84.0 in.
Can the mounting rails be adjusted?
Yes, the front and rear mounting rails are independently adjustable for equipment mounting depths.
What is the depth of the R4P42 rack?
The R4P42 rack has a depth of 41.5 in.
What mounting styles are available for the rack?
The rack supports #12-24 threaded rails and cage nut square opening style mounting.
What types of accessories can be mounted?
Accessories such as power distribution units, slack spools, and rack shelves can be mounted on the rack.
What grounding features does the rack have?
The rack features a fully bonded structure with a two-hole ground lug attachment for proper grounding.
How to Install the PATCHRUNNER 2 Vertical Cable Manager
This guide provides step-by-step instructions for installing the PATCHRUNNER 2 Vertical Cable Manager onto a rack, ensuring proper mounting and configuration.
Estimated time: 45m
Tools needed:
Screwdriver, Wrench, Dead blow hammer
Supplies needed:
M10 Serrated Flange Bolts, M10 Serrated Flange Nuts, M6 x 16mm Serrated Hex Head Bolts, M6 Serrated Hex Head Nuts
- Mount the Vertical Cable Manager
Secure the Vertical Cable Manager to the rack using (4) M10 Serrated Flange Bolts and (4) M10 Serrated Flange Nuts. Ensure that the manager is level and firmly attached.
- Install the Door
Align the door hinge pins with the slots on the door supports and push the door closed until it is securely locked in place.
- Install the Bottom and Top Panels
Attach the bottom panel using the integrated hook and fasten it with (2) M10 x 16mm serrated hex head bolts and (2) M10 serrated hex head nuts. Repeat the process for the top panel using (2) M6 x 16mm serrated hex head bolts and (2) M6 serrated hex head nuts.
- Install the Waterfall
Adjust the width of the waterfall to fit your rack by loosening the (4) Phillips head screws. Align the waterfall slots around the backbone part of the manager and fasten it using (4) M6 x 8mm screws.
