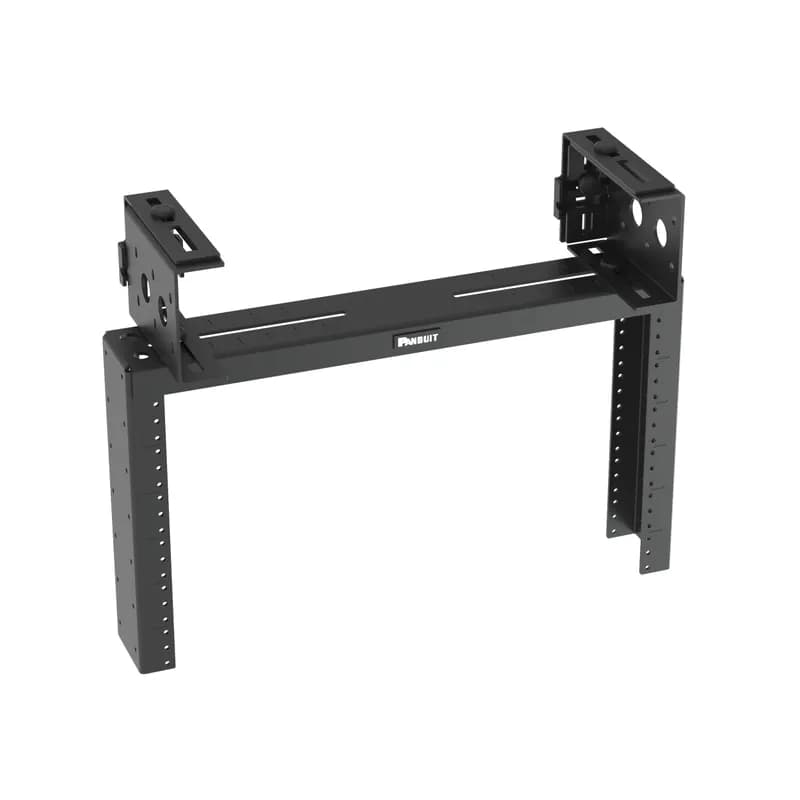

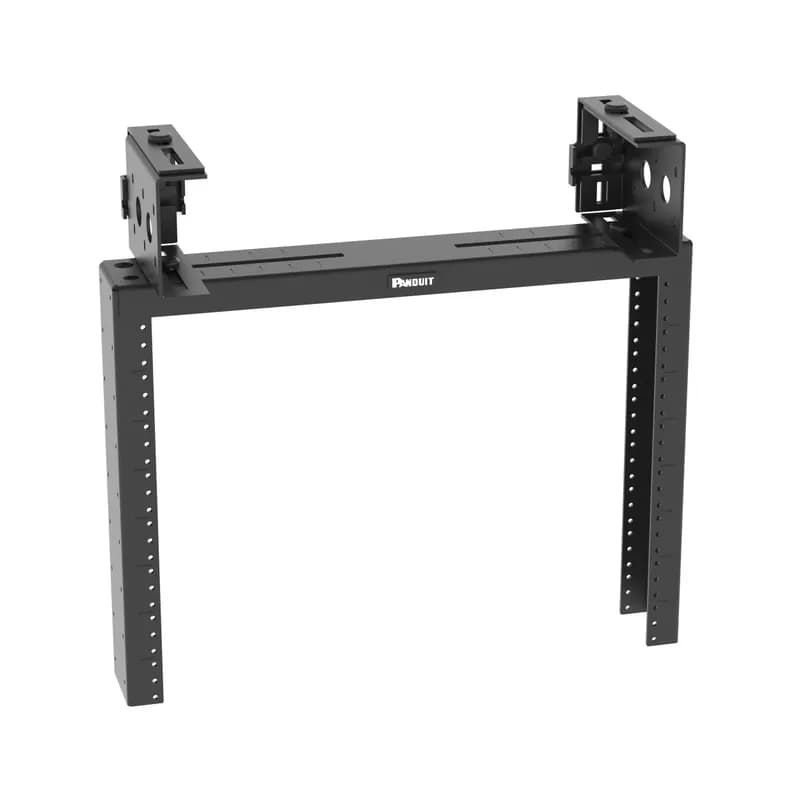

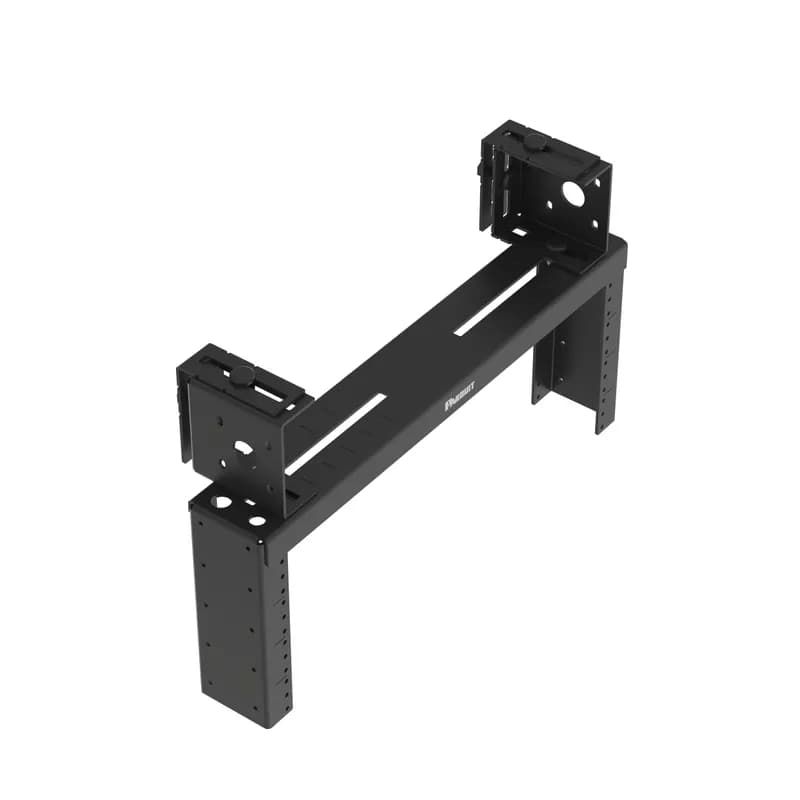

Panduit PZLRB4P6 - The PanZone 4-Post Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The 4-Post distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The 4-Post overhead rack is 6RU, made of steel, and is black.
Panduit

PZLRB4P6

UPC: 074983229710

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification SheetVideo Clip

Contact for Pricing

Overview

The Panduit PanZone 4-Post Overhead Distribution Rack, identified by SKU PZLRB4P6, is a 6RU steel rack engineered to strategically expand available rack space above existing racks or cabinets. This innovative solution is specifically designed to maximize spatial utilization within data centers and telecommunications rooms, addressing the growing need for efficient infrastructure deployment. The overhead rack offers exceptional mounting versatility, capable of attaching to most overhead racks or cable trays. Furthermore, it can be suspended directly from the ceiling, allowing for a multitude of installation configurations tailored to specific site requirements. The 4-Post overhead distribution rack facilitates the implementation of distinct zone areas, a critical feature for enhancing scalability and enabling quicker server deployments. Constructed from robust steel and finished in a professional black color, this 6RU rack provides a durable and aesthetically integrated component for structured cabling systems. Its design promotes the organized distribution of cabling and equipment, contributing to a more manageable and efficient network environment. By leveraging overhead space, the PZLRB4P6 effectively reduces the demand for valuable floor space, a significant advantage in space-constrained facilities. This overhead rack is a key element in Panduit's PanZone ecosystem, designed to support structured cabling solutions and streamline network infrastructure management. The ability to deploy zone areas with this rack directly contributes to faster server deployments, as equipment and cabling can be pre-organized and readily accessible within designated zones. The 6RU capacity is suitable for a range of networking hardware, including patch panels and switches, further supporting efficient cable management and the scalability required in modern high-density environments.
  • 6RU (10.5 in) height for standard 19-inch equipment
  • Steel construction with black powder-coated finish for durability
  • Mounts to overhead racks, cable trays, or suspends from ceiling
  • Enables zone-based cabling for scalability and faster deployments
  • Compatible with Panduit PanZone structured cabling solutions

Specifications

Color
Black
Depth
NA In.
Height
NA In.
Material
Steel
Standard
UL2416, EIA/ECA-310-E, RoHS Compliant
Type
Overhead Distribution Rack
Width
20.3 In.
Package Dimensions (L x W x H)
45.5 IN x 25.5 IN x 2.5 IN
Package Weight (Imperial)
25.6 lbs
The 2-Post rack provides a reliable foundation for mounting telecommunications and data center equipment. The 84 inch tall rack accepts 19-inch wide equipment with mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering from the bottom up. A range of cable managers and accessories work with the rack. The 3-inch deep channel rack is UL listed for 1,000 pounds and is made of extruded aluminum. The rack is 45 RU and black.

R2P

The 2-Post rack provides a reliable foundation for mounting telecommunications and data center equipment. The 84 inch tall rack accepts 19-inch wide equipment with mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering from the bottom up. A range of cable managers and accessories work with the rack. The 3-inch deep channel rack is UL listed for 1,000 pounds and is made of extruded aluminum. The rack is 45 RU and black.
The PanZone Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 2RU, rated for 40 pounds, made of steel, and is black.

PZLRB2U

The PanZone Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 2RU, rated for 40 pounds, made of steel, and is black.
The 2-Post rack provides a reliable foundation for mounting telecommunications and data center equipment. The 84 inch tall rack accepts 19-inch wide equipment with mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering from the bottom up. A range of cable managers and accessories work with the rack. The 6-inch deep channel rack is UL listed for 1,500 pounds and is made of steel. The rack is 45 RU and black.

R2P6S

The 2-Post rack provides a reliable foundation for mounting telecommunications and data center equipment. The 84 inch tall rack accepts 19-inch wide equipment with mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering from the bottom up. A range of cable managers and accessories work with the rack. The 6-inch deep channel rack is UL listed for 1,500 pounds and is made of steel. The rack is 45 RU and black.
The PanZone Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. This distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 8 RU, made of steel, and is black.

PZLRB8U

The PanZone Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. This distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 8 RU, made of steel, and is black.
The PanZone Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. This distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 6 RU, rated for 80 pounds, made of steel, and is black.

PZLRB6U

The PanZone Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. This distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 6 RU, rated for 80 pounds, made of steel, and is black.
The PanZone Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 4RU, rated for 60 pounds, made of steel, and is black.

PZLRB4U

The PanZone Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 4RU, rated for 60 pounds, made of steel, and is black.
The hinged wall mount bracket expands rack space to the wall, maximizing space in telecommunication rooms. This product can be used with other accessories to achieve an open wall mount rack application for patching or small active equipment. This bracket has an overall depth of 6.26 inches. The wall mount bracket is made of steel, is 1 RU, and is black.

WBH1

The hinged wall mount bracket expands rack space to the wall, maximizing space in telecommunication rooms. This product can be used with other accessories to achieve an open wall mount rack application for patching or small active equipment. This bracket has an overall depth of 6.26 inches. The wall mount bracket is made of steel, is 1 RU, and is black.
The Opticom Fiber Drawer is designed to organize fiber distribution when space is limited. The drawer is completely modular and accommodates up to 8 QuickNet cassettes, FAP and FMP adapter panels as well as 96 fiber and copper cables. The fiber drawer is steel, black, has 8 ports and fits in a 2 RU footprint.

FMD2

The Opticom Fiber Drawer is designed to organize fiber distribution when space is limited. The drawer is completely modular and accommodates up to 8 QuickNet cassettes, FAP and FMP adapter panels as well as 96 fiber and copper cables. The fiber drawer is steel, black, has 8 ports and fits in a 2 RU footprint.
The Opticom Fiber Drawer is designed to organize fiber distribution when space is limited. The drawer is completely modular and accommodates up to 4 QuickNet cassettes, FAP and FMP adapter panels as well as 48 fiber and copper cables. The fiber drawer is steel, black, has 4 ports and fits in a 1 RU footprint.

FMD1

The Opticom Fiber Drawer is designed to organize fiber distribution when space is limited. The drawer is completely modular and accommodates up to 4 QuickNet cassettes, FAP and FMP adapter panels as well as 48 fiber and copper cables. The fiber drawer is steel, black, has 4 ports and fits in a 1 RU footprint.

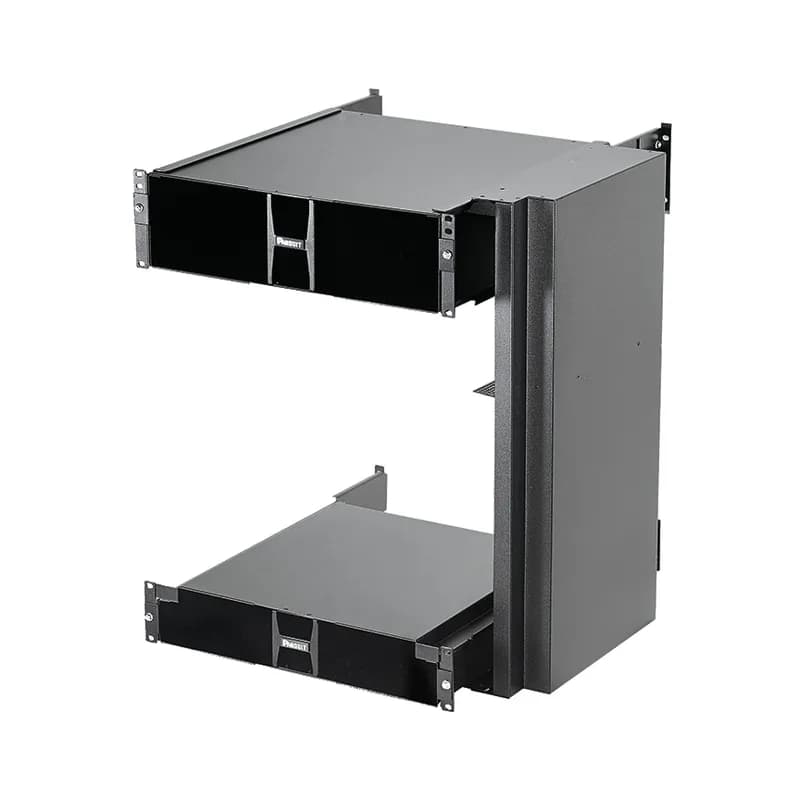

The air inlet duct directs cooling air from the cold aisle into the intake fans of switches. It fits in a 2 RU footprint and is designed for Cisco Nexus 7004 switch.

DIRBB2007S21W

The air inlet duct directs cooling air from the cold aisle into the intake fans of switches. It fits in a 2 RU footprint and is designed for Cisco Nexus 7004 switch.
The air inlet duct directs cooling air from the cold aisle into the intake fans of switches. It requires 3 RU above the switch and 2 RU below the switch and is designed for Cisco Catalyst 6807-XL switch.

DIRLC3210S17W

The air inlet duct directs cooling air from the cold aisle into the intake fans of switches. It requires 3 RU above the switch and 2 RU below the switch and is designed for Cisco Catalyst 6807-XL switch.
The air inlet duct directs cooling air from the cold aisle into the intake fans of switches. It fits in a 3 RU footprint and is designed for Cisco Catalyst 6880 switch.

DIRLC25S23W

The air inlet duct directs cooling air from the cold aisle into the intake fans of switches. It fits in a 3 RU footprint and is designed for Cisco Catalyst 6880 switch.

Frequently Asked Questions

What is the weight capacity of the PZLRB4P6 rack system?

The overhead 4-post rack system supports up to 150 lbs. of equipment and cabling. It is UL 2416 listed to this capacity.

How is the PZLRB4P6 rack system mounted?

The unit mounts to strut type structural steel suspended on threaded rod from the ceiling. This provides a secure overhead mounting configuration.

Is the depth of the PZLRB4P6 rack adjustable?

Yes, the rack is front to back adjustable from 18 in. to 30 in. deep. This accommodates a variety of equipment depths.

What are the dimensions of the 6 RU PZLRB4P6 rack?

The 6 RU rack has a height of 14.3 in., a width of 20.3 in., and a depth of 34.0 in.

What standards does the PZLRB4P6 rack system meet?

The overhead 4-post rack system is UL 2416 listed to 150 lbs.

What is included in the PZLRB4P6 package?

The package includes the 4-post rack, all necessary assembly hardware, and detailed installation instructions.

Is the PZLRB4P6 rack compatible with overhead pathways?

Yes, it is compatible with wire basket overhead pathways, waterfalls, and brackets. It also works with basket tray or ladder rack systems.

What is the weight capacity of the PZLRB4P6 rack system?

The overhead 4-post rack system supports up to 150 lbs. of equipment and cabling. It is UL 2416 listed to this capacity.

What standards does the PZLRB4P6 rack system meet?

The overhead 4-post rack system is UL 2416 listed to 150 lbs.

What is included in the PZLRB4P6 package?

The package includes the 4-post rack, all necessary assembly hardware, and detailed installation instructions.

How to Install the PZLRB4P6 Rack

This guide provides step-by-step instructions for assembling and mounting the PZLRB4P6 rack to an overhead structure.

Estimated time: 45m

Tools needed:

Screwdriver, Torque wrench, Drill

Supplies needed:

3/8-16 Carriage Bolts, 3/8-16 Carriage Nuts, #10-32 Screws, #10-32 Nuts, #12-24 Screws, 1/4-20 Bolts, 1/4-20 Strut Nuts, 1/4-20 Spring Washers

  1. Assemble the rack

    Use the provided 3/8-16 carriage bolts and nuts to secure the main brackets of the rack. Ensure the bolts are torqued to a minimum of 23.0 ft-lbs (31.2 N-m) for maximum stability.

  2. Mount the rack to the overhead structure

    Align the rack with the Unistrut overhead structure and secure it using 1/4-20 bolts, strut nuts, and spring washers. Torque the bolts to a minimum of 6 ft-lbs (8.1 N-m).

  3. Verify stability and weight capacity

    Ensure that the overhead structure can support the weight of the rack and any equipment, not exceeding 150 pounds. Check all connections for tightness and stability.
