Panduit

PUP6004IG-ULP

Name: TX6000 Cat 6 U/UTP Plenum copper cable, 23 AWG, 1000 ft reel, CMP-rated gray jacket.
Brand: Panduit
SKU: PUP6004IG-ULP
Availability: InStock

UPC: 613056801974

Documents & Media

Specification Sheet Warranty

Contact for Pricing

Minimum Qty: 27000

Multiplier: 1000

*Contact for lower quantities*

Overview

The Panduit TX6000 Cat 6 U/UTP Plenum copper cable (SKU: PUP6004IG-ULP) delivers reliable 10GbE performance for high-speed data networks in plenum-rated environments. Constructed with 23 AWG solid copper conductors and FEP/polyolefin insulation, this cable ensures minimal signal loss and crosstalk across all four twisted pairs, separated by a cross divider for optimal pair-to-pair isolation. The flame-retardant PVC (CMP-rated) gray jacket meets strict fire safety standards for plenum spaces, reducing installation risks in commercial buildings, hospitals, and data centers. Packaged on a 1000 ft (305m) reel in a sturdy box, the TX6000 is ideal for backbone and horizontal cabling in structured wiring systems. Compatible with Cat 6 standards, this cable supports Gigabit Ethernet and 10GBASE-T applications up to 55 meters, making it a cost-effective solution for future-proof network infrastructure. Trust Panduit’s US-manufactured quality for dependable connectivity in mission-critical environments.

23 AWG solid copper conductors for low signal loss
FEP/polyolefin insulation with cross divider for pair separation
CMP-rated flame-retardant PVC gray jacket for plenum spaces
Supports Gigabit Ethernet and 10GBASE-T up to 55 meters
Packaged on 1000 ft (305m) reel for easy deployment

Specifications

AWG size	23
Color	Gray
Construction	PVC
Material	Copper, FEP, Polyolefin, PVC
Number of Pins	4
Series	TX6000 Cat 6 U/UTP Plenum
Size	23 AWG
Type	Bulk Copper Cable
Package Dimensions (L x W x H)	15.2 IN x 13 IN x 15.2 IN
Package Weight (Imperial)	982.8 lbs

AP9641

UPS NTWK MGMT CARD POWERCHUTE NTWK SHUTDOWN ENVT MONITORING

PCMDS19003BK1

2U Hinged Finger Panel

SVNDZ-P167GT

VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color Gray

SVNDZ-P137GT

VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 13.5, Fits to Conduit Size NW/Metric 17/20, Color Gray

SVH-36-020

VH System Support Clip - Fits to Conduit Size NW/Metric 36/40, Color Gray

ACB21

Conduit Clip with Integral Lid, Nominal Conduit Size 21mm, Polyamide (Nylon) 66, Black

A802

Steel Raceway Joiner with GoldGalv finish, reinforcing plate and nuts. For use with 'A' series channel.

A238

Two Gang Outlet Box, Volume 38 Cubic Inches, Length 3.844 Inches, Width 3.53 Inches, Depth 3.45 Inches, Number of Knockout 5, Knockout Size 1/2 Inch, 3/4 Inch, and 1 Inch, Color Blue, Material PVC

MPNY-1000-0-C

Cable Tie Mounting Base, UV Black Nylon 6.6 for Temperatures up to 70 Degrees Celsius (158 F), Length of 25.14mm (0.99 Inches), Width of 25.14mm (0.99 Inches), Height of 5.08mm (0.198 Inches), Mechanical Strength 50 Newtons (11 Pounds), Hole Size #6, Synthetic Rubber Mounting Method, 100 Pack

MPNY-1000A-9-C

Cable Tie Mounting Base, Natural Nylon 6.6 for Temperatures up to 70 Degrees Celsius (158 F), Length of 28.58mm (1.125 Inches), Width of 28.58mm (1.125 Inches), Height of 5.08mm (0.20 Inches), Acrylic Adhesive Method, 100 Pack

TY29MX

High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)

TYH27M

Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)

DDW-120

Ethernet SHDSL Extender

PS-60

Power supply for DIN-rail

ARH 1656

DIN Rail ? DIN 35

REFK1904231BK1

24U 21.34W 31.5D CABINET BLK

ST4803PDGM

Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .

3085

Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included

ECK19H

Cable Manager, fits 19-inch open rack, Black, Steel

PPFS19010BK

6U PERF PANEL

STP6X12MIG

This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

F62ERLNSNSNM002

OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL

CESUM3-C15

Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.

PUP6C04IG-F

The TX6 Cat 6 U/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP/polyolefin insulation. The copper conductors shall be twisted in pairs. All four pairs shall be covered by a flame retardant PVC (CMP), Gray jacket. Packaged 1000 ft./305m in an easy payout carton.

PUP6AS04IG-GZ

Category 6A cable shall be constructed of 23 AWG copper conductorswith FEP insulation. The copper conductors shall be twisted in pairs andseparated by a cross-divider. All four pairs shall be surrounded by a nonconductiveAXT barrier tape and a flame retardant PVC (CMP) jacket.

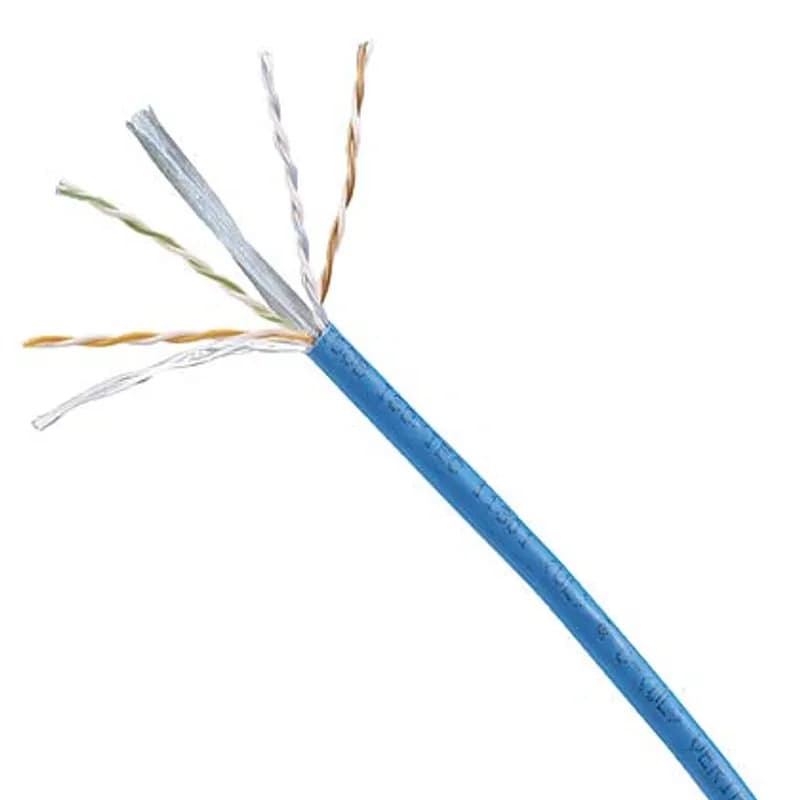

PUP6004IG-WZ

Category 6 cable shall exceed the ANSI/TIA-568.2-D and IEC61156-5 Category 6 component standards. The conductorsshall be 23 AWG construction with FEPor polyolefin insulation.The copper conductors shall be twisted in pairs, separated bya cross-divider and covered by a low smoke, flame-retardant(CMP) jacket.

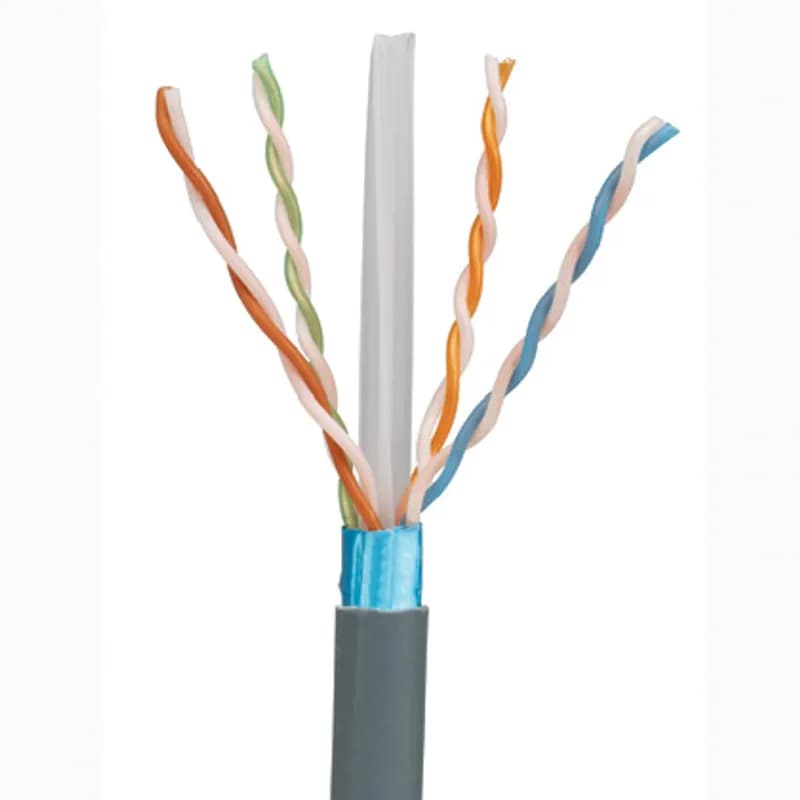

PFP6X04IG-UGZ

Category 6A cable shall be constructed of 23 AWG copperconductors with FEP insulation. The copper conductors shall betwisted in pairs and separated by an integrated pair separator.All four pairs shall be surrounded by an overall metallic foil shieldwithin a flame retardant PVC (CMP) jacket. The TX6A ShieldedCopper Cable must be installed as part of a complete TX6AShielded Copper Cabling System to achieve 10GBASE-T certifiedperformance.

PFP6C04IG-UGZ

Category 6 cable shall exceed the ANSI/TIA-568.2-E Category 6component standards. The conductors shall be 23 AWG constructionwith FEP (CMP) or PE (CMR) insulation. The copper conductors shall betwisted in pairs, separated by a cross divider, and all four pairs shall becovered with an overall foil and a low smoke, flame-retardant (CMP) orflame-retardant (CMR) PVC jacket.

NUL6C04WH-FE

The NK6 Cat 6 U/UTP LSZH copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant HDPE (LSZH), White jacket. Packaged 1000 ft./305m in an easy payout carton.

PUP6XHD04OR-G

The TX6A Cat 6A U/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors shall be twisted in pairs. All four pairs shall be surrounded by a metallic alien crosstalk barrier tape and covered by a flame retardant PVC (CMP), Orange jacket. Packaged 1000 ft./305m on a reel.

PUP6004BL-WLPZ

The TX6000 Cat 6 UTP copper cable is constructed of 23 AWG copper conductors with FEP/polyolefin (CMP) insulation. The copper conductors shall be twisted in pairs, separated by a cross-divider and covered by a low smoke, flame-retardant, plenum-rated, black jacket.

PUP6004OR-ULPZ

The TX6000 Enhanced Category 6 U/UTP Copper Cable is constructed of 23 AWG conductors with FEP/polyolefin insulation. The copper conductors are twisted in pairs, separated by a cross-divider and covered by a low smoke, flame-retardant (CMP) orange jacket supplied 305m (1000 ft.) in a reel in a carton. The cable has been tested as part of the TX6000 Enhanced Copper Cabling System and exceeds the ANSI/TIA-568.2-D and ISO 11801 Class E electrical channel requirements with guaranteed headroom.

PUP6004VL-WZ

PUP6C04RD-F

The TX6 Cat 6 U/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP/polyolefin insulation. The copper conductors shall be twisted in pairs. All four pairs shall be covered by a flame retardant PVC (CMP), Red jacket. Packaged 1000 ft./305m in an easy payout carton.

PUP6C04RD-W

The TX6 Cat 6 U/UTP copper cable is constructed of 24 AWG copper conductors with FEP/HDPE insulation. The copper conductors are twisted in pairs. All four pairs are surrounded by a PVC flame-retardant jacket. The red, plenum (CMP) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.

Frequently Asked Questions

What is the maximum operating voltage?

The maximum operating voltage for the cable is 80 V.

What is the maximum installation tension?

The maximum installation tension is 25 lbf (110 N).

What type of insulation is used?

The conductors are covered by FEP/polyolefin insulation.

Is the cable compatible with PoE applications?

Yes, it meets IEEE 802.3af and IEEE 802.3at for PoE applications.

What is the cable diameter?

The nominal diameter of the plenum cable is 0.225 in. (5.7mm).

What is the weight of the cable per 1000 ft?

The cable weighs 30 lbs. per 1000 ft. (13.6 kg/305m).

What standards does the cable comply with?

The cable exceeds ANSI/TIA-568.2-D and IEC 61156-5 Category 6 standards.

What is the temperature range for installation?

The temperature range for installation is 32°F to 122°F (0°C to 50°C).

What is the temperature range during operation?

The cable operates within a temperature range of -4°F to 167°F (-20°C to 75°C).

What is the cable's flame rating?

The cable has a flame rating of NFPA 262 and CSA FT-6.
