Panduit PUL6004BU-EY - The TX6000 Cat 6 U/UTP LSZH copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant HDPE (LSZH), Blue jacket. Packaged 1000 ft./305m on a reel in a box.
Panduit

PUL6004BU-EY

UPC: 074983006984

Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 36

Multiplier: 18

*Contact for lower quantities*

Overview

The Panduit TX6000 Cat 6 U/UTP LSZH copper cable (SKU: PUL6004BU-EY) is engineered for reliable data transmission in network installations. This cable features 23 AWG copper conductors, each insulated with High-Density Polyethylene (HDPE) for optimal signal integrity. The four pairs of conductors are twisted together and separated by a central cross divider, a design element that minimizes crosstalk and enhances performance. The entire assembly is encased in a flame-retardant HDPE jacket, specified as Low Smoke Zero Halogen (LSZH), ensuring safety in environments where fire retardancy and low smoke emission are critical. The distinctive blue jacket color aids in cable identification and management within structured cabling systems. This cable is supplied in a convenient 1000 ft. (305m) reel-in-a-box packaging, facilitating easy deployment and installation. It meets Category 6 performance standards, supporting data rates suitable for modern network applications. The construction prioritizes signal quality and safety compliance, making it a practical choice for commercial and industrial network infrastructure.
  • 23 AWG copper conductors for robust signal transmission.
  • HDPE insulation on individual conductors minimizes interference.
  • Twisted pair construction with cross divider reduces crosstalk.
  • Flame-retardant LSZH HDPE jacket for enhanced safety.
  • Supplied in a 1000 ft. (305m) reel-in-a-box for easy installation.

Specifications

Application
Indoor
Color
Blue
Conductor Material
Copper
Connection Type
U/UTP
Construction
U/UTP
Jacket Material
LSZH Material
Length
1000
Material
HDPE (LSZH)
Number of Conductors
4
Outside Diameter
NA In.
Series
TX6000
Size
23 AWG
Temperature Rating
NA F
Type
Bulk Copper Cable
Type
Copper Cable
Voltage Rating
NA V
Voltage Rating
NA V V
Package Dimensions (L x W x H)
27.6 IN x 52.8 IN x 43.8 IN
Package Weight (Imperial)
30.62 lbs
The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-3, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to a reel.

PUL6AV04BU-EG

The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-3, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to a reel.
The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.

PUR6004BU-W

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.
Copper cable, category 6A UTP, low smoke zero halogen (LSZH -3), 4-pair, conductors are 23 AWG with flame-retardant HDPE insulation, twisted in pairs, separated by an integrated pair divider, surrounded by a patent-pending MaTriX tape and protected by a LSZH (IEC 60332-3) jacket, blue.

PUZ6A04BU-EG

Copper cable, category 6A UTP, low smoke zero halogen (LSZH -3), 4-pair, conductors are 23 AWG with flame-retardant HDPE insulation, twisted in pairs, separated by an integrated pair divider, surrounded by a patent-pending MaTriX tape and protected by a LSZH (IEC 60332-3) jacket, blue.
The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.

PUR6004BU-FE

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.
IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 23 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, SHF1 compliant, HDPE jacket, Blue, DNV/GL and ABS certified, 3280ft/1000m reel

PSM7004BU-KEM

IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 23 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, SHF1 compliant, HDPE jacket, Blue, DNV/GL and ABS certified, 3280ft/1000m reel

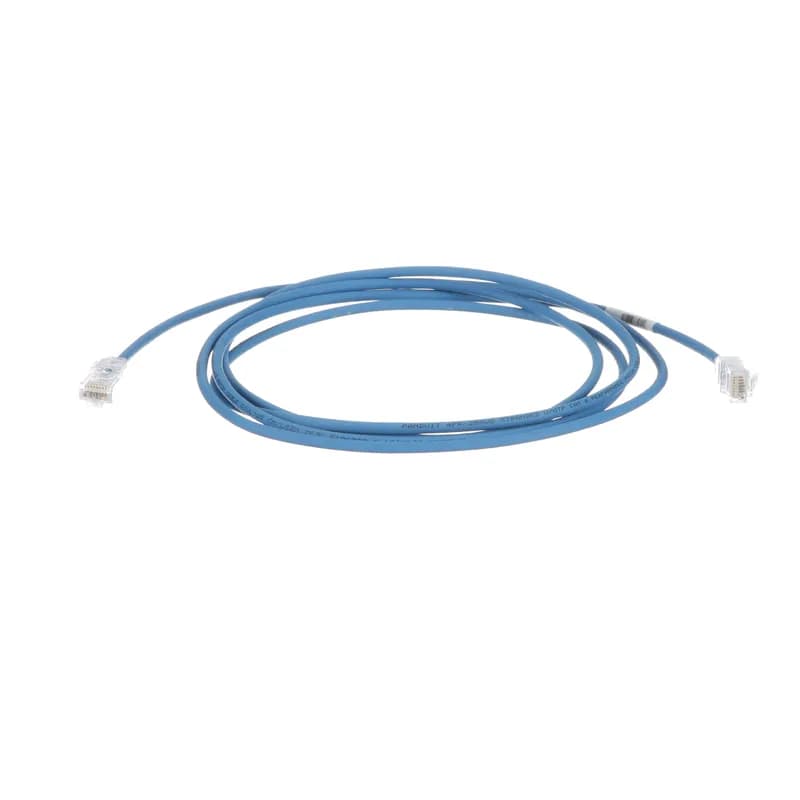

Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.

UTP28SP6MBU-Q

Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end.
Shielded copper cable, category 5e F/UTP, riser (CMR), 4-pair, conductors are 24 AWG construction with polyethylene insulation, twisted in pairs, surrounded by an overall polyester aluminum foil with a stranded copper drain wire and protected by a flame-retardant PVC jacket, blue.

PFR5504BU-UY

Shielded copper cable, category 5e F/UTP, riser (CMR), 4-pair, conductors are 24 AWG construction with polyethylene insulation, twisted in pairs, surrounded by an overall polyester aluminum foil with a stranded copper drain wire and protected by a flame-retardant PVC jacket, blue.
The TX6A Cat 6A shielded F/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield within a HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-3) cable is supplied 305 meters (1,000 feet) to a reel.

PFL6X04BU-CEG

The TX6A Cat 6A shielded F/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield within a HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-3) cable is supplied 305 meters (1,000 feet) to a reel.
IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket protected by stainless steel armor and secondary jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel

PSMDA7004BL-LED

IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket protected by stainless steel armor and secondary jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel
The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-1, IEC 60332-3-22, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to an easy pay-out carton.

PUL6004WH-FE

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The white, LSZH (IEC 60332-1, IEC 60332-3-22, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to an easy pay-out carton.
The TX6A Cat 6A shielded copper cable is a F/UTP Outside Plant (OSP) cable. The cable has a gel-filled construction to prevent moisture migration in underground and wet applications and a wide temperature range for extreme weather environments. The copper conductors are twisted in pairs, separated by a pair separator, covered with an overall foil shield and a UV-resistant and abrasion-resistant polyethylene (PE) jacket. This product is to be used in duct and conduit installations only.

PFO6X04BL-CEG

The TX6A Cat 6A shielded copper cable is a F/UTP Outside Plant (OSP) cable. The cable has a gel-filled construction to prevent moisture migration in underground and wet applications and a wide temperature range for extreme weather environments. The copper conductors are twisted in pairs, separated by a pair separator, covered with an overall foil shield and a UV-resistant and abrasion-resistant polyethylene (PE) jacket. This product is to be used in duct and conduit installations only.
The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to a reel.

PUL6AV04WH-EG

The TX6A Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a Vari-MaTriX Tape and a flame-retardant HDPE flame-retardant jacket. The white, LSZH (IEC 60332-3, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to a reel.

Frequently Asked Questions

What are the electrical performance standards?

The cable exceeds ISO 11801 Class E and ANSI/TIA-568-2.D standards at swept frequencies up to 250 MHz.

What type of insulation is used?

The conductors are insulated with HDPE (High-Density Polyethylene).

What is the maximum operating voltage?

The maximum operating voltage for the cable is 80V.

What is the operating temperature range?

The cable operates within a temperature range of -20°C to 60°C (-4°F to 140°F).

What is the cable diameter?

The cable diameter is 5.7 mm (0.224 in.).

Is the cable compatible with PoE applications?

Yes, the cable meets IEEE 802.3af and IEEE 802.3at standards for PoE applications.

What is the temperature rating for installation?

The installation temperature rating is 0°C to 50°C (32°F to 122°F).

What is the maximum installation tension?

The maximum installation tension for the cable is 110 N (25 lbf).

What is the flame rating of the cable?

The cable meets IEC 60332-1, IEC 60332-3-22, and other flame rating standards.

What packaging options are available?

The cable is available in 305m (1000 ft.) on a reel-in-a-box or 500m (1640 ft.) on a reel.
