Contact for Pricing
Overview
- Extends Power over Ethernet (PoE) capabilities
- 4-port receiver box design
- Supports reliable power and data transmission
- Ideal for industrial and commercial networks
- Part of Panduit's PoE Extender solutions family
Specifications
Color | Black |
Standard | UL 60950-1, RoHS Compliant |
Type | PoE Receiver |
Width | 3.88 In. |
Package Dimensions (L x W x H) | 4.1875 IN x 5.625 IN x 2.125 IN |
Package Weight (Imperial) | 0.616 lbs |

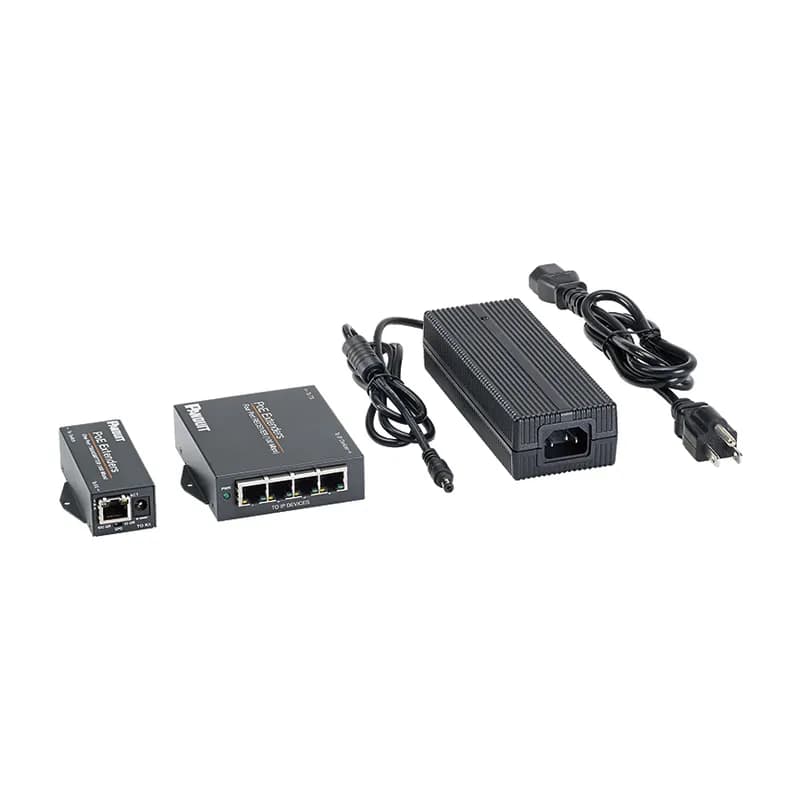

POEXKIT4
The PoE Extender Kit with 1 Port Tx And 4 Port Rx Box, 110W PS is part of Panduit's family of PoE Extender solutions.

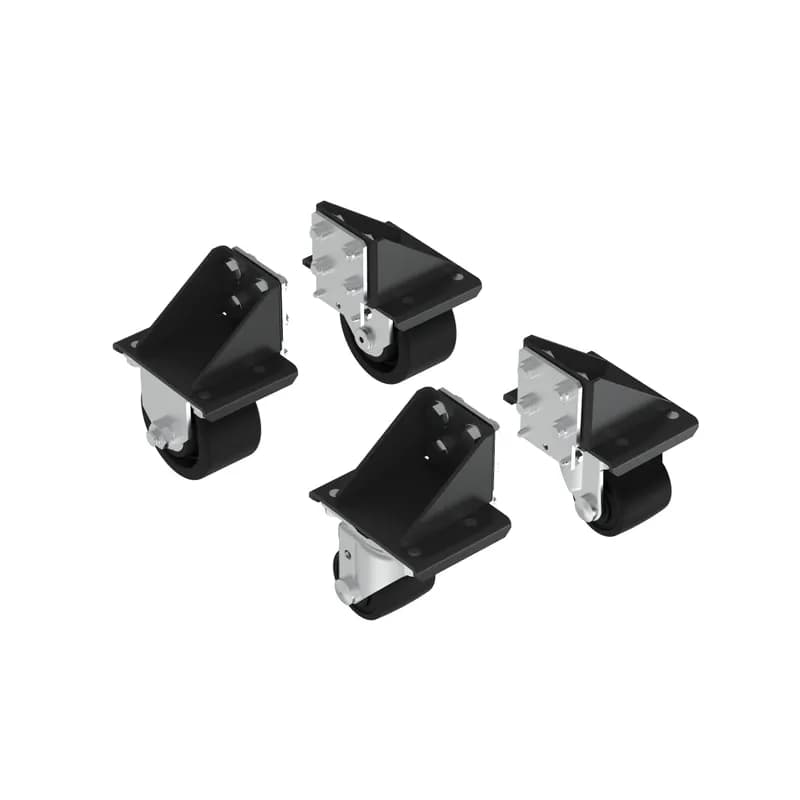

NCSTR4
The N-Type Cabinet Caster Kit includes two fixed casters for the front of the cabinet and two swivel casters for the rear of the cabinet. These cabinet casters add 24mm to the height of the cabinet. The caster kit also includes four mounting plates and 24 screws for installation. It is black.

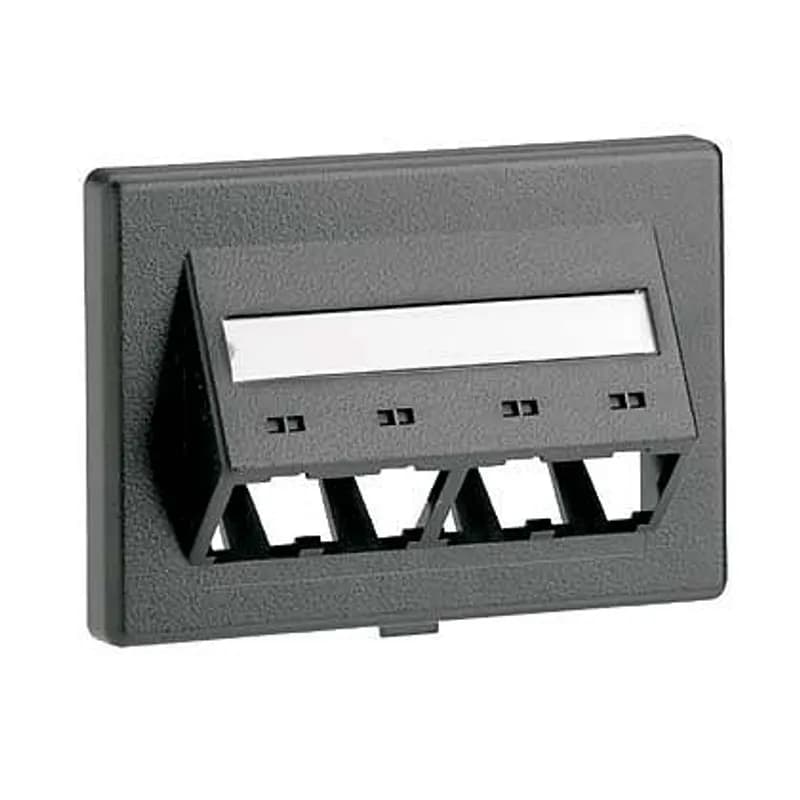

CFFPEBSL4BL
The Mini-Com Modular Furniture sloped Faceplate accepts four Mini-Com Modules. The faceplate mounts to Herman Miller's custom Beltline office furniture opening. The faceplate includes a label pocket for easy identification and is black.

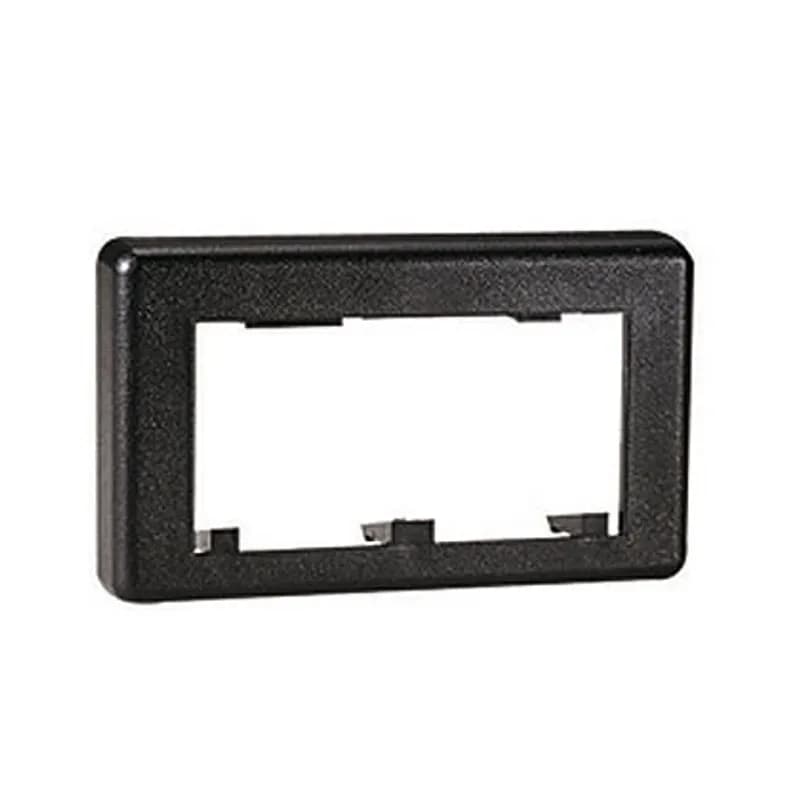

MFFPEBL
Faceplate extender for modular furniture with industry standard opening. Extends plate approximately 1/2 (12.7mm). Accepts CFFP4 and CFFPL4 modular furniture faceplates. Black.

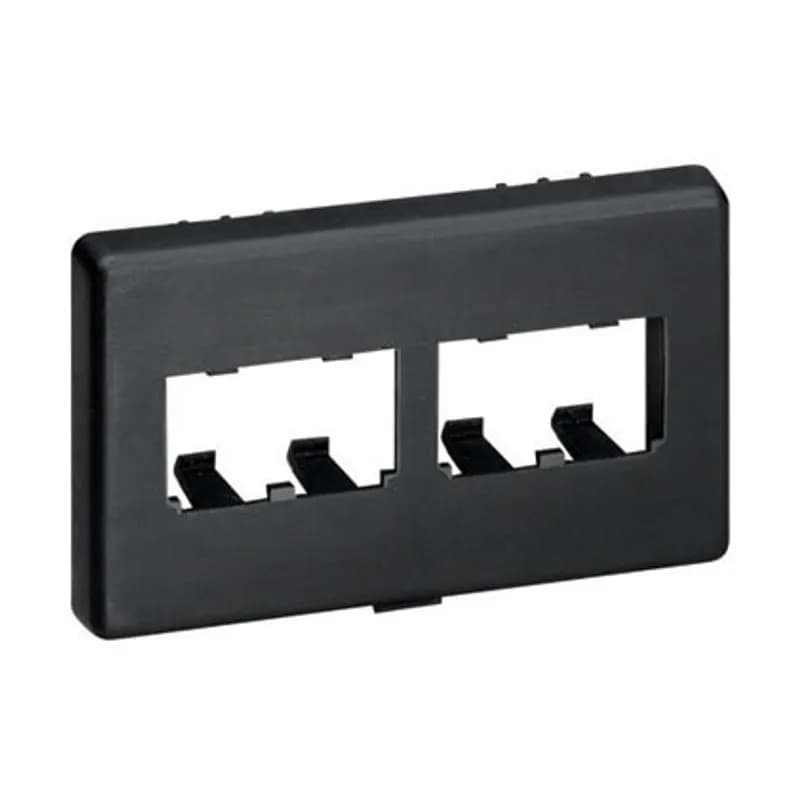

CFFPHM4BL
The Mini-Com Modular Furniture Faceplate accepts four Mini-Com Modules. The faceplate mounts to Herman Miller's custom baseline office furniture opening. The faceplate can be identified with an adhesive label and is black.
FQMAP86CG
The QuickNet SFQ MPO Fiber Adapter Panel Type B features 8 MPO key-up/key-up adapters. It snaps quickly into the rear of QuickNet Patch Panels for easy network deployment and quick migration. It is charcoal gray and comes with installed dust caps.
FQMAP66CG
The QuickNet SFQ MPO Fiber Adapter Panel Type B features 6 MPO key-up/key-up adapters. It snaps quickly into the rear of QuickNet Patch Panels for easy network deployment and quick migration. It is charcoal gray and comes with installed dust caps.

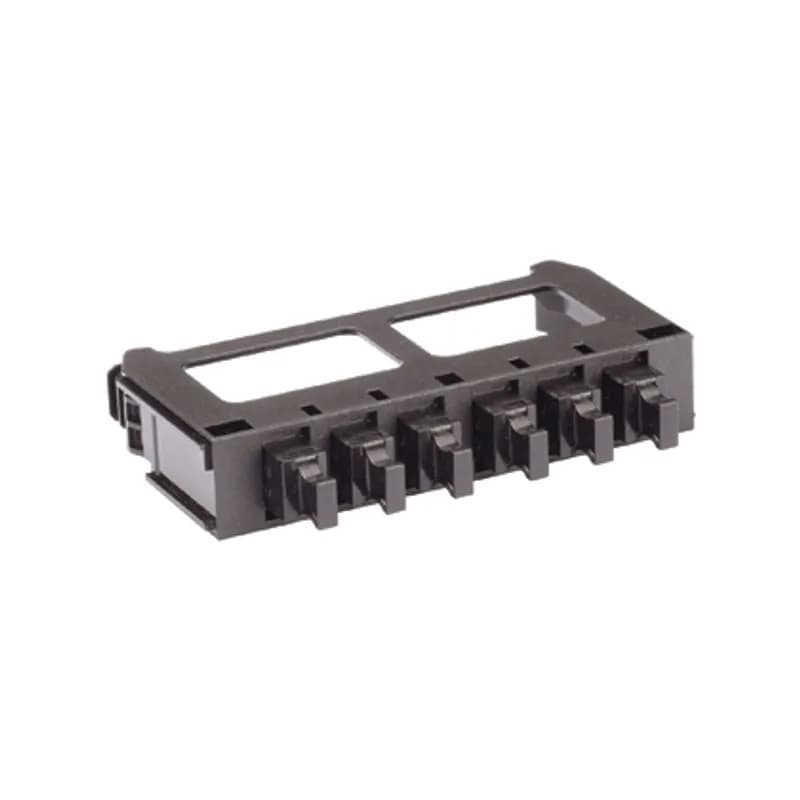

FQMAP65BL
The QuickNet SFQ MPO Fiber Adapter Panel Type A features 6 MPO key-up/key-down adapters. It snaps quickly into the rear of QuickNet Patch Panels for easy network deployment and quick migration. It is black and comes with installed dust caps.

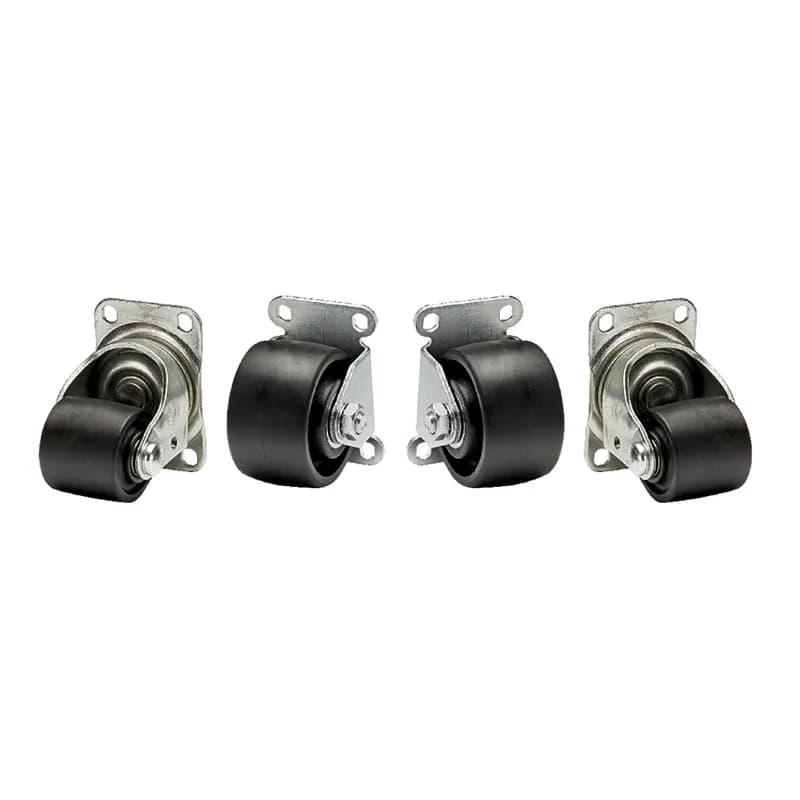

SCSTR4
Enhancing data center flexibility, our caster kit allows easy movement of your FlexFusion cabinets for better accessibility and management. Built to last within demanding environments.
Frequently Asked Questions
What is the maximum data transmission distance?
The PoE Extenders can deliver 10/100Mbps full duplex data up to 2000 ft. (610m) over standard 2 or 4-pair twisted-pair cable.
How much PoE power can the extenders provide?
The PoE Extenders can provide up to 25.5W PoE power per 802.3af and 802.3at specification at receiver output ports.
Can the PoEXRX1 support more than 25.5W PoE?
Yes, when connected to Cisco UPOE-supporting switches and powered devices, the PoEXRX1 can increase available power to more than 25.5W, up to 50W.
What is included in the POEXKIT1-NP?
The POEXKIT1-NP includes a 1-port transmitter box (POEXTX1), a 1-port receiver box (POEXRX1), and a 60 W, 55 V power supply.
Are the PoE Extenders compatible with existing switches?
Yes, the extenders are compatible with existing PoE or non-PoE switches and easily integrate into existing infrastructure to extend PoE beyond 100 meters.
What is the power consumption of the extenders?
The power consumption of the PoE Extenders is 1.5 Watts.
What data rates do the extenders support?
The extenders support 10BASE-T (10Mbps) or 100BASE-TX (100Mbps). Both the switch and end IP device must be capable of the same data rate.
What PoE standards do end devices need to meet?
End IP devices must be IEEE 802.3af/at compliant to work with the PoE Extenders.
What is the operating temperature range?
The operating temperature range for the PoE Extenders is -40°F to 158°F (-40°C to 70°C).
What are the cable requirements for the extenders?
The required cable is 24 AWG 2-pair Category 5e. The recommended cable is 23 AWG 4-pair Category 6.
How to Install the POEXRX4 PoE Extender
This guide provides step-by-step instructions for installing and configuring the POEXRX4 PoE Extender for optimal performance.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, AC power cord
- Mount the POEXRX4
Secure the POEXRX4 to a suitable surface using the provided mounting screws. Ensure it is level and firmly attached.
- Connect the transmitter
Using a Category 5e or higher cable, connect the port marked 'TO SWITCH' on the POEXTX1 to a PoE-capable port on your switch.
- Wire the receiver
Connect a copper cable from the 'TO RX' port on the POEXTX1 to the 'TO TX' port on the POEXRX1. Ensure all connections are secure.
- Power the receiver
If using local power, plug the DC barrel connector of the power supply into the POEXRX1 and connect the AC power cord to a grounded outlet.
- Connect IP devices
Using a copper cable or patch cord, connect your IP devices to the 'TO IP DEVICE' port on the POEXRX1.
- Verify connections
Use a multimeter to check all connections for proper voltage and continuity. Ensure that the system is grounded according to safety standards.
