Contact for Pricing
Overview

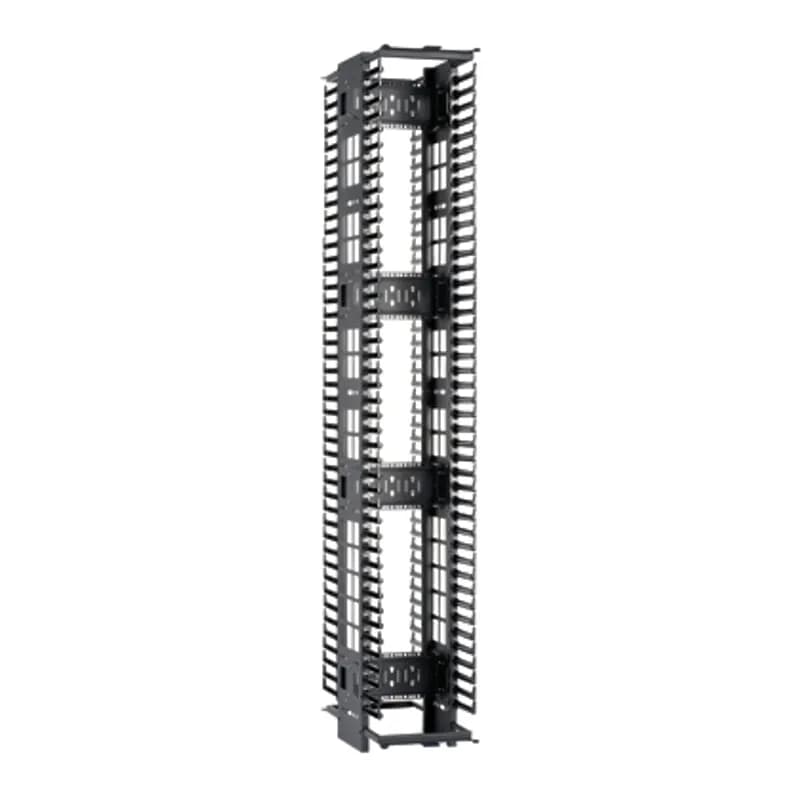

- High capacity 52RU vertical cable management for dense networks.
- Accommodates Category 6A cables with wide and deep features.
- Integral EIA zero RU mounting frees up valuable rack space.
- Durable 16-gauge steel construction with black polyester powder paint finish.
- Dual-sided design for comprehensive cable organization.
Specifications
Color | Black |
Depth | 23.3 In. |
Material | Steel |
Mounting Type | EIA zero RU mounting |
Rack Spaces* | 52 |
Series | PatchRunner |
Size | 52RU |
Standard | RoHS |
Type | Dual Sided Manager |
Width | 6 In. |
Package Dimensions (L x W x H) | 96.5 IN x 10.75 IN x 6.5 IN |
Package Weight (Imperial) | 63 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
PDCP2078
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What are the dimensions of the PEV8?
The PEV8 has a height of 83.5 in, width of 8.0 in, and depth of 27.5 in.
Is the PEV8 compatible with standard racks?
Yes, the PEV8 is compatible with standard 19 in EIA racks and can be mounted in a zero RU format.
What is the maximum depth of the PEV8?
The maximum depth of the PEV8 is 27.5 in.
What is the installation requirement for the PEV8?
The PEV8 requires mounting on a standard 19 in EIA rack and can be installed in a zero RU format.
What is the capacity of the PEV8?
The PEV8 has a RU capacity of 45 and can manage up to 9 rows of cables.
What is the cable management capability of the PEV8?
The PEV8 is designed for high performance cabling, including Category 6A, with integral bend radius control.
Can the PEV8 be installed in a dual-sided configuration?
Yes, the PEV8 is available in a dual-sided configuration for better cable management.
How does the PEV8 facilitate cable management?
The PEV8 features removable fingers and optional cable retainers to help organize and secure cables.
What types of cables can the PEV8 manage?
The PEV8 is designed to manage high performance cables, including Category 6A and fiber cables.
What accessories can be mounted on the PEV8?
The PEV8 accepts various EIA 19 in accessories like patch panels and strain relief bars.
