Contact for Pricing
Minimum Qty: 30
Multiplier: 1
*Contact for lower quantities*

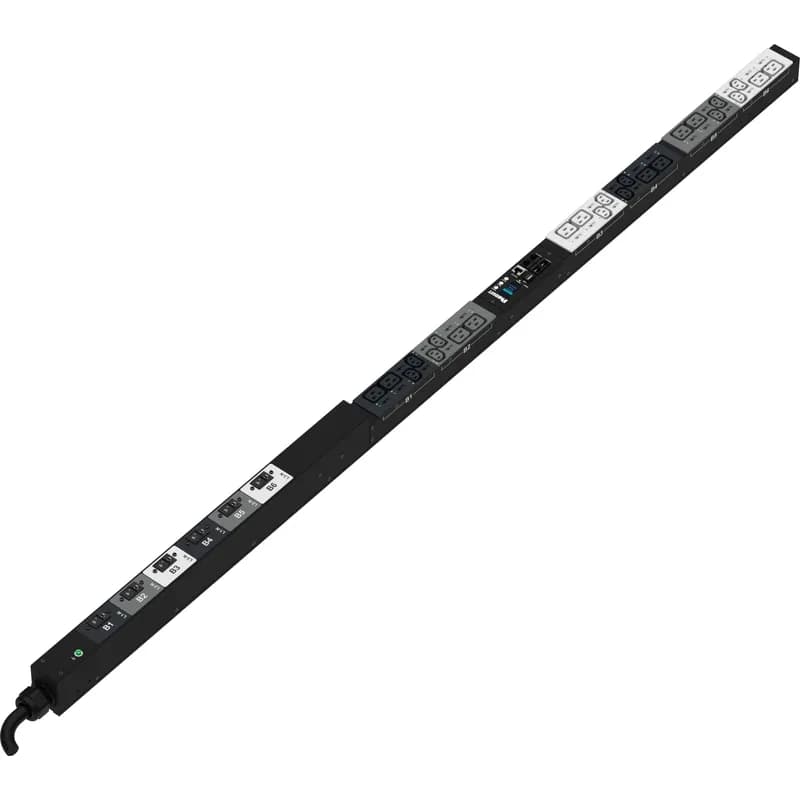

Overview
- 24 Outlets: 12 x C13 and 12 x C19 for versatile device connectivity.
- 30 Amp, 415 Volt, Three-Phase Power: Supports high-density power requirements.
- NEMA L22-30P Input Plug: Standard connector for industrial three-phase power.
- 10-foot (3-meter) Power Cord: Offers flexibility in installation placement.
- G5 Monitored Input: Provides real-time power consumption and environmental monitoring.
Specifications
Package Dimensions (L x W x H) | 21 IN x 9 IN x 16 IN |
Package Weight (Imperial) | 21 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
PDCP2078
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What is the part number P36D02M?
The P36D02M is a Monitored Input (MI Series) PDU from Panduit's G5 Series, designed for 415VAC 3-Phase power.
What are the electrical specifications for P36D02M?
The P36D02M operates on 415VAC, 3-Phase power with an input current of 30A per phase, providing 17.3 kVA apparent power.
What outlets does the P36D02M PDU have?
The P36D02M PDU features a total of 36 outlets, comprising 24 IEC C13 outlets and 12 IEC C19 outlets.
What are the physical dimensions of the P36D02M?
The P36D02M has a length of 68.9 inches, a width of 2.0 inches, and a depth of 2.1 inches at the outlet position.
What is the operating temperature for Panduit G5 Series PDUs?
Panduit G5 Series PDUs are built with premium components to withstand temperatures up to 140°F (60°C) at full load.
What warranty is included with Panduit G5 Series PDUs?
Panduit G5 Series PDUs come with a 3-year standard warranty, which can be extended to a 5-year warranty.
What network connectivity does the PDU offer?
The PDU includes a 1 GB On Board Ethernet Connection that auto-negotiates to 1GB network switches and supports Redundant Network Access (RNA).
Is the PDU controller hot-swappable?
Yes, the PDU features a hot-swappable controller with a large OLED display for easy upgrades and maintenance.
What security features are included with the PDU?
The PDU offers enhanced security with certificate-based advanced asymmetric encryption, validated with multiple security scanning tools.
Can the PDU monitor power and environmental conditions?
Yes, the PDU provides real-time monitoring of power, environmental conditions, and cabinet security.
How to Install the Panduit G5 PDU
This guide provides step-by-step instructions for installing and configuring the Panduit G5 Power Distribution Unit (PDU) in a data center rack.
Estimated time: 1h
Tools needed:
Phillips screwdriver, Torx screwdriver, Multimeter
Supplies needed:
Mounting screws, Cage nuts, Ground bonding cable
- Mount the PDU
Align and install the mounting buttons with the screw holes on the face of the PDU. Insert the mounting buttons into the keyhole slots on the PDU mounting bracket in the rack.
- Connect the Ground Bonding Cable
Locate the external ground bonding point on the chassis of the PDU. Attach the ground bonding cable to this point to ensure a reliable grounded connection.
- Connect the PDU to Power Source
Turn the feed circuit breaker Off. Connect the PDU to an appropriately rated branch circuit. Turn the feed circuit breaker On and verify that the OLED screen displays the main menu.
- Configure the PDU
Access the Web interface of the PDU. Navigate to the System Management page and select the correct input cord type. Save the settings to complete the configuration.
