Contact for Pricing
Overview
- 30 amp, 208V three-phase power distribution with (6) C19 outlets
- NEMA L15-30P input plug and 10-foot (3m) power cord for flexible installation
- Monitored input for real-time power consumption tracking and remote management
- Durable steel housing with black, low-gloss textured paint for rack-mount applications
- Meets UL/cUL 60950 and EIA 310-D standards for reliability and compliance
Specifications
Amperage Rating | 30 A |
Control | Monitored Input |
Current Rating | 30 A |
Frequency Rating, Maximum | 208 V |
Frequency Rating, Minimum | 208 V |
Length | NA In. |
Material | Metal |
Mounting | Horizontal |
Nema Rating | NEMA L15-30P |
Number Of Receptacles | (6)C19 |
Phase | 3 |
Poles | 3P |
Receptacle | IEC C19 |
Series | G5 Monitored Input PDU |
Standard | UL Listed File number: E218078 |
Type | PDU |
Voltage Rating | 208 V |
Wattage | 8600 W |
Width | 17.5 in |
Width | 444.5 mm |
Package Dimensions (L x W x H) | 20.7 IN x 15.7 IN x 8.7 IN |
Package Weight (Imperial) | 20 lbs |

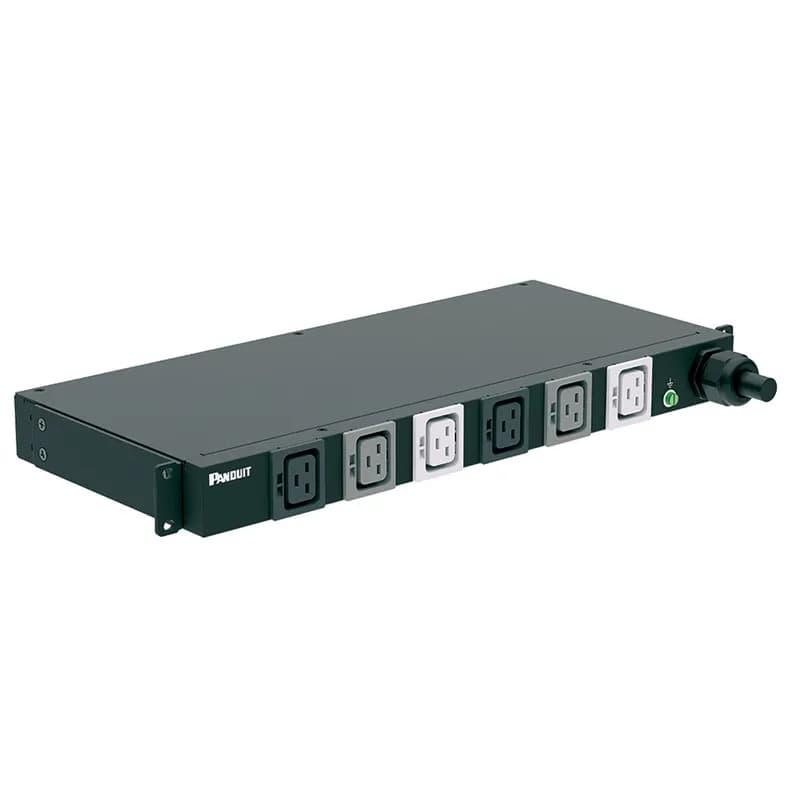

P06B49M
This Panduit G5 Basic PDU features (6) C19 outlets. It is a 30 amp, 208 V, three phase PDU with a NEMA L15-30P input plug and a 10 foot (3m) power cord. The PDU is black.

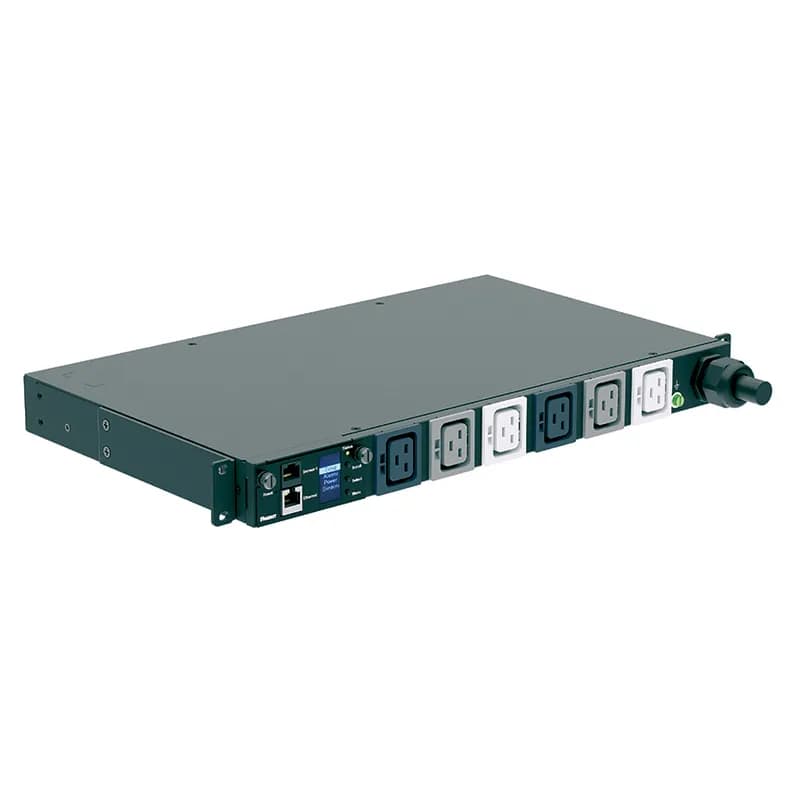

P06D17M
This Panduit G5 Monitored Input PDU features (6) C19 outlets. It is a 30 amp, 208 V, three phase PDU with a NEMA L21-30P input plug and a 10 foot (3m) power cord.

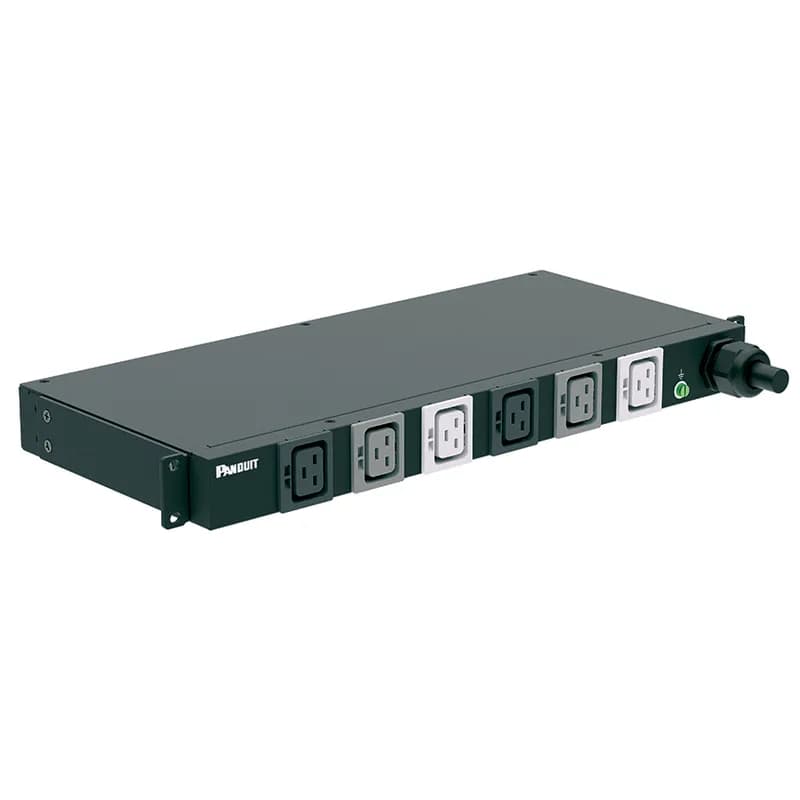

P06B50M
This Panduit G5 Basic PDU features (6) C19 outlets. It is a 30 amp, 208 V, three phase PDU with a NEMA L21-30P input plug and a 10 foot (3m) power cord. The PDU is black.
P12B36M
This Panduit G5 Basic PDU features (12) C13 outlets. It is a 32 amp, 230 V, single phase PDU with an IEC 60309 2P+E 6h 32A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.

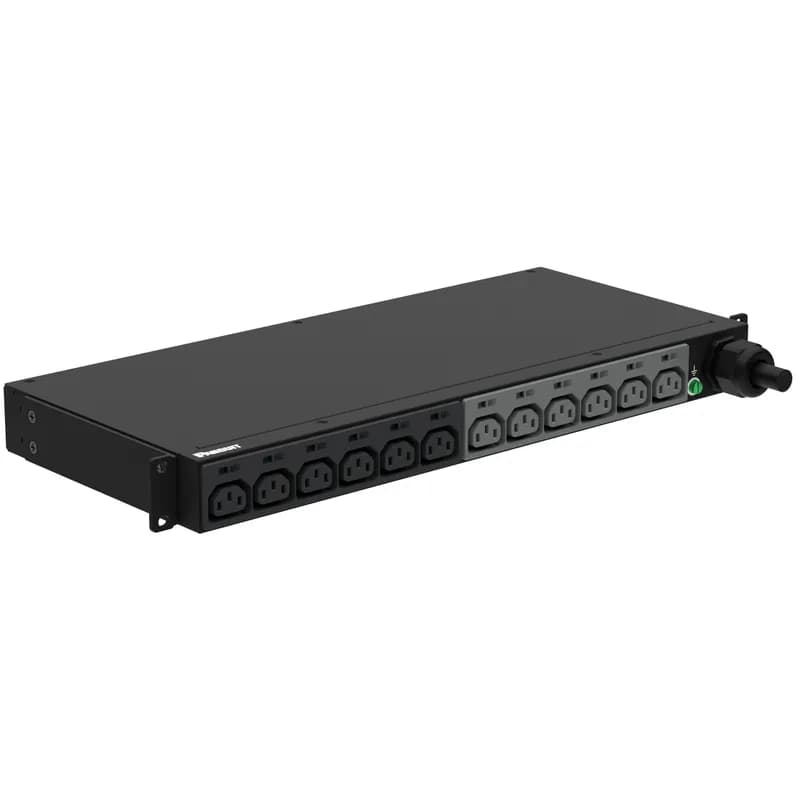

P12B47M
This Panduit G5 Basic PDU features (12) C13 outlets. It is a 30 amp, 208 V, single phase PDU with a NEMA L6-30P input plug and a 10 foot (3m) power cord. The PDU is black.

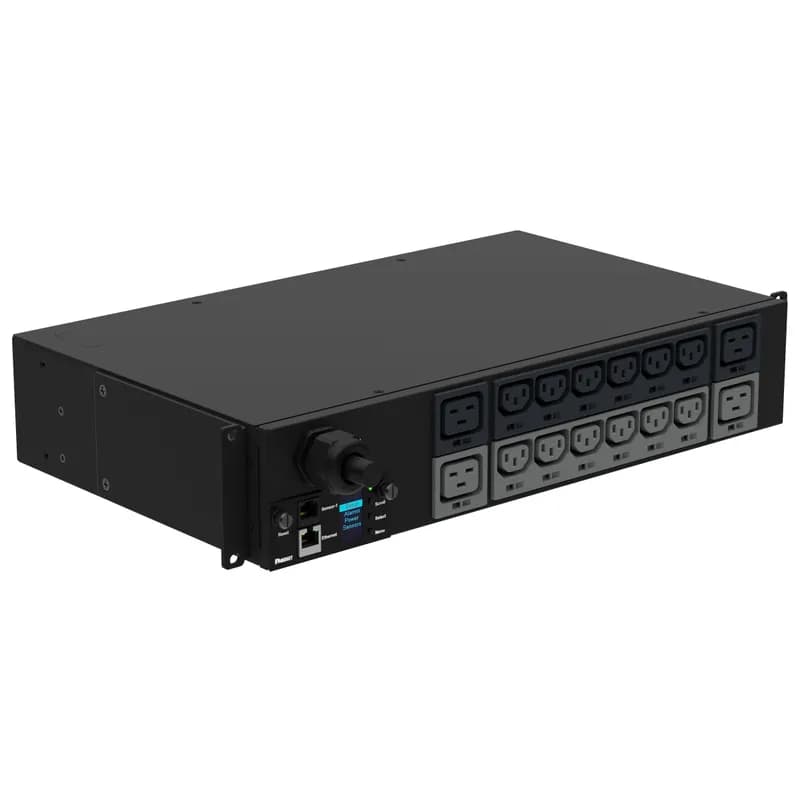

P16D14M
This Panduit G5 Monitored Input PDU features (12) C13 and (4) C19 outlets. It is a 30 amp, 208 V, single phase PDU with a NEMA L6-30P input plug and a 10 foot (3m) power cord.

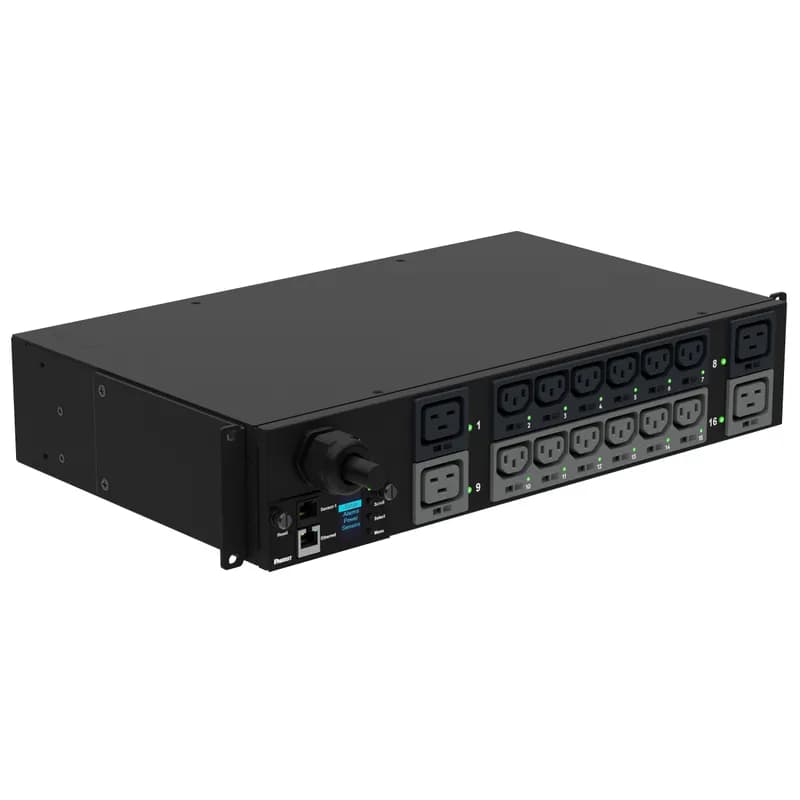

P16E19M
This Panduit G5 Monitored Switched PDU features (12) C13 and (4) C19 outlets. It is a 30 amp, 208 V, single phase PDU with a NEMA L6-30P input plug and a 10 foot (3m) power cord.

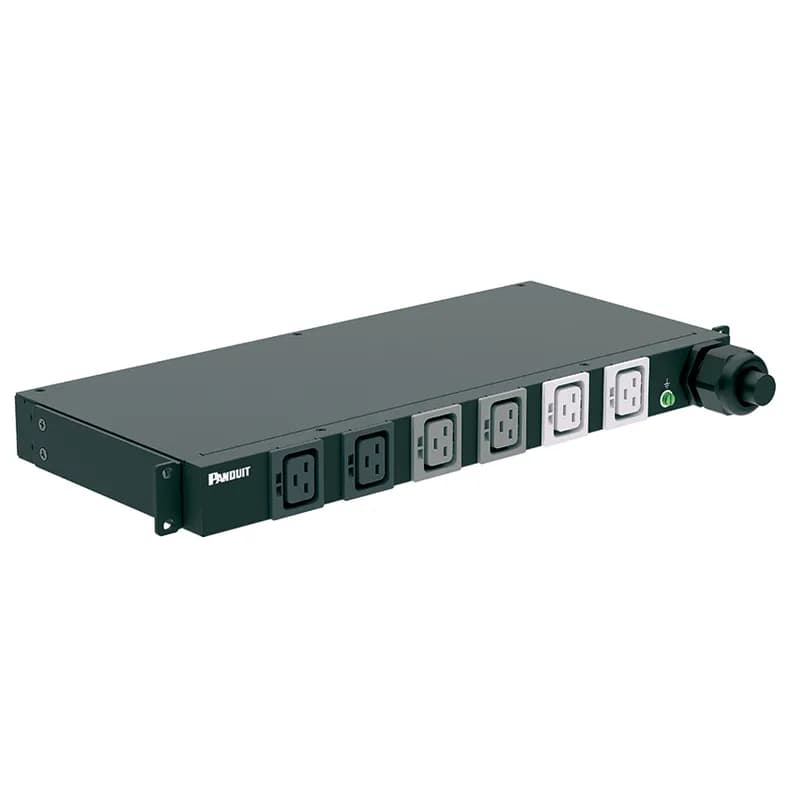

P06B48M
This Panduit G5 Basic PDU features (6) C19 outlets. It is a 50 amp, 208 V, single phase PDU with a CS8265C input plug and a 10 foot (3m) power cord. The PDU is black.
P36B26M
This Panduit G5 Basic PDU features (30) C13 and (6) C19 outlets. It is a 30 amp, 208 V, three phase PDU with a NEMA L21-30P input plug and a 10 foot (3m) power cord. The PDU is black.
P06B03M
This Panduit G5 Basic PDU features (6) C19 outlets. It is a 60 amp, 208 V, three phase PDU with an IEC 60309 3P+E 9h 60A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.
P16E26M
This Panduit G5 Monitored Switched PDU features (12) C13 and (4) C19 outlets. It is a 32 amp, 230 V, single phase PDU with an IEC 60309 2P+E 6h 32A (IP44) input plug and a 10 foot (3m) power cord.

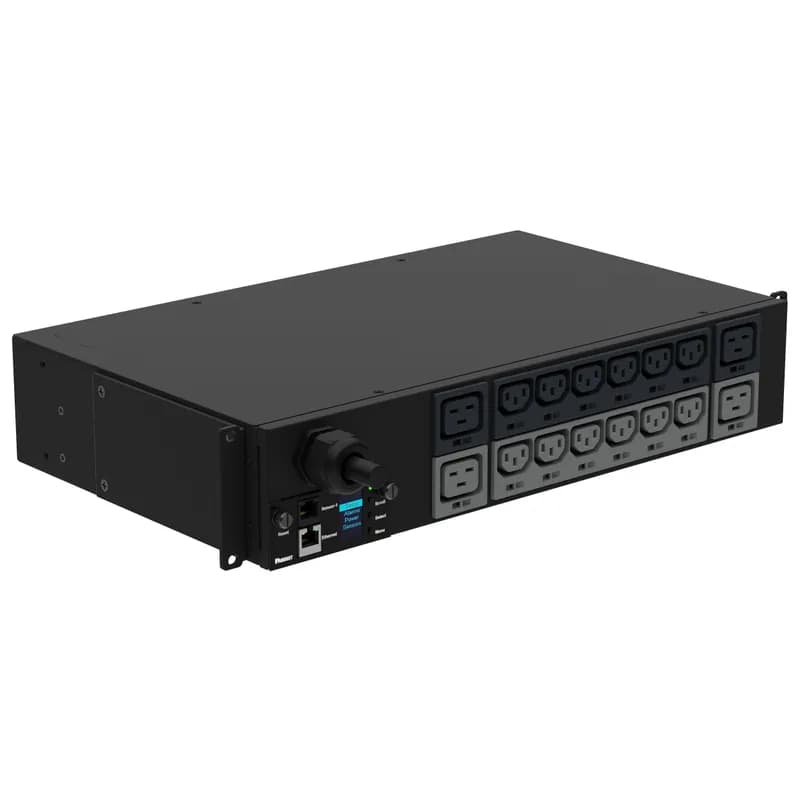

P16D37M
This Panduit G5 Monitored Input PDU features (12) C13 and (4) C19 outlets. It is a 32 amp, 230 V, single phase PDU with an IEC 60309 2P+E 6h 32A (IP44) input plug and a 10 foot (3m) power cord.Frequently Asked Questions
What is the form factor and input plug type for P06D16M?
The P06D16M PDU has a 1U form factor and uses an L15-30P input plug type.
What is the apparent power rating for the P06D16M PDU?
The P06D16M PDU has an apparent power rating of 8.6 kVA.
What is the input voltage and current for P06D16M?
The P06D16M operates on 208VAC, 3-Phase, with an input current of 30 A per phase.
What type and number of outlets does P06D16M have?
The P06D16M PDU is equipped with six C19 outlets.
What are the dimensions of the P06D16M PDU?
The P06D16M PDU has a length of 1.7 in, a width of 17.5 in, and a depth at the outlet position of 10.6 in.
What type and number of outlets does P06D16M have?
The P06D16M PDU is equipped with six C19 outlets.
What are the dimensions of the P06D16M PDU?
The P06D16M PDU has a length of 1.7 in, a width of 17.5 in, and a depth at the outlet position of 10.6 in.
What is the input voltage and current for P06D16M?
The P06D16M operates on 208VAC, 3-Phase, with an input current of 30 A per phase.
What is the apparent power rating for the P06D16M PDU?
The P06D16M PDU has an apparent power rating of 8.6 kVA.
What is the form factor and input plug type for P06D16M?
The P06D16M PDU has a 1U form factor and uses an L15-30P input plug type.
How to Install the Panduit G5 Power Distribution Unit (PDU)
This guide provides step-by-step instructions for installing and configuring the Panduit G5 PDU in a data center rack.
Estimated time: 1h
Tools needed:
Phillips screwdriver, Torx screwdriver, Multimeter
Supplies needed:
Mounting screws, Cage nuts, Ground bonding cable
- Mount the PDU
Align and install the mounting buttons with the screw holes on the sides of the PDU. Insert the mounting buttons into the keyhole slots on the PDU mounting bracket in the rack to secure it.
- Connect the Ground Bonding Cable
Attach the ground bonding cable to the external ground bonding point located on the chassis of the PDU. Ensure that the connection is secure to prevent electric shock.
- Connect the PDU to Power Source
Turn off the feed circuit breaker. Connect the PDU to an appropriately rated branch circuit and ensure all circuit breakers on the PDU are set to On. Finally, turn the feed circuit breaker On.
- Configure the PDU
Access the Web interface to configure the input cord type. Navigate to the System Management page, select Set Input Cord, choose the correct cord type, and save the settings.
