Overview
- 8-port Multi-port Service Terminal
- Hardened outdoor SC/APC connectors
- Fully sealed and IP68 protected
- 200 ft unterminated stub type dielectric cable
- Suitable for outdoor drop cable connections
Specifications
Application | OS2 |
Connection Type | SC/APC connectors |
Ip Rating | IP68 |
Length | 16.3 in |
Length | 414.02 mm |
Material | Designed to meet or exceed 94-5VA |
Poles | 8 |
Size | 200 ft |
Special Features | Above Ground, Below Ground |
Standard | IEC 60529, IP68 + 2 m Waterhead, Telcordia GR-3120-CORE, Telcordia GR-326-CORE, Telcordia GR-771-CORE |
Temperature Rating, Maximum | 158 F |
Temperature Rating, Maximum | 70 C |
Temperature Rating, Minimum | 158 F |
Temperature Rating, Minimum | 70 C |
Type | Fiber Optic Multi-Port Service Terminal |
Package Dimensions (L x W x H) | 20.624 IN x 22.748 IN x 5.6 IN |
Package Weight (Imperial) | 3 lbs |
P-MST-8D-500

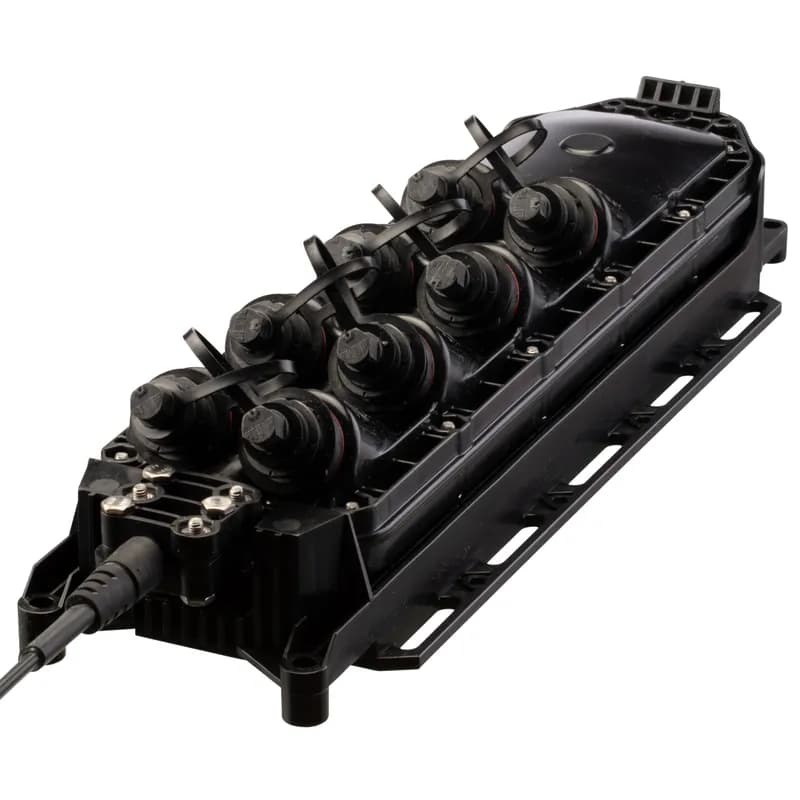

8-Port Multi-port Service Terminal suitable for connection with drop cables with hardened outdoor SC/APC connectors. Fully sealed and IP68 protected. Unterminated stub type dielectric cable, 500 ft.
P-MST-12D-200

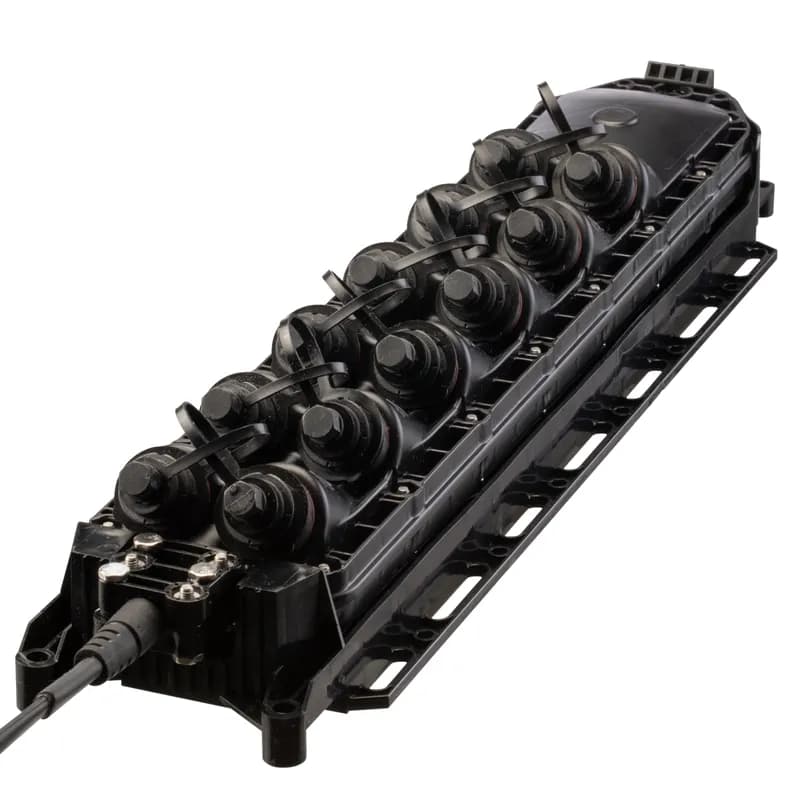

12-Port Multi-port Service Terminal suitable for connection with drop cables with hardened outdoor SC/APC connectors. Fully sealed and IP68 protected. Unterminated stub type dielectric cable, 200 ft.
P-MST-8T-200
8-Port Multi-port Service Terminal suitable for connection with drop cables with hardened outdoor SC/APC connectors. Fully sealed and IP68 protected. Unterminated stub type toneable cable, 200 ft.
P-MST-8T-500
8-Port Multi-port Service Terminal suitable for connection with drop cables with hardened outdoor SC/APC connectors. Fully sealed and IP68 protected. Unterminated stub type toneable cable, 500 ft.
P-MST-12T-200
12-Port Multi-port Service Terminal suitable for connection with drop cables with hardened outdoor SC/APC connectors. Fully sealed and IP68 protected. Unterminated stub type toneable cable, 200 ft.
P-MST-12D-500
12-Port Multi-port Service Terminal suitable for connection with drop cables with hardened outdoor SC/APC connectors. Fully sealed and IP68 protected. Unterminated stub type dielectric cable, 500 ft.
P-MST-12T-500
12-Port Multi-port Service Terminal suitable for connection with drop cables with hardened outdoor SC/APC connectors. Fully sealed and IP68 protected. Unterminated stub type toneable cable, 500 ft.
P-MST-4T-500
4-Port Multi-port Service Terminal suitable for connection with drop cables with hardened outdoor SC/APC connectors. Fully sealed and IP68 protected. Unterminated stub type toneable cable, 500 ft.
P-MST-4D-200

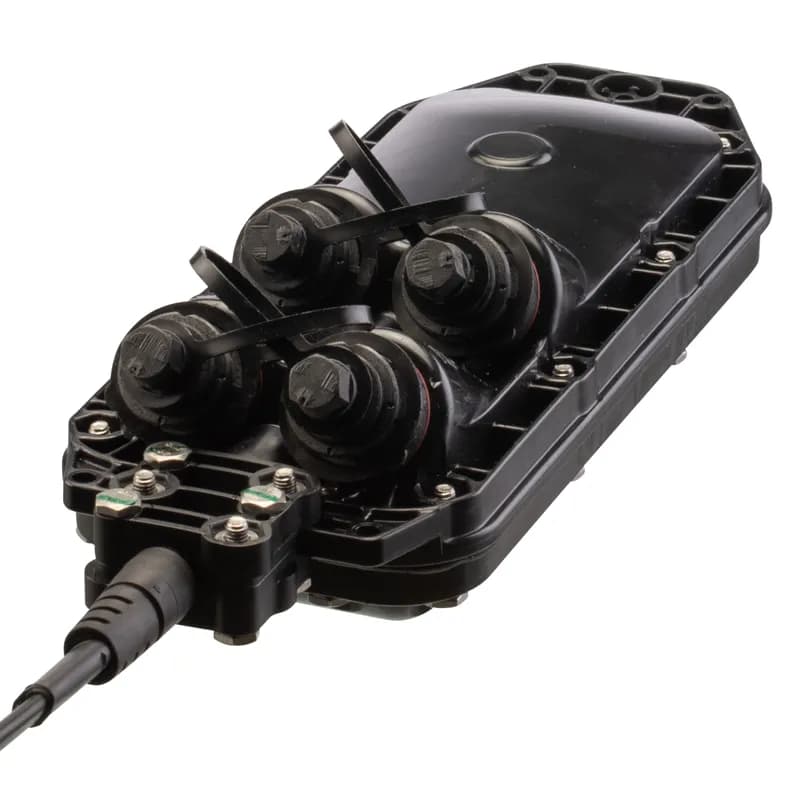

4-Port Multi-port Service Terminal suitable for connection with drop cables with hardened outdoor SC/APC connectors. Fully sealed and IP68 protected. Unterminated stub type dielectric cable, 200 ft.
P-MST-4T-200
4-Port Multi-port Service Terminal suitable for connection with drop cables with hardened outdoor SC/APC connectors. Fully sealed and IP68 protected. Unterminated stub type toneable cable, 200 ft.
P-MST-4D-500
4-Port Multi-port Service Terminal suitable for connection with drop cables with hardened outdoor SC/APC connectors. Fully sealed and IP68 protected. Unterminated stub type dielectric cable, 500 ft.
Frequently Asked Questions
What are the available port configurations?
The Multiport Service Terminal is available in 4, 8, and 12 port configurations.
What is the maximum operating temperature?
The maximum operating temperature is +70°C (+158°F).
What is the minimum operating temperature?
The minimum operating temperature is -40°C (-40°F).
What mounting options are available?
Mounting options include handhole, pedestal, pole, or strand.
What is the maximum deployment distance?
The maximum deployment distance supported is 500 feet.
What types of cable are compatible?
Compatible cable types include flat dielectric and flat toneable cables.
What is the humidity tolerance?
The terminals can operate in relative humidity from 5% to 100%, condensing.
What is the return loss for connectors?
The typical return loss for connectors is -65 dB.
What is the attenuation for single ports?
The maximum attenuation for single ports is 0.4 dB.
What is the flammability rating?
The product is designed to meet or exceed a flammability rating of 94 5VA.
How to Install the Multiport Service Terminal (P-MST-4D-500)
This guide provides step-by-step instructions for installing and configuring the Multiport Service Terminal (P-MST-4D-500) for optimal performance.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Cable ties, O-ring lubricant
- Mount the Multiport Service Terminal Mounting Case (MC)
Secure the MC to the chosen mounting surface (pole, strand, or pedestal) using appropriate screws. Ensure it is level and firmly attached.
- Install the Multiport Service Terminal (MST) into the MC
Insert the cable end of the MST into the MC and push the front of the MST until the security latch snaps closed.
- Connect the drop cable to the MST optical port
Unscrew the dust cap from the drop connector, inspect and lubricate the O-rings if necessary, then align and insert the drop cable connector into the MST optical port until it is securely in place.
