Contact for Pricing
Minimum Qty: 5
Multiplier: 1
*Contact for lower quantities*

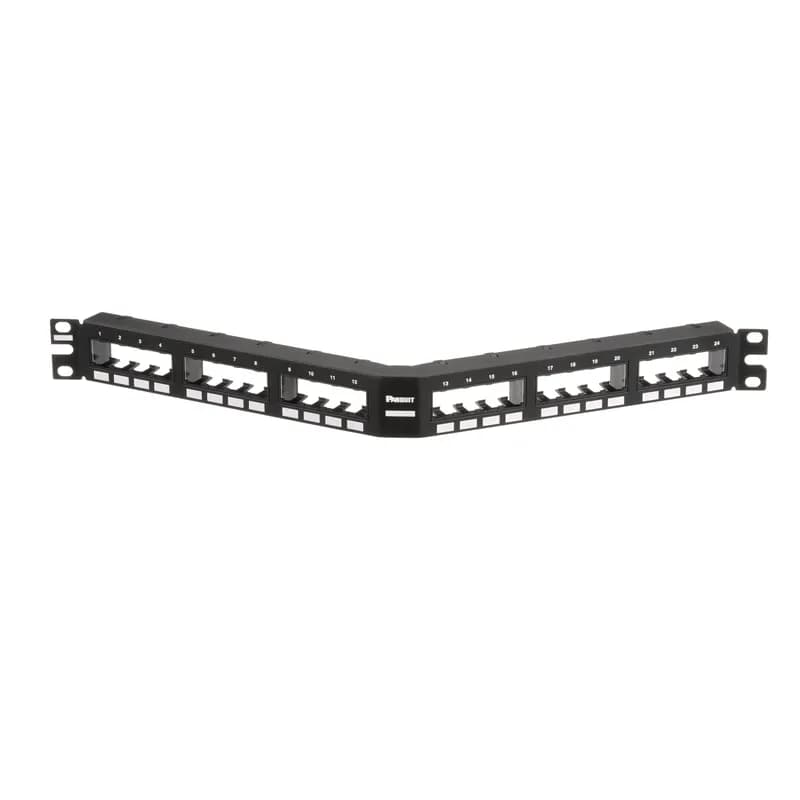

Overview
- Accepts up to 24 unshielded keystone modules
- Flush mount design for 19-inch and 23-inch racks/cabinets
- Angled ports for enhanced access and reduced bend radius
- Durable black cold-rolled steel construction
- Supports modularity for flexible network configurations
Specifications
Application | NA |
Color* | Black |
Depth | 0.82 In. |
Material | CRS |
Number Of Ports | 24 |
Patch Panel Style* | Angled |
Standard | RoHS Compliant |
Type | Flush Mounted Patch Panel |
Width | 19 In. |
Package Dimensions (L x W x H) | 19.95 IN x 3.35 IN x 6.4 IN |
Package Weight (Imperial) | 1.49 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
How many mating cycles are the connectors rated for?
The connectors are rated for 2500 mating cycles, ensuring long-lasting performance.
What is the maximum operating temperature for the connectors?
The connectors are rated for a maximum operating temperature of 75º C.
What is the warranty period for the Mini-Com Solution?
The Mini-Com Solution comes with a 25-year system warranty when used end-to-end.
What is the smallest diameter for Category 6A patch cords?
The smallest diameter for Category 6A patch cords is 0.185 inches (4.7mm).
What is the rated bandwidth for Category 6 cable?
Category 6 cable has a rated bandwidth of 550 MHz.
What types of applications does the copper cabling support?
The copper cabling supports applications such as Power over Ethernet, wireless connectivity, intelligent lighting, security cameras, and audio/visual systems.
What is the installation method for the Mini-Com jacks?
The Mini-Com jacks feature tool-less termination, which maintains conductor twist for reliable performance.
How many times can the Mini-Com jacks be reterminated?
The Mini-Com jacks can be reterminated up to 20 times.
What is the compatibility of the NetKey jack modules?
NetKey jack modules are designed for compatibility with any keystone opening.
What safety features do the connectors have?
The connectors feature integrated arc suppression technology for enhanced safety.

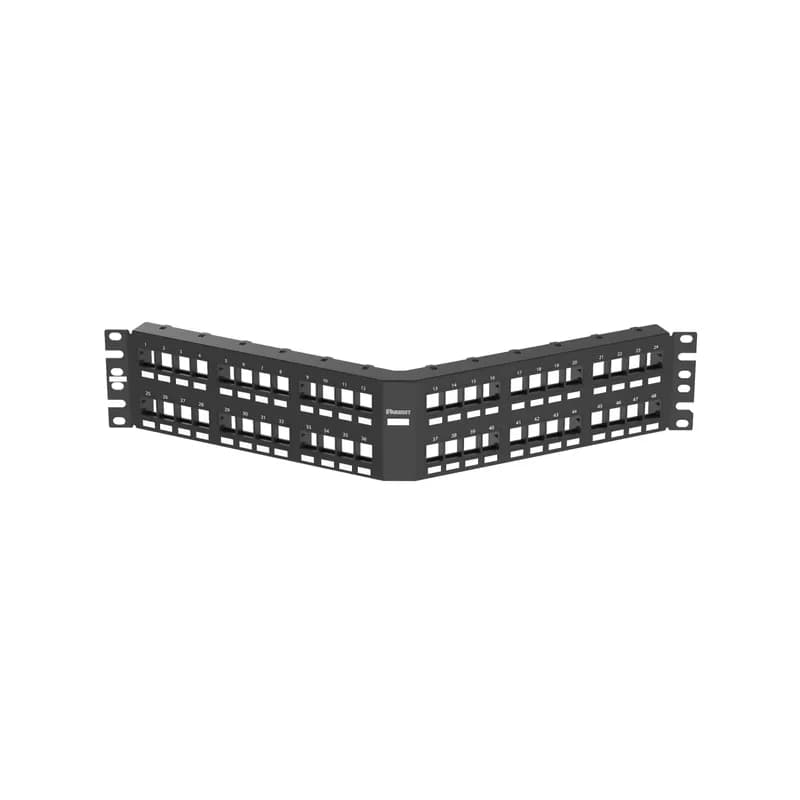

How to Install the NKPPA48FMY Patch Panel
Step-by-step guide for mounting and wiring the NKPPA48FMY patch panel in a network setup.
Estimated time: 30m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Cable ties, Terminal connectors
- Mount the patch panel
Secure the NKPPA48FMY patch panel to the designated rack or wall using the provided mounting screws. Ensure the panel is level and firmly attached.
- Connect the cables
Route the network cables into the patch panel, ensuring they flow directly into the vertical cable managers on the corresponding side of the panel. Use cable ties to secure the cables neatly.
- Verify connections
Use a multimeter to check the continuity of each cable connection to ensure proper connectivity. Confirm that all connections are secure and functioning.
