Contact for Pricing
Overview

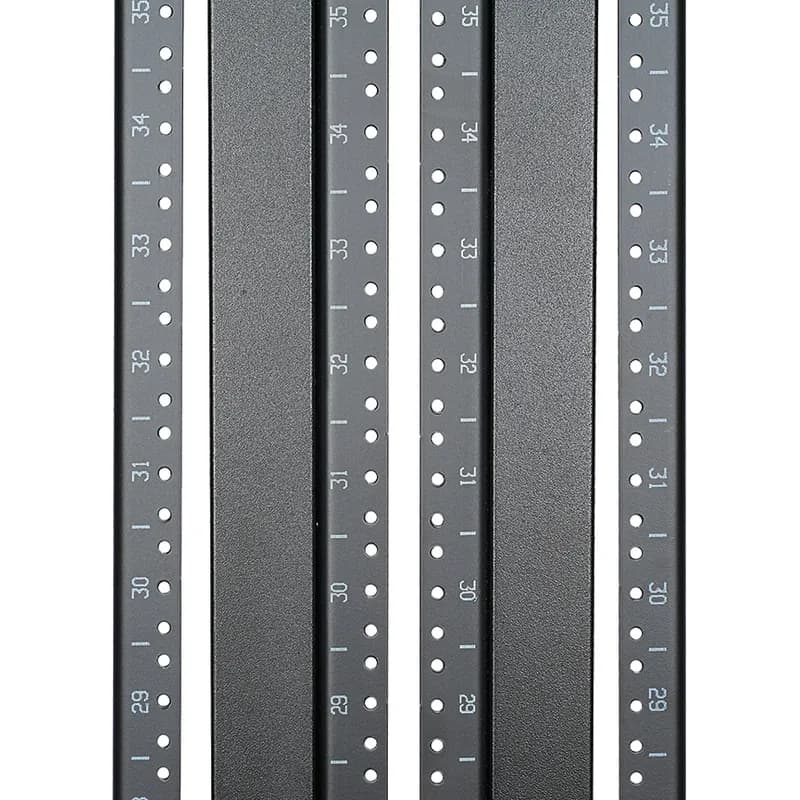

- Designed for 48 RU cabinets with N-Type front and rear cage nuts
- Compatible with standard 19-inch racks
- High-quality cage nuts ensure stable and aligned equipment mounting
- Simplifies installation and maintenance in data centers and server rooms
- Manufactured in the US with UNSPSC code 43223301
Specifications
Color | Black |
Depth | 1.22 In. |
Standard | RoHS Compliant |
Type | Equipment Rail |
Width | 2.6 In. |
Package Dimensions (L x W x H) | 103 IN x 44 IN x 7 IN |
Package Weight (Imperial) | 233.69 lbs |
UICFFP4BL

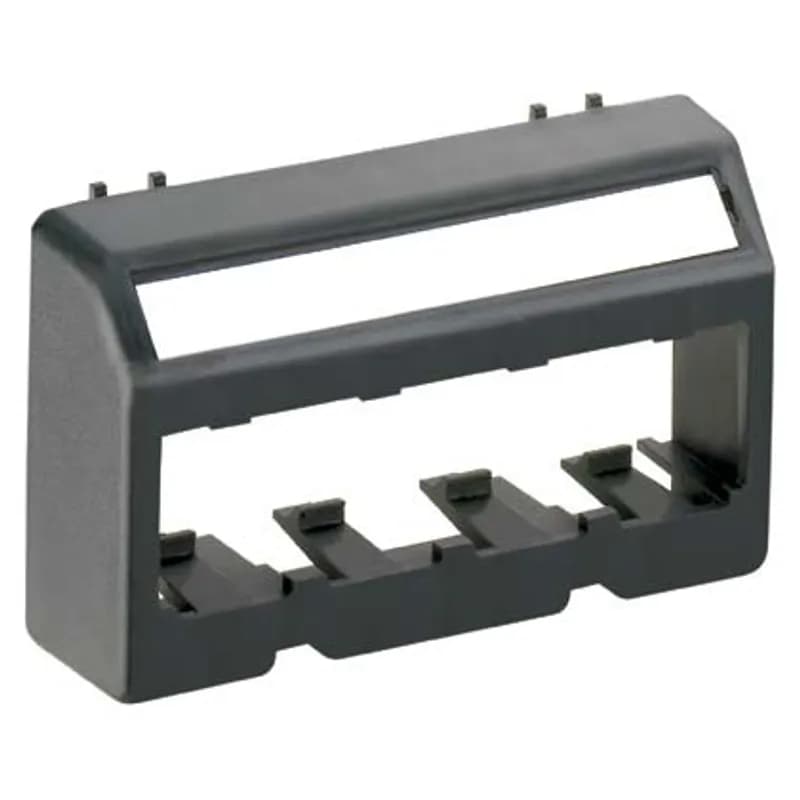

Mini Com Ultimate ID modular furniture faceplate for industry standard opening, accepts four Mini-Com Modules. Black.
AVPDB

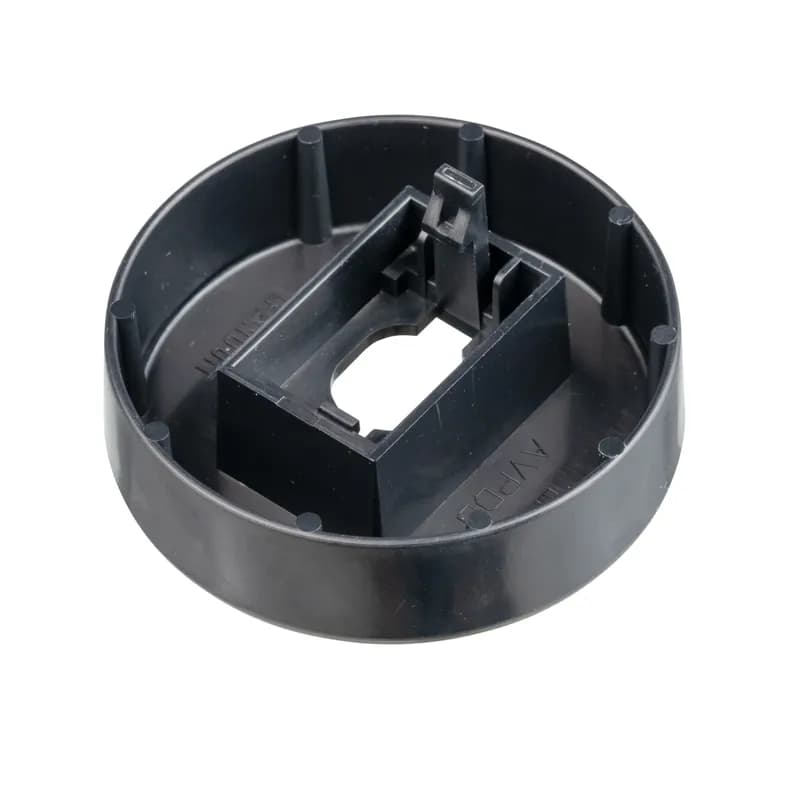

The Audio/video punchdown base is used to assist in terminating Mini-Com S-Video and RCA Punchdown Modules.
NK4MFABL

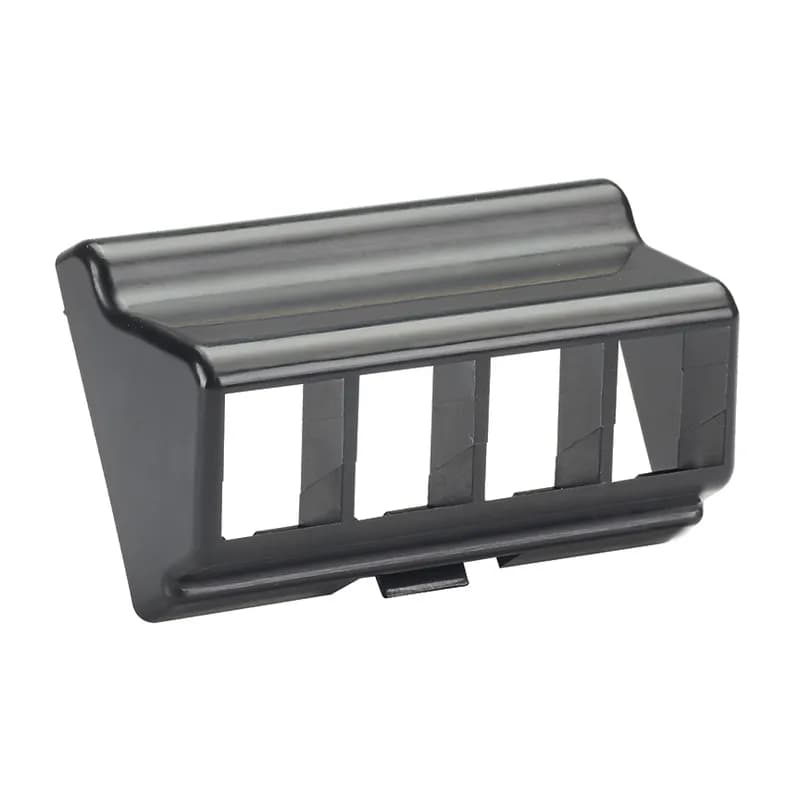

NetKey sloped modular furniture faceplate for industry standard opening, accepts four keystone modules. Black.
IAEBHC6
The IndustrialNet Cat 6 UTP bulkhead RJ45 coupler module with protective cap is ideal in manufacturing environments. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water.
CFPE1BLY
The Mini-Com Executive Series Faceplate accepts one Mini-Com Module. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate includes a raised rail design on the outer edge of the frame, has a label pocket for easy identification, and is black.
NK4VSFBL
NetKey single gang, sloped vertical faceplate , accepts four keystone module, includes label and label cover. Black.
CFPE2BLY
The Mini-Com Executive Series Faceplate accepts two Mini-Com Modules. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate includes a raised rail design on the outer edge of the frame, has a label pocket for easy identification, and is black.
CFPE6BLY
The Mini-Com Executive Series Faceplate accepts six Mini-Com Modules. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate includes a raised rail design on the outer edge of the frame, has a label pocket for easy identification, and is black.
CFPE4BLY
The Mini-Com Executive Series Faceplate accepts four Mini-Com Modules. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate includes a raised rail design on the outer edge of the frame, has a label pocket for easy identification, and is black.
NK4MFBL

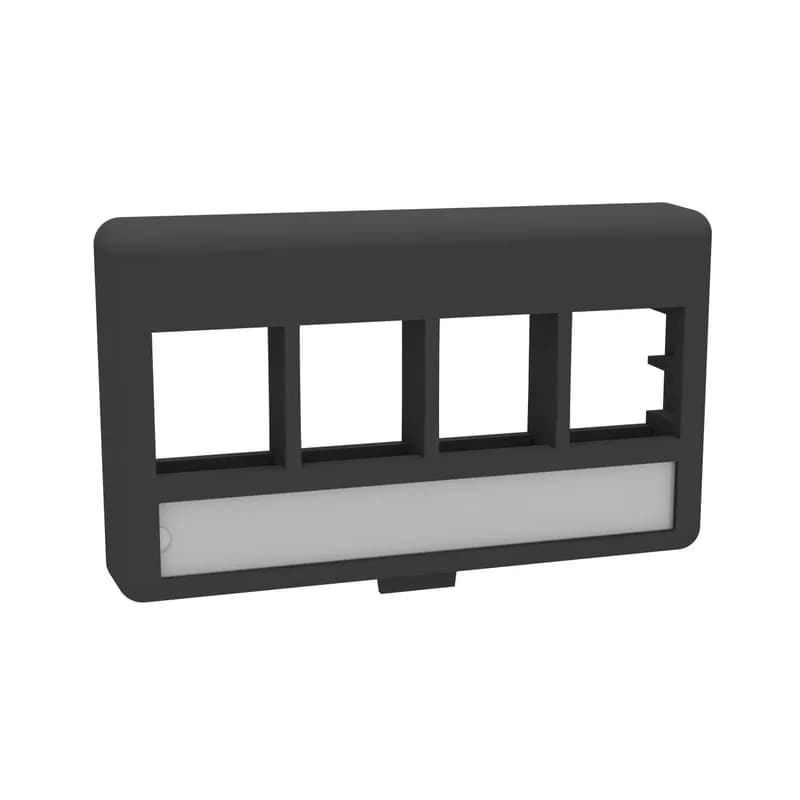

The NetKey Modular Furniture Faceplate accepts four keystone modules. The faceplate mounts to a standard office furniture opening. The faceplate can be identified with an adhesive label and is black.
NK4MFLBL
The NetKey Modular Furniture Faceplate accepts four keystone modules. The faceplate mounts to a standard office furniture opening. The faceplate includes label and cover, and is black.How to Install the N2RCFR Equipment Rails
This guide provides step-by-step instructions for installing the N2RCFR equipment rails in a cabinet, ensuring proper alignment and secure mounting.
Estimated time: 30m
Tools needed:
T25 Torx bit, 15mm socket wrench, Screwdriver
Supplies needed:
Countersunk Torx screws, M10 Hex screws, Equipment Rail Mount Nuts, Shims
- Remove existing front rails
Use a T25 Torx bit to remove the existing screws and take out the front equipment rails from the cabinet posts.
- Install front equipment rails
Attach the new front equipment rails to the front cabinet posts using 5 countersunk Torx screws per rail. Use shims as necessary to ensure proper EIA spacing.
- Install rear equipment rail mounting brackets
Secure 4 equipment rail mounting brackets to the installed equipment rails using 3 countersunk Torx screws per bracket, ensuring the countersunk holes are oriented correctly.
- Fasten equipment rail mount nuts
Locate the desired position for the equipment rail and insert 2 equipment rail mount nuts through the slots of the front-to-back beam. Fasten with M10 hex screws at the top and bottom, tightening to 30.0 +/- 5.0 N-m.
