Panduit K4M-BLD - Replacement cutter blade for GS4MT.
Panduit

K4M-BLD

UPC: 074983759156

Documents & Media
Installation Instructions

Contact for Pricing

Overview

The Panduit K4M-BLD is a direct replacement cutter blade designed for the Panduit GS4MT cable management tool. Manufactured in the US, this blade ensures precise and clean cuts for professional cable installation and maintenance. It maintains the reliable performance expected from Panduit's cable management solutions, guaranteeing dependable cutting in industrial environments. This blade is compatible exclusively with the GS4MT tool.
  • Direct replacement cutter blade
  • Designed for Panduit GS4MT tool
  • Ensures precise and clean cuts
  • Manufactured in the US
  • Reliable performance for industrial environments

Specifications

Application
Replacement cutter blade for GS4MT
Cable Tie Width
0.31
Color
Black
Material
Metal
Material
Steel
Material
NA
Series
GS4MT
Special Features
Accessory
Standard
NA
Tensile Strength
NA lb
Type
Blade Replacement Kit
Package Dimensions (L x W x H)
5 IN x 4.6 IN x 0.45 IN
Package Weight (Imperial)
0.055 lbs
The cable tie tool in black installs miniature, intermediate, and standard cross-section cable ties. This inexpensive, maintenance-free, all-purpose tool has an ergonomic handle design and short handle span. It also features a top-loading feature for right- or left-handed users. Weighing 2.5 oz. (71g), it is sold individually.

STS2

The cable tie tool in black installs miniature, intermediate, and standard cross-section cable ties. This inexpensive, maintenance-free, all-purpose tool has an ergonomic handle design and short handle span. It also features a top-loading feature for right- or left-handed users. Weighing 2.5 oz. (71g), it is sold individually.

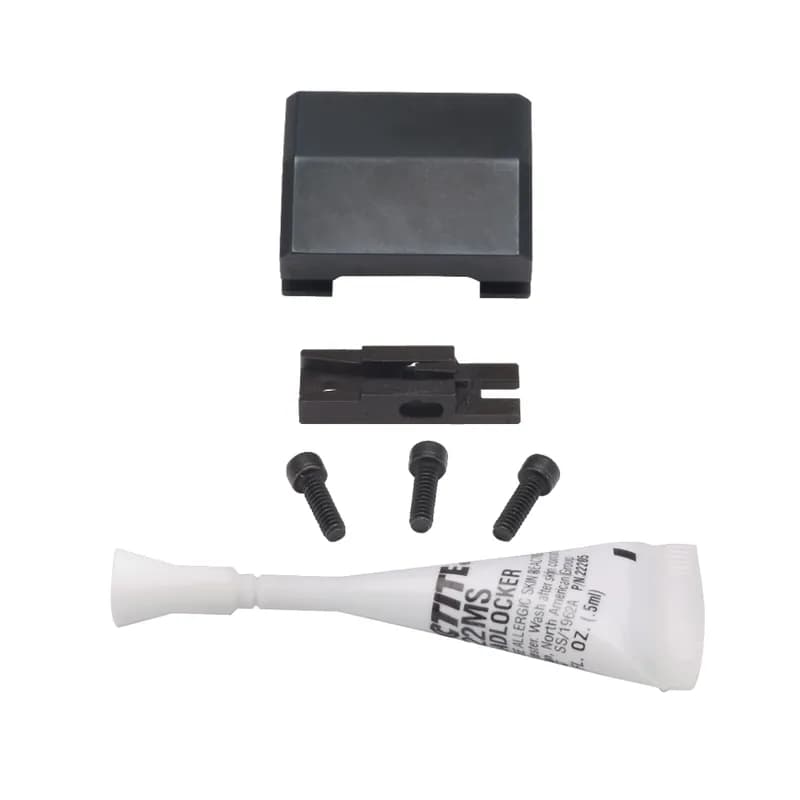

Change over kits allow for installation of heavy cross section MRT and MRS style ties, and MRT double wrapped style ties in MTRTH tools.

KMTRTH

Change over kits allow for installation of heavy cross section MRT and MRS style ties, and MRT double wrapped style ties in MTRTH tools.

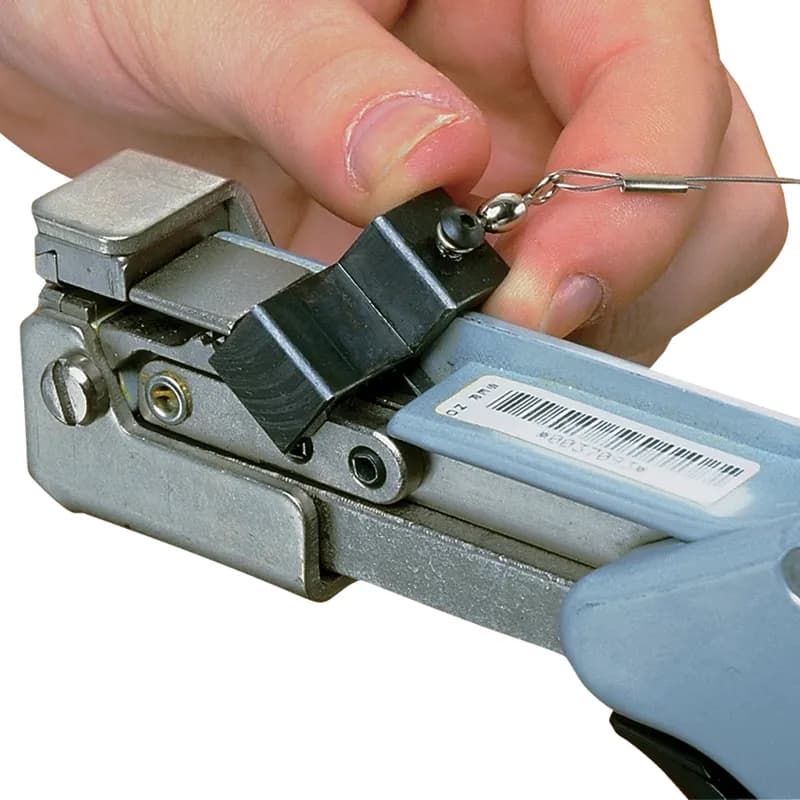

Cut-off accessory. Use this accessory with GS4MT tool to cut MBH or MBS continuous banding. Accessory drops in place for use.

CAMT

Cut-off accessory. Use this accessory with GS4MT tool to cut MBH or MBS continuous banding. Accessory drops in place for use.
Panduit offers the most preferred hand-operated tools in the industry. The PPTEH Pneumatic Cable Tie Hand Tool has an ergonomic design that promotes worker safety, reduces downtime, and increases productivity. For use with light-heavy, heavy and extra heavy cross section cable ties. Blue trigger handle with gray metal housing. Weight is 52 ounces (1474 g) and is sold individually.

PPTEH

Panduit offers the most preferred hand-operated tools in the industry. The PPTEH Pneumatic Cable Tie Hand Tool has an ergonomic design that promotes worker safety, reduces downtime, and increases productivity. For use with light-heavy, heavy and extra heavy cross section cable ties. Blue trigger handle with gray metal housing. Weight is 52 ounces (1474 g) and is sold individually.
Panduit offers the most preferred hand-operated tools in the industry. The GS4H-E Ergonomic Cable Tie Hand Tool is easy to operate and has tool-controlled tension that provides a flush cut-off and speeds up installation to lower installed cost. Promotes worker safety, reduces downtime, and increases productivity. For Standard. Heavy-Standard, Light-Heavy, and Heavy Cross Section Cable Ties. Red trigger handle and selector knob with light gray metal housing. Weight, 16 ounces (454 grams).

GS4H-E

Panduit offers the most preferred hand-operated tools in the industry. The GS4H-E Ergonomic Cable Tie Hand Tool is easy to operate and has tool-controlled tension that provides a flush cut-off and speeds up installation to lower installed cost. Promotes worker safety, reduces downtime, and increases productivity. For Standard. Heavy-Standard, Light-Heavy, and Heavy Cross Section Cable Ties. Red trigger handle and selector knob with light gray metal housing. Weight, 16 ounces (454 grams).

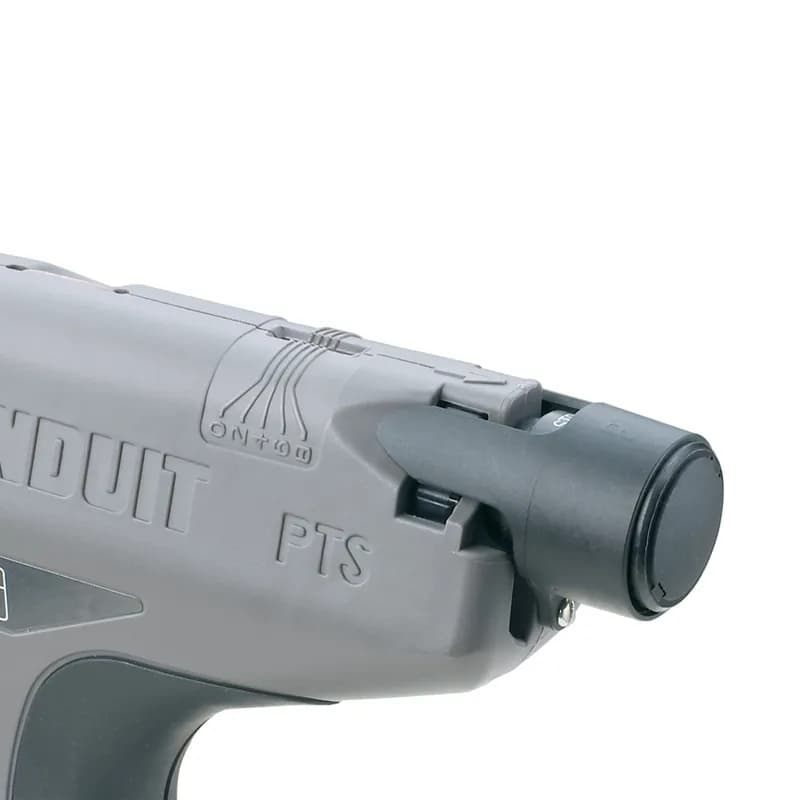

Tension Locking Kit used with PTS and PTH tools. Cover to prevent changing tension settings.

KPTSTL

Tension Locking Kit used with PTS and PTH tools. Cover to prevent changing tension settings.
The cable tie tool in red installs standard, heavy-standard, light-heavy, and heavy cross-section cable ties. It is an inexpensive, maintenance-free, all-purpose tool with an ergonomic handle design and short handle span. It also features a top-loading feature for right- or left-handed users. Weighing 2.5 oz. (71g), it is sold individually.

STH2

The cable tie tool in red installs standard, heavy-standard, light-heavy, and heavy cross-section cable ties. It is an inexpensive, maintenance-free, all-purpose tool with an ergonomic handle design and short handle span. It also features a top-loading feature for right- or left-handed users. Weighing 2.5 oz. (71g), it is sold individually.

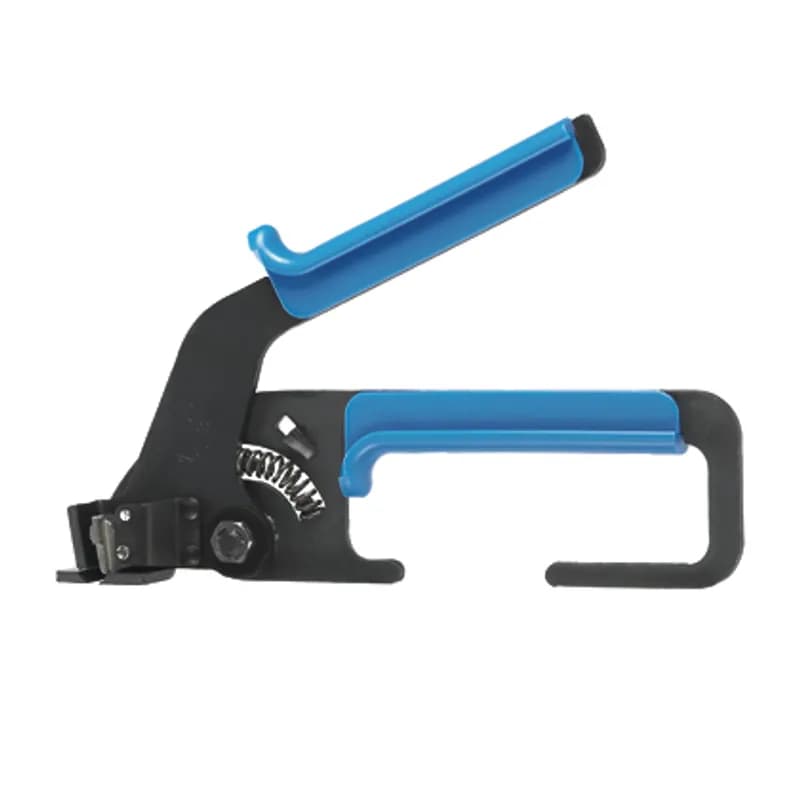

The cable tie tool in blue (handles) installs light-heavy, heavy, and extra-heavy cross-section cable ties. It features durable all-steel construction with comfortable rubber handles. Weighing 9 oz. (256g), it is sold individually.

ST3EH

The cable tie tool in blue (handles) installs light-heavy, heavy, and extra-heavy cross-section cable ties. It features durable all-steel construction with comfortable rubber handles. Weighing 9 oz. (256g), it is sold individually.

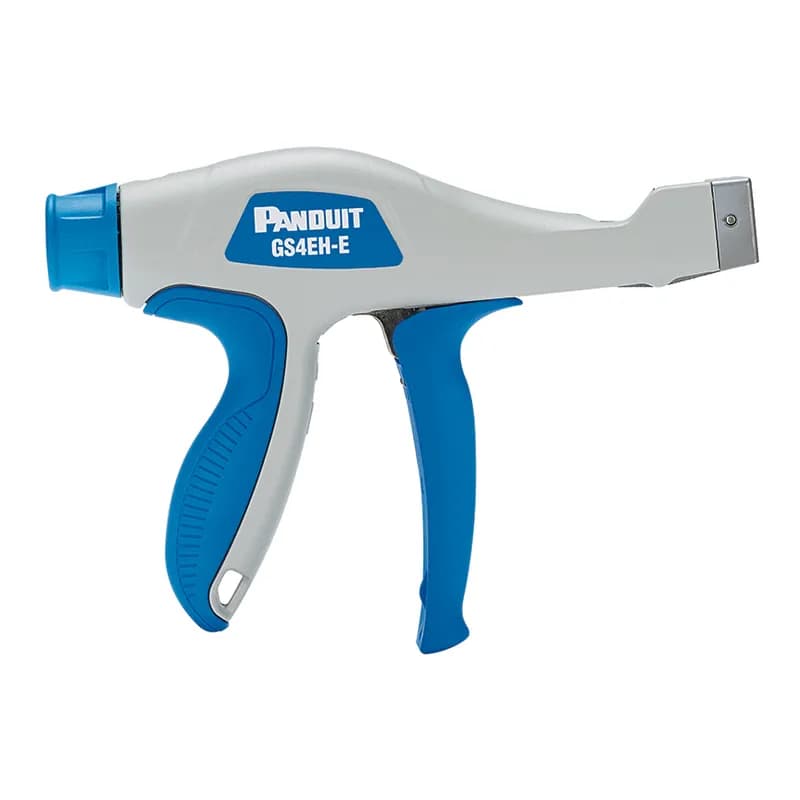

Panduit offers the most preferred hand-operated tools in the industry. The GS4H-E Ergonomic Cable Tie Hand Tool is easy to operate and has tool-controlled tension that provides a flush cut-off and speeds up installation to lower installed cost. Promotes worker safety, reduces downtime, and increases productivity. For Light-Heavy, Heavy and Extra-Heavy Cross Section Cable Ties. Blue trigger handle and selector knob with light gray metal housing. Weight, 16 ounces (454 grams).

GS4EH-E

Panduit offers the most preferred hand-operated tools in the industry. The GS4H-E Ergonomic Cable Tie Hand Tool is easy to operate and has tool-controlled tension that provides a flush cut-off and speeds up installation to lower installed cost. Promotes worker safety, reduces downtime, and increases productivity. For Light-Heavy, Heavy and Extra-Heavy Cross Section Cable Ties. Blue trigger handle and selector knob with light gray metal housing. Weight, 16 ounces (454 grams).
The PBTMT Battery Powered Installation Tool provides an ergonomic and compact, lightweight body, reducing operator fatigue. The automatic flush cut off enhances productivity with the easy one-hand installation. The cable tie side entry allows for quick side entry of the cable tie into the tool for increased speed installation. The 360-degree rotating head allows access to confined spaces, and the controlled tension mechanism provides consistent installations.

PBTMT

The PBTMT Battery Powered Installation Tool provides an ergonomic and compact, lightweight body, reducing operator fatigue. The automatic flush cut off enhances productivity with the easy one-hand installation. The cable tie side entry allows for quick side entry of the cable tie into the tool for increased speed installation. The 360-degree rotating head allows access to confined spaces, and the controlled tension mechanism provides consistent installations.
Installation tool for use with the following stainless steel cross section retained tension ties:Type MRT and MRS: Heavy and double wrapped heavy

MTRTH

Installation tool for use with the following stainless steel cross section retained tension ties:Type MRT and MRS: Heavy and double wrapped heavy

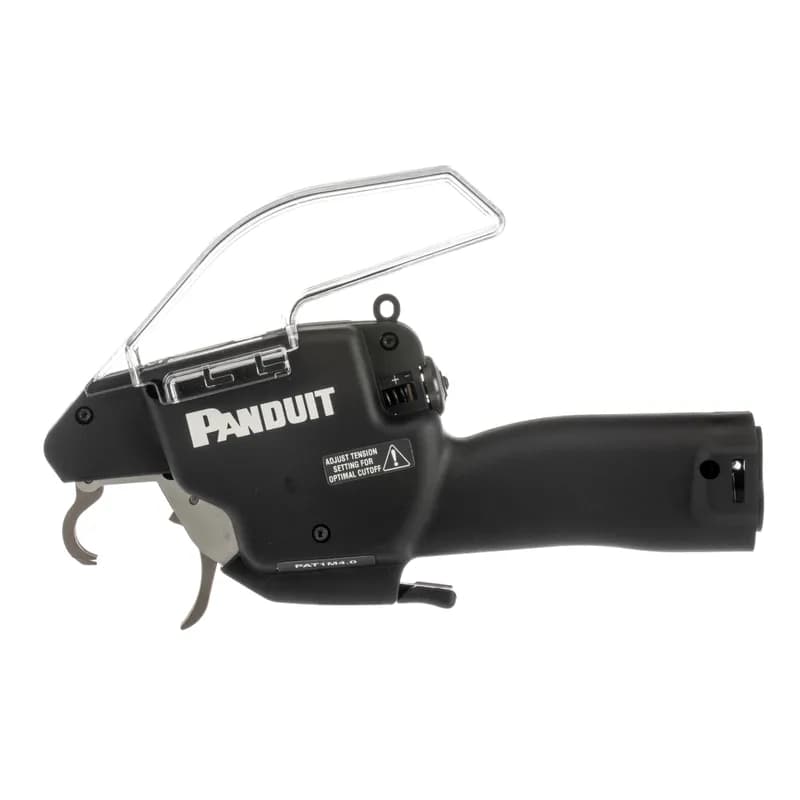

Panduit s Automatic Cable Tie Installation Systems offer multiple sizes of ergonomic, lightweight tool heads. The PAT1M4.0 reduces operator fatigue and repetitive motion injuries. It can be operated either right or left-handed and has a cable tie tip collector bin. Housing is made of plastic, is black in color and is designed to be used with PLT1M-XMR Panduit reel-fed cable ties. Use with PDM4.0 and PHM-series transfer hose.

PAT1M4.0

Panduit s Automatic Cable Tie Installation Systems offer multiple sizes of ergonomic, lightweight tool heads. The PAT1M4.0 reduces operator fatigue and repetitive motion injuries. It can be operated either right or left-handed and has a cable tie tip collector bin. Housing is made of plastic, is black in color and is designed to be used with PLT1M-XMR Panduit reel-fed cable ties. Use with PDM4.0 and PHM-series transfer hose.

How to Replace the Blade in the K4M-BLD Tool

This guide provides step-by-step instructions for safely replacing the blade in the K4M-BLD tool.

Estimated time: 15m

Tools needed:

Torx T-9 wrench

Supplies needed:

New blade, Removeable Threadlocker, Torx screws

  1. Remove the existing blade

    Hold the tool with the nose pointing upward. Remove the two existing screws and loosen screw (A). Lift out the cutter cap (B) at the bottom and retain it. Remove the existing blade (1) and discard it.

  2. Install the new blade

    While holding the tool with the nose pointing upward, place the new blade (1) into position. Ensure the sharp edge of the blade (1) is facing toward the cutter cap (B).

  3. Secure the cutter cap

    Insert the top end of the cutter cap (B) into the blade housing and lower it into place. Apply Removeable Threadlocker to the two new Torx screws (2) and fasten the cutter cap (B) using the Torx T-9 wrench. Tighten screw (A) while pushing upward on the cutter cap (B).
