Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview
- 10-foot length for extensive cable runs
- 2x2 channel design for organized routing
- Separates, routes, and protects fiber optic and copper cables
- Compatible with Panduit fittings, brackets, HC2YL10 cover, and FBC2X2YL coupler
- Supports TIA/EIA and ISO/IEC structured cabling standards
Specifications
Application | Data Centers and Telco Central Offices |
Height | 1.92 in |
Height | 48.768 mm |
Material | Polymer |
Material | PVC |
Series | FiberRunner |
Size | 2x2 Channel, 10 feet |
Standard | RoHS Compliant, UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
Type | Fiber Routing Channel with Cover |
Width | 2.1693 in |
Width | 55.1002 mm |
Package Dimensions (L x W x H) | 121.2 IN x 13 IN x 3 IN |
Package Weight (Imperial) | 3.24 lbs |

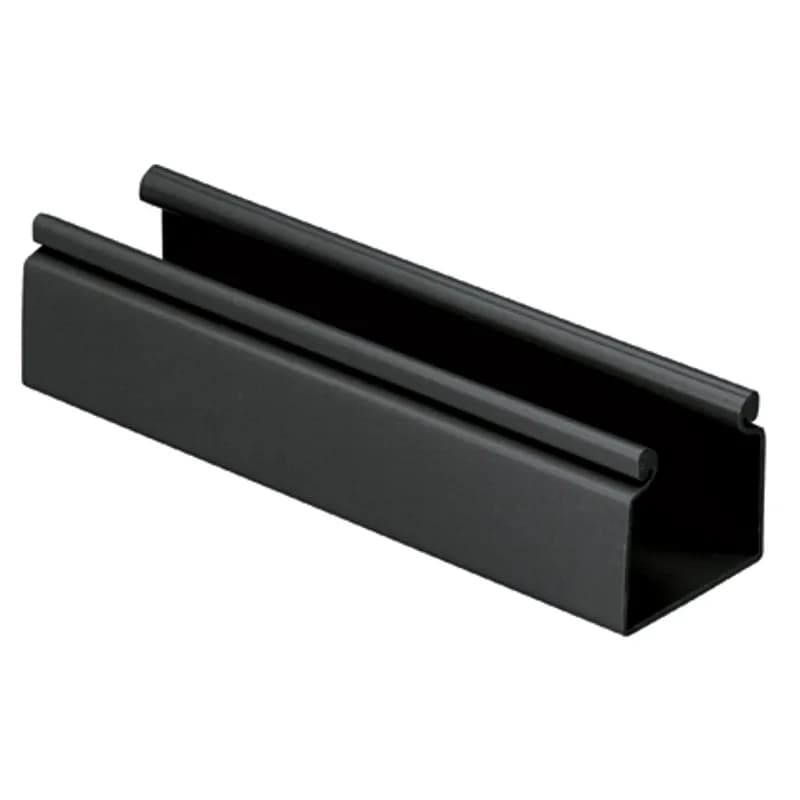

H2X2BL10
The FiberRunner 2x2 Channel can be used with fittings and brackets to design a routing system to separate, route, and protect fiber optic and high-performance copper cables. Accepts hinged cover HC2YL10. Additional supports will be required when used in horizontal applications. Use QuikLock Coupler FBC2X2YL to attach channel and/or fittings. Fittings and covers sold separately. The channel comes in 10 feet lenghts
HS2X2BL10NM
The FiberRunner 2x2 Hinged Channel is used in cable routing systems to carry the cables horizontally throughout the system. It accepts the hinged cover. The QuikLock Coupler can be used to attach channel and/or fittings. The channel comes in 10 feet lengths
FR4X4BL10
The FiberRunner 4x4 Channel can be used with fittings and brackets to design a routing system to separate, route, and protect fiber optic and high-performance copper cables. The cable routing channel accepts cable retainers or a hinged cover. The channel comes in 10 feet in lenght
FR12X4BL10
The FiberRunner 12x4 Channel can be used with fittings and brackets to design a routing system to separate, route, and protect fiber optic and high-performance copper cables. The cable routing channel accepts cable retainers or a hinged cover. The channel is 10 feet in length

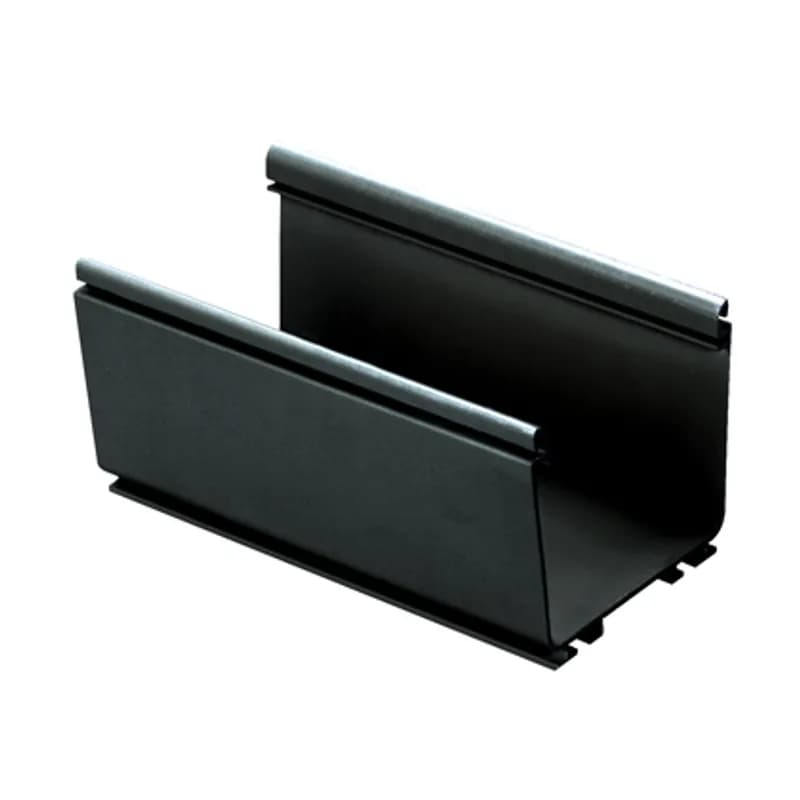

FR4X4BL2
Used to carry the cables horizontally throughout the system. Accepts hinged cable retainers FRCR4BL, hinged cover FRHC4BL2 or split hinged cover FRSHC4BL2. Use QuikLock Couplers FRBC4X4BL to attach channel and/or fittings.
HS2X2YL10NM
The FiberRunner 2x2 Hinged Channel is used in cable routing systems to carry the cables horizontally throughout the system. It accepts the hinged cover. The QuikLock Coupler can be used to attach channel and/or fittings. The channel comes in 10 feet lengths
H2X2LYL2
The FiberRunner 2x2 Hinge Slotted Channel is used to carry the cables vertically to the front or the sides of equipment racks throughout the system. The channel is 2mm.
HS2X2LYL2NM
The FiberRunner 2x2 Hinged Channel is used to carry the cables horizontally throughout the system. The channel is 2mm.
FR12X4BL2
Used to carry the cables horizontally throughout the system. Accepts cable retainers FRCR12BL or hinged cover FRHC12BL2. Use QuikLock Coupler FRBC12X4BL to attach channel and/or fittings.
FR24X4YL10
Used to carry cables horizontally throughout the system. Use QuikLock Coupler FRBC24X4YL to attach channel and/or fittings.
FR24X4BL10
Used to carry cables horizontally throughout the system. Use QuikLock Coupler FRBC24X4BL to attach channel and/or fittings.
FRCR6LBL-X
The FiberRunner 6x4 Cable Retainer holds cable in the channel when cover is not used. It is 150mm x 100mm. This includes 10 per package.Frequently Asked Questions
What is the primary use of FiberRunner Channels?
FiberRunner Channels provide robust pathway options for routing fiber optic and high-performance copper cable in various applications.
What material are FiberRunner Channels made from?
FiberRunner Channels are made from PVC material.
What is the standard length of FiberRunner Channels?
FiberRunner Channels are available in 10 feet (3 meter) lengths.
What are the flammability ratings for FiberRunner Channels?
The flammability rating for FiberRunner Channels is 94 V-0.
What approvals do FiberRunner Channels have?
FiberRunner Channels are UL Listed to 2024 Optical fiber Cable routing assemblies and compliant with Telcordia GR-63-CORE Network Equipment Building Systems Level 3.
What are the available colors for FiberRunner Channels?
The available colors for FiberRunner Channels are Yellow (YL) and Black (BL).
What are the dimensions of the H2X2YL10 channel?
The H2X2YL10 channel is 2x2 in and 10 feet long. The 'YL' in the part number indicates it is yellow.
Do FiberRunner Channels offer cable protection?
Yes, FiberRunner Channels hold and protect cables. Optional hinged and split covers can add an additional layer of protection.
How do FiberRunner Channels save installation time?
The 10-foot lengths reduce the need for additional joiners or couplers, saving time and labor during installation.
Are covers available for FiberRunner Channels?
Yes, optional hinged covers and split covers are available to provide an additional layer of protection when necessary.
